PP 675B22 ES (961420060-00) - Poulan Pro Walk-Behind Mower (2008-12) Repair Parts Parts Diagram

Walk-Behind Mower

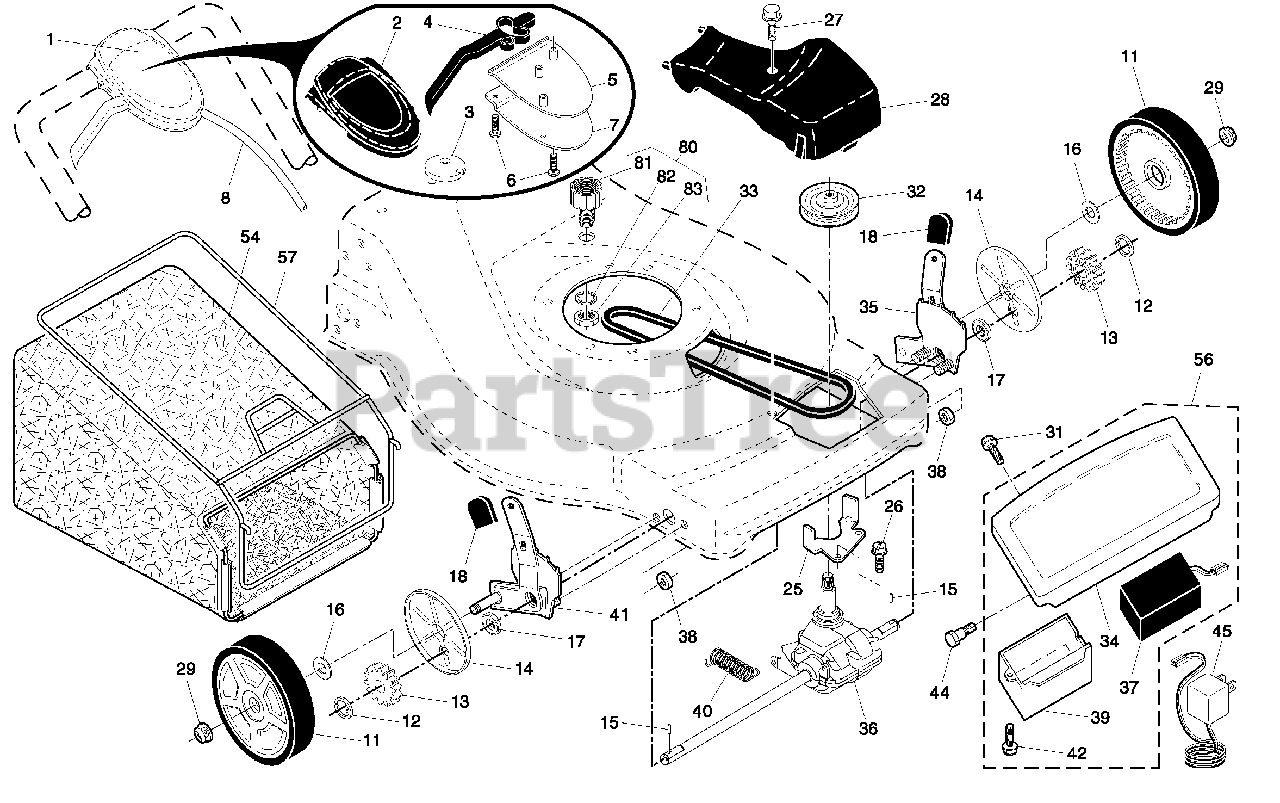

Repair Parts Parts Diagram

  • Title
1

Electrolux/AYP 425580

Drive Control Assembly
(Superseded to 532425580)

Note: (Includes Cable)

$93.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 406260X460

Cover, Drive Control, Top
(Superseded to 532406260)

$

$

Not available

3

Electrolux/AYP 406262

Pulley
(Superseded to 532406262)

$

$

Not available

4

Electrolux/AYP 425583

Lever, Drive Control
(Superseded to 532425583)

$26.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 406261X460

Cover, Drive Control, Bottom
(Superseded to 532406261)

$24.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 181698

Screw, Torx Head #8 x 5/8
(Superseded to 532181698)

$7.49

$

In Stock, Qty 6

0

7

Electrolux/AYP 400235X479

Mounting Bracket, Drive Control
(Superseded to 532400723)

$

$

Not available

8

Electrolux/AYP 406259

Cable, Drive Control
(Superseded to 532406259)

$53.99

$

In Stock, Qty 10

0

11

Electrolux/AYP 193912X460

Wheel & Tire Assembly
(Superseded to 581009202)

$24.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 12000058

E-Ring
(Superseded to 812000058)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 403849

Gear, Pinion
(Superseded to 532403849)

$6.99

$

In Stock, Qty 8

0

14

Electrolux/AYP 189403

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, Qty 5

0

15

Electrolux/AYP 404845

Pawl, Drive
(Superseded to 532404845)

$5.99

$

In Stock, Qty 5

0

16

Electrolux/AYP 67725

Washer, Flat 3/8
(Superseded to 532067725)

$7.49

$

In Stock, Qty 20+

0

17

Electrolux/AYP 191039

Bearing, Wheel Adjuster
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

18

Electrolux/AYP 196401

Selector Knob
(Superseded to 532196401)

$4.99

$

In Stock, only 4 left!

0

25

Electrolux/AYP 404843X004

Belt Keeper
(Superseded to 532431711)

$

$

Not available

26

Electrolux/AYP 163409

Screw, Hi-Lo Thread
(Superseded to 532163409)

$7.49

$

In Stock, Qty 6

0

27

Electrolux/AYP 175262

Pan Head Tapping Screw #10-24 x 2-3/4
(Superseded to 532175262)

$7.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 401271X418

Drive Cover
(Superseded to 532419195)

$

$

Not available

29

Electrolux/AYP 409148

Locknut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 141841

Screw, Trimplate
(Superseded to 532141841)

$7.49

$

In Stock, only 2 left!

0

32

Electrolux/AYP 194018

Drive Pulley
(Superseded to 532443262)

$13.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 196857

V-Belt
(Superseded to 532196857)

$17.99

$

In Stock, only 4 left!

0

34

Electrolux/AYP 411190

Trimplate
(Superseded to 532411190)

$37.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 424201

Kit, Wheel Adjuster, LH
(Superseded to 532438485)

Note: (Includes Knob and Bearing)

$44.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 404834

Gearcase Assembly, Complete
(Superseded to 532404834)

$

$

Not available

37

Electrolux/AYP 189589

Battery
(Superseded to 584353901)

$103.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 73800400

Locknut, Hex 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 186237

Battery Box
(Superseded to 532186237)

$7.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 406558

Spring
(Superseded to 532406558)

$8.99

$

In Stock, Qty 7

0

41

Electrolux/AYP 424200

Kit, Wheel Adjuster, RH
(Superseded to 532438486)

Note: (Includes Knob and Bearing)

$

$

Not available

42

Electrolux/AYP 17411308

Screw, Battery Box
(Superseded to 817411308)

$6.49

$

In Stock, only 1 left!

0

44

Electrolux/AYP 175551

Screw, Trimplate
(Superseded to 532175551)

$4.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 190097

Charger, Battery
(Superseded to 597186301)

$37.99

$

In Stock, Qty 7

0

54

Electrolux/AYP 424681

Grassbag Assembly
(Superseded to 583414901)

$

$

Not available

56

Electrolux/AYP 191252

Trimplate, Battery Box and Battery Assembly
(Superseded to 532191252)

$78.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 411952

Frame, Grassbag
(Superseded to 532411952)

$

$

Not available

80

Electrolux/AYP 421114

Kit, Water Washout
(Superseded to 532421114)

$24.99

$

In Stock, only 2 left!

0

81

Electrolux/AYP 419735

Fitting, Hose, Water Washout
(Superseded to 532421114)

$24.99

$

In Stock, only 2 left!

0

82

Electrolux/AYP 415585

Washer, Lock, Internal Tooth
(Superseded to 532415585)

$4.99

$

In Stock, only 2 left!

0

83

Electrolux/AYP 415586

Locknut, Hex, with O-Ring
(Superseded to 532415586)

$6.49

$

In Stock, only 4 left!

0
