PP 6000 (PP6000-A1) - Kawasaki Generator PISTON/CRANKSHAFT Parts Diagram

Generator

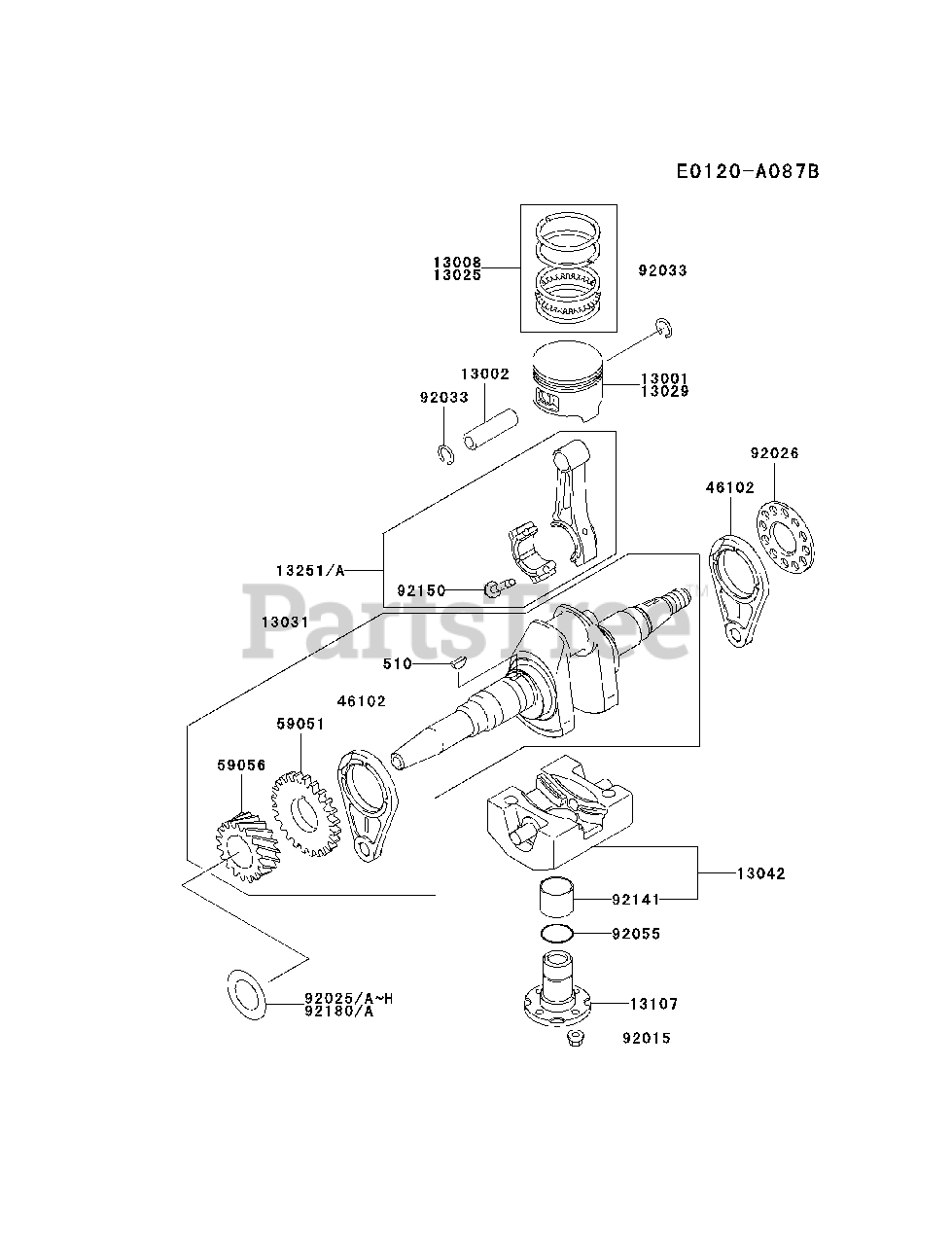

PISTON/CRANKSHAFT Parts Diagram

  • Title
13001

Kawasaki 13001-2135

PISTON-ENGINE
(Superseded to 13001-2177)

$84.99

$

Usually ships in 2-5 days

0

13002

Kawasaki 13002-2079

PIN-PISTON

$11.99

$

Usually ships in 2-5 days

0

13008

Kawasaki 13008-6028

RING-SET-PISTON

$50.99

$

In Stock, Qty 5

0

13025

Kawasaki 13025-2098

RING-SET-PISTON L,0.5

$52.99

$

In Stock, Qty 6

0

13029

Kawasaki 13029-2118

PISTON-ENGINE L,0.5
(Superseded to 13029-2127)

$101.99

$

In Stock, Qty 7

0

13031

Kawasaki 13031-2073

CRANKSHAFT-COMP

$

$

Not available

13042

Kawasaki 13042-6014

WEIGHT
(Superseded to 13042-2117)

$160.99

$

Usually ships in 2-5 days

0

13107

$21.99

$

In Stock, Qty 7

0

13251

Kawasaki 13251-2057

ROD-ASSY-CONNECTING,U/S=0.50

$104.99

$

Usually ships in 2-5 days

0

13251A

Kawasaki 13251-6051

ROD-ASSY-CONNECTING
(Superseded to 13251-6059)

$104.99

$

Usually ships in 2-5 days

0

$49.99

$

Usually ships in 2-5 days

0

59051

$

$

Not available

59056

Kawasaki 59056-2906

GEAR-HELICAL

$

$

Not available

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92025

Kawasaki 92025-2145

SHIM,T=1.18

$3.99

$

Usually ships in 2-5 days

0

92025A

Kawasaki 92025-2146

SHIM,T=1.25

$6.49

$

Usually ships in 2-5 days

0

92025B

Kawasaki 92025-2147

SHIM,T=1.32

$3.99

$

Usually ships in 2-5 days

0

92025C

Kawasaki 92025-2148

SHIM,T=1.39

$3.99

$

Usually ships in 2-5 days

0

92025D

Kawasaki 92025-2149

SHIM,T=1.46

$3.99

$

Usually ships in 2-5 days

0

92025E

Kawasaki 92025-2150

SHIM,T=1.53

$3.99

$

Usually ships in 2-5 days

0

92025F

Kawasaki 92025-2151

SHIM,T=1.60

$3.99

$

Usually ships in 2-5 days

0

92025G

Kawasaki 92025-2152

SHIM,T=1.67

$3.99

$

In Stock, only 1 left!

0

92025H

Kawasaki 92025-2153

SHIM,T=1.74

$5.99

$

Usually ships in 2-5 days

0

92026

$23.99

$

Usually ships in 2-5 days

0

92033

$2.99

$

In Stock, only 3 left!

0

92055

$1.49

$

In Stock, Qty 20+

0

92141

Kawasaki 92141-2112

BEARING-PLANE

$7.99

$

In Stock, only 1 left!

0

92150

$

$

Not available

92180

Kawasaki 92180-2015

SHIM,T=1.11

$5.49

$

Usually ships in 2-5 days

0

92180A

Kawasaki 92180-2016

SHIM,T=1.81

$5.99

$

Usually ships in 2-5 days

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
