PP 5500 P - Poulan Pole Saw (2008-10) Product Complete Parts Diagram

Pole Saw

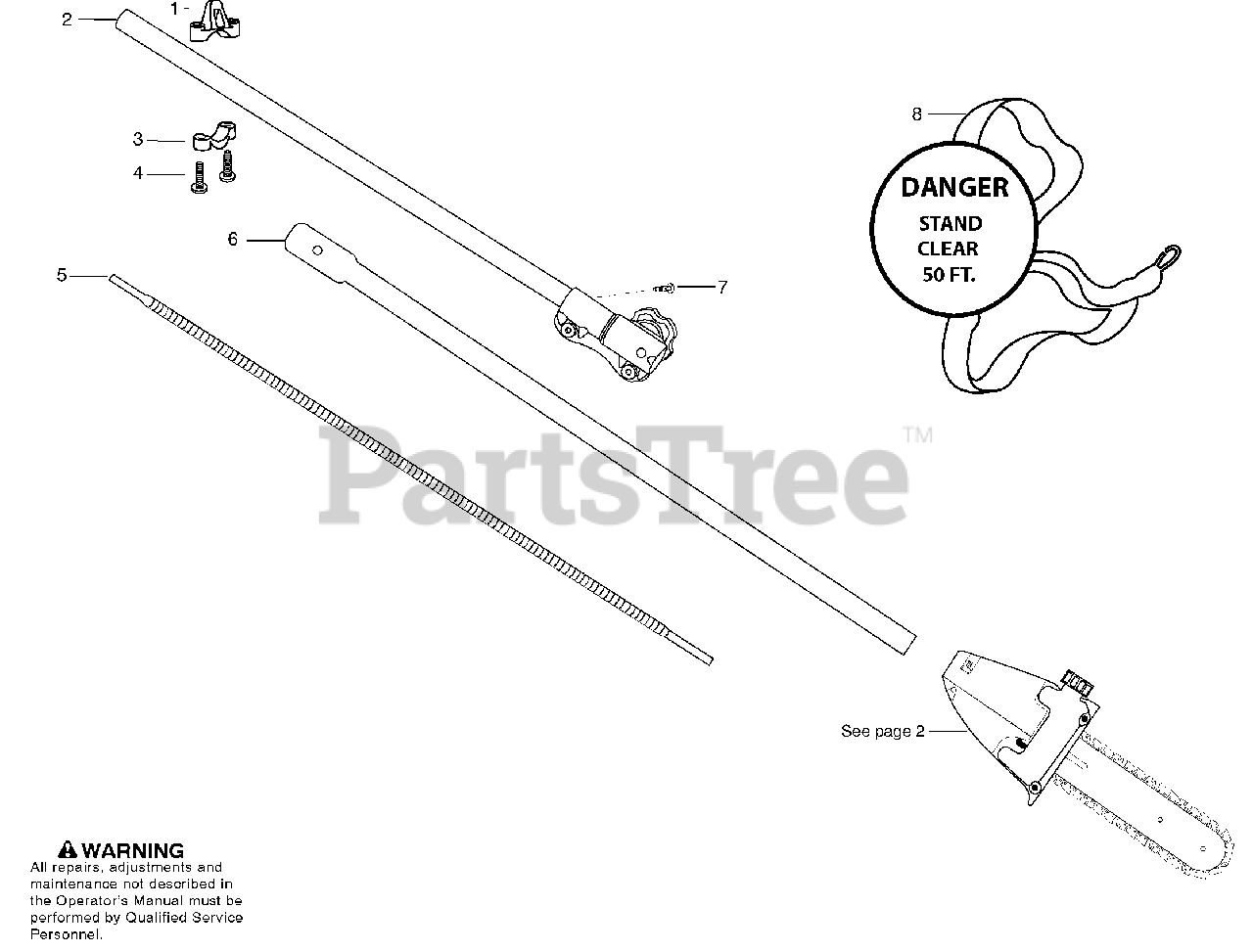

Product Complete Parts Diagram

  • Title
1

Electrolux/AYP 530055392

Clamp - Harness Upper
(Superseded to 530071605)

$4.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 545210101

Assy. - Middle Shaft
(Superseded to 576472802)

Note: (Incl. 7)

$40.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 530055395

Clamp - Harness Lower
(Superseded to 530071605)

$4.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 530016406

Screw (#10 plastite)

$6.49

$

In Stock, only 1 left!

0

5

Electrolux/AYP 530096218

Flexshaft - Lower
(Superseded to 545173003)

$10.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 545219202

Assy. - Lower Shaft

$24.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530016344

Screw (12-24 x .480)

$

$

Not available

8

Electrolux/AYP 530094408

Strap - Shoulder
(Superseded to 530094417)

$

$

Not available

8

Electrolux/AYP 545186790

Manual

Note: Not Shown

$

$

Not available

8

Electrolux/AYP 545003066

Decal-shaft warning

Note: Not Shown

$

$

Not available

8

Electrolux/AYP 530150031

Hanger-Att.(90 deg.)

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 530031159

Wrench-hex (5/32)

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0
