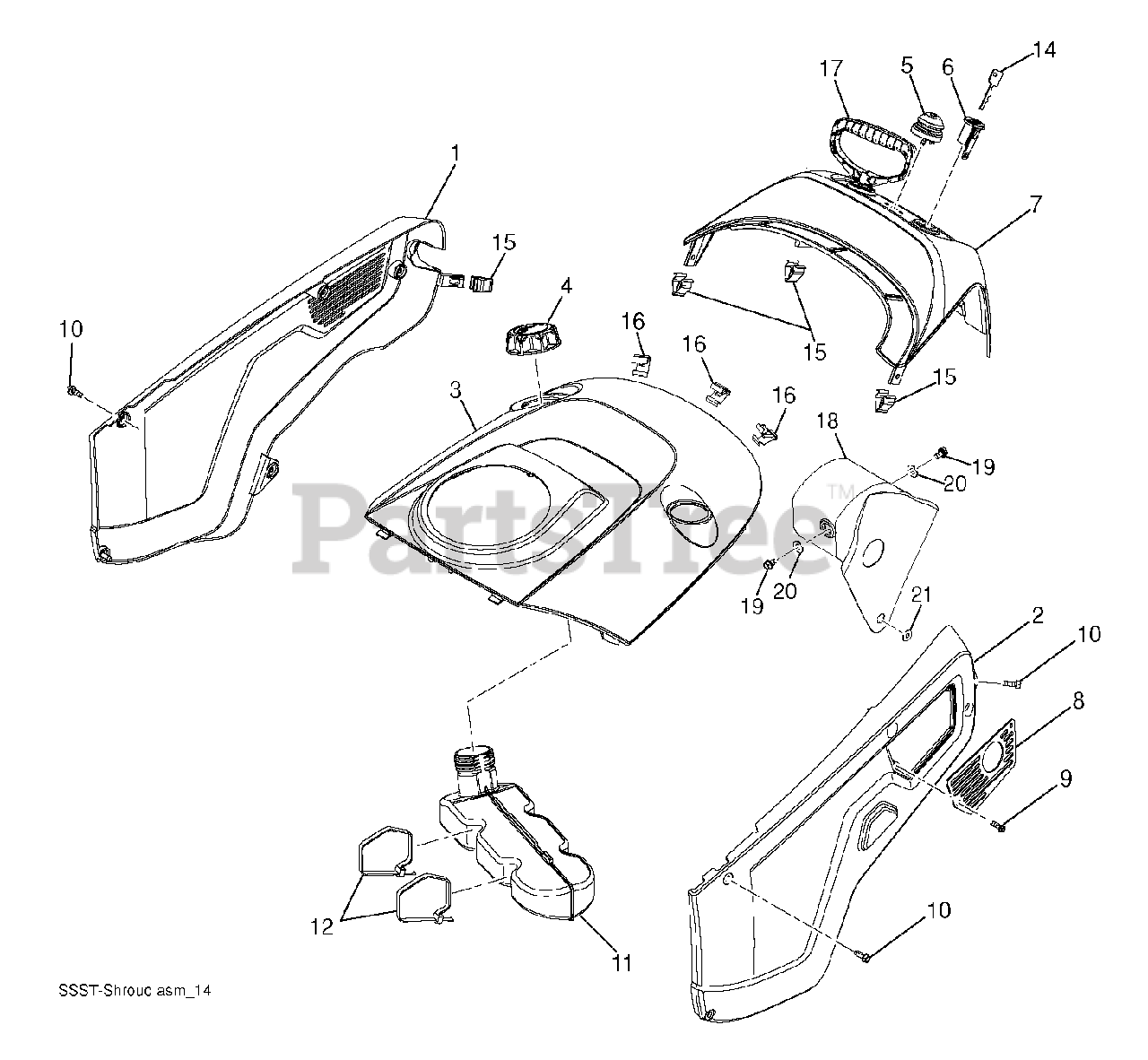

PP 521 ES (961880006-00) - Poulan Pro Snow Thrower (2011-06) SHROUD Parts Diagram

Snow Thrower

SHROUD Parts Diagram

  • Title

1

Poulan 532443924

$

$

Not available

2

Poulan 532443925

(Superseded to 583760601)

$46.99

$

Usually ships in 3-10 days

0

3

Poulan 532443926

(Superseded to 583760501)

$54.99

$

Usually ships in 3-10 days

0

4

Poulan 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

5

Poulan 532436235

RP BULB.PRIMER
(Superseded to 532424949)

$13.99

$

Usually ships in 3-10 days

0

6

Poulan 532435407

KEY HOUSING
(Superseded to 532424954)

$28.99

$

In Stock, Qty 6

0

7

Poulan 532437648

TOP.REAR.COVER

$

$

Not available

8

Poulan 532437631

PLATE.EXHAUST.PNT.
(Superseded to 580833501)

$7.49

$

Usually ships in 3-10 days

0

9

Poulan 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

10

Poulan 532442250

SCREW.PAN.HD.TORX.1/4-20X.750

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 532434880

TANK.FUEL.ASM
(Superseded to 580982601)

$121.99

$

Usually ships in 3-10 days

0

12

Poulan 532146848

TIE.CABLE.24.5X.29.NYLON.WHITE

$6.99

$

Usually ships in 3-10 days

0

14

Poulan 532435409

KEY
(Superseded to 532443059)

$13.99

$

Usually ships in 3-10 days

0

15

Poulan 532196688

CLIPS

$4.99

$

In Stock, only 3 left!

0

16

Poulan 532434868

CLIP

$6.99

$

In Stock, only 2 left!

0

17

Poulan 532436276

RP HANDLE.STARTER
(Superseded to 532443899)

$17.99

$

Usually ships in 3-10 days

0

18

Poulan 532437619

COVER.MUFFLER.136CC/208CC.LCT

$

$

Not available

19

Poulan 532438039

BOLT.M6-1.0X16MM

$4.99

$

Usually ships in 3-10 days

0

20

Poulan 819091016

WASHER
(Superseded to 596582301)

$3.99

$

In Stock, Qty 5

0

21

Poulan 819131316

WASHER

$4.99

$

In Stock, Qty 5

0
