PP 5001 (88830) - Snapper 17" Power Plug, 5hp Main Deck Assembly Parts Diagram

17" Power Plug, 5hp

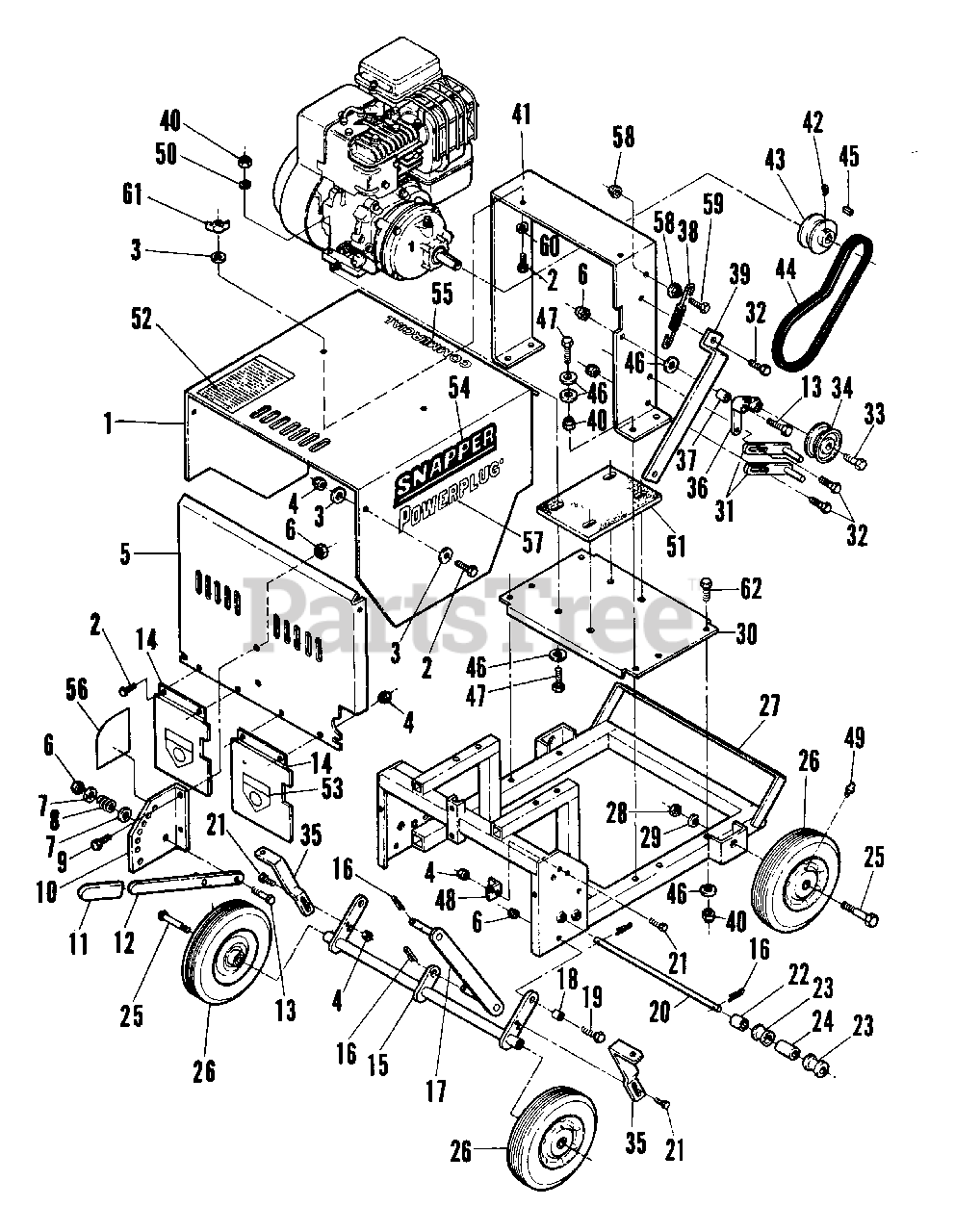

Main Deck Assembly Parts Diagram

  • Title

1

Snapper 7077386

HOOD W/DECALS

$

$

Currently unavailable

2

Snapper 7090072

CAPSCREW, 1/4" - 20 x 5/8" Hex. Hd.
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

3

Snapper 7091098

FLAT WASHER, 1/4"
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7076978

NYLOC NUT, 1/4" - 20 Hex.
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7076794

REAR GUARD

$

$

Currently unavailable

6

Snapper 7091299

NYLOC NUT, 3/8" - 16 Hex.
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7090517

FLAT WASHER, 3/8" Std.
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

8

Snapper 7076438

COMPRESSION SPRING

$

$

Not available

9

Snapper 7091304

CAPSCREW GR. 5, 3/8" - 16 x 1" Hex. Hd.
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

10

Snapper 7077384

HEIGHT GAUGE W/DECAL

$

$

Currently unavailable

11

Snapper 7076526

GRIP
(Superseded to 7076526YP)

$3.99

$

In Stock, only 1 left!

0

12

Snapper 7077385

ADJUSTMENT LEVER W/GRIP (76526)
(Superseded to 7077385YP)

$8.99

$

Usually ships in 2-12 days

0

13

Snapper 7091305

CAPSCREW GR. 5, 3/8" - 16 x 2" Hex. Hd.
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

In Stock, only 1 left!

0

14

Snapper 7077389

FLAP GUARD W/DECAL

$

$

Currently unavailable

15

Snapper 7076744

REAR AXLE

$

$

Currently unavailable

16

Snapper 7091598

COTTER PIN, 1/8" x 3/4"
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

17

Snapper 7076749

HEIGHT ADJUSTMENT LINK
(Superseded to 7076749YP)

$37.99

$

Usually ships in 2-12 days

0

18

Snapper 7076845

POWDERED METAL BUSHING
(Superseded to 7076845YP)

$5.99

$

Usually ships in 2-12 days

0

19

Snapper 7091328

CAPSCREW GR.5, 3/8" - 16 x 1 1/4" Hex. Hd.
(Superseded to 703871)

Note: Was 76941

$4.99

$

Usually ships in 2-12 days

0

20

Snapper 7076763

ROLLER ROD
(Superseded to 7076763YP)

$25.99

$

Usually ships in 2-12 days

0

21

Snapper 7091495

CAPSCREW, 1/4" - 20 x 3/4" Hex. Hd.
(Superseded to 703925)

Note: Was 76932

$4.49

$

In Stock, Qty 7

0

22

Snapper 7076766

SHORT SPACER

$

$

Not available

23

Snapper 7076764

ROLLER

$

$

Not available

24

Snapper 7076765

LARGE SPACER

$

$

Not available

25

Snapper 7076945

CAPSCREW,5/8"-11 x 3 1/4" Hex. Hd.

$

$

Currently unavailable

26

Snapper 7076064

10" WHEEL
(Superseded to 7076064YP)

$54.99

$

Usually ships in 2-12 days

0

27

Snapper 7076743

FRAME

$

$

Currently unavailable

28

Snapper 7090278

JAM NUT, 5/8" - 11 Hex.

$

$

Not available

29

Snapper 7090333

LOCK WASHER, 5/8"
(Superseded to 7090333YP)

$3.99

$

In Stock, only 1 left!

0

30

Snapper 7076755

ENGINE PLATE
(Superseded to 7076755YP)

$56.99

$

Usually ships in 2-12 days

0

31

Snapper 7076673

BELT GUIDE
(Superseded to 7076673YP)

$11.99

$

Usually ships in 2-12 days

0

32

Snapper 7091318

CAPSCREW, 5/16" - 18 x 3/4" Hex. Hd.
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 9

0

33

Snapper 7090730

CAPSCREW GR. 5, 3/8" - 16 x 1 3/4" Hex. Hd.

$

$

Not available

34

Snapper 7076500

PULLEY, Idler, 3/8" ID, 2.75" OD, 7/8" Wide
(Superseded to 7076500YP)

$29.99

$

Usually ships in 2-12 days

0

35

Snapper 7076802

SCRAPER

$

$

Currently unavailable

36

Snapper 7076781

IDLER ARM

$

$

Not available

37

Snapper 7076453

POWDERED METAL BUSHING

$

$

Not available

38

Snapper 7077250

SPRING
(Superseded to 7077250YP)

$15.99

$

Usually ships in 2-12 days

0

39

Snapper 7076803

BRACE

$

$

Not available

40

Snapper 7091298

NYLOC HEX. NUT, 5/16" - 18
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

41

Snapper 7076756

IDLER MOUNT SHROUD

$

$

Currently unavailable

42

Snapper 7076956

NYLOC SETSCREW, 5/16" - 18 x 3/8"
(Superseded to 5025061SM)

$3.99

$

Usually ships in 2-12 days

0

43

Snapper 7077387

DRIVE PULLEY W/SETSCREW (76956)

$

$

Not available

44

Snapper 7076779

BELT
(Superseded to 7076779YP)

$28.99

$

Usually ships in 2-12 days

0

45

Snapper 7010061

KEY, 3/16x3/16x1"
(Superseded to 7010061SM)

$4.49

$

Usually ships in 2-12 days

0

46

Snapper 7090692

FLAT WASHER, 5/16"
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

47

Snapper 7090669

CAPSCREW GR. 5, 5/16" - 18 x 1 3/4"
(Superseded to 7090669YP)

$4.49

$

In Stock, only 1 left!

0

48

Snapper 7076772

CABLE BRACKET

$

$

Currently unavailable

49

Snapper 7076998

STRAIGHT ZERK, 1/4" - 28
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

50

Snapper 7090187

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

51

Snapper 7076070

ENGINE PAD
(Superseded to 7076070YP)

$9.99

$

Usually ships in 2-12 days

0

52

Snapper 7077750

CAUTION DECAL

$

$

Currently unavailable

53

Snapper 7013010

WARNING DECAL
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 10

0

54

Snapper 7019249

SNAPPER DECAL

$

$

Currently unavailable

55

Snapper 7076682

COMMERCIAL DECAL

$

$

Currently unavailable

56

Snapper 7076799

DEPTH ADJ. DECAL

$

$

Currently unavailable

57

Snapper 7076792

POWERPLUG DECAL
(Superseded to 7076792YP)

$9.99

$

Usually ships in 2-12 days

0

58

Snapper 7091601

FLANGE NUT, 5/16" - 18
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

59

Snapper 7076935

CAPSCREW, 5/16" - 18 x 1 1/2" Hex. Hd.
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

60

Snapper 7090052

LOCKWASHER, 1/4"
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

61

Snapper 7090997

NYLON WINGNUT, 1/4" - 20
(Superseded to 7090997YP)

$3.49

$

Usually ships in 2-12 days

0

62

Snapper 7076938

CAPSCREW, 5/16" - 28 x 2 1/4" Hex. Hd.
(Superseded to 703177)

$3.49

$

Usually ships in 2-12 days

0
