PP 500 HK - Poulan Pro Walk-Behind Mower Drive Assembly Parts Diagram

Walk-Behind Mower

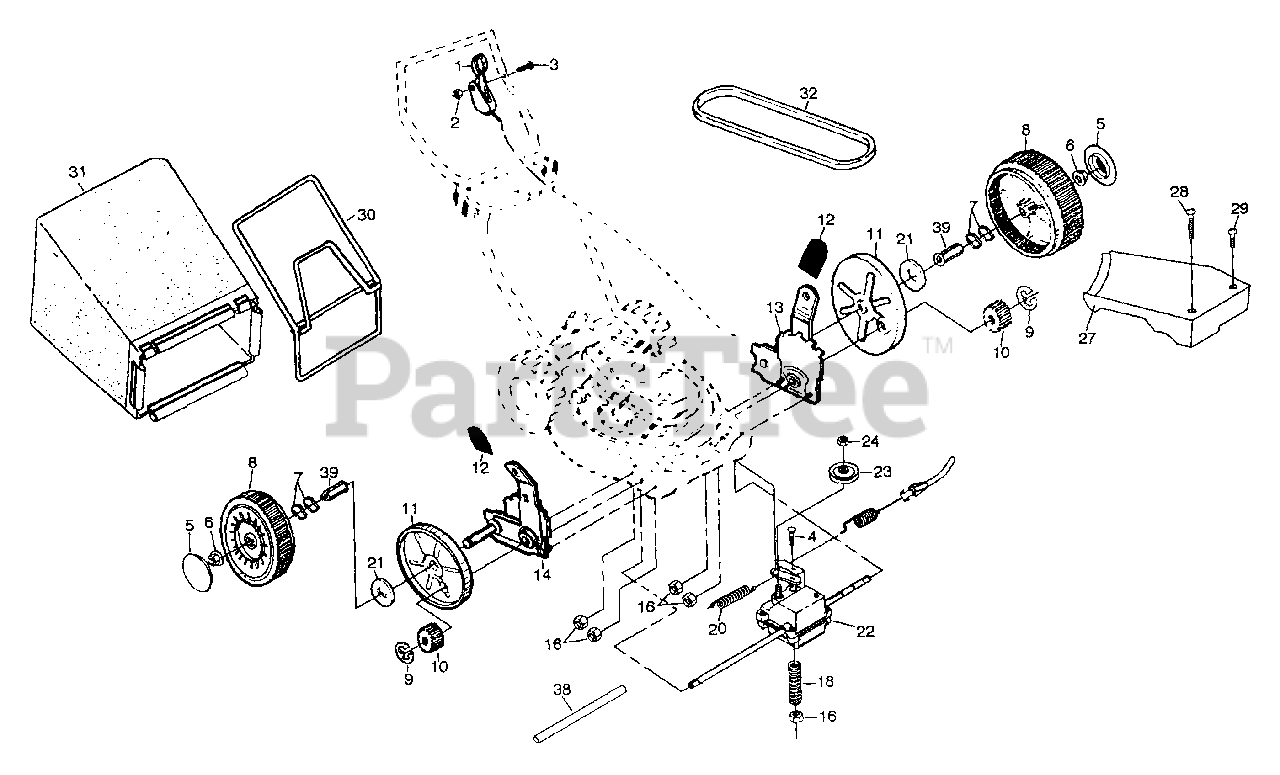

Drive Assembly Parts Diagram

  • Title

1

Poulan 532146323

Drive Control (AYP part number)
(Superseded to 532145755)

$53.99

$

In Stock, only 1 left!

0

2

Poulan 532063601

Locknut 1/4-20 (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 532344929

Hex Washer Head Screw 3/4-20 x 2.12

$

$

Not available

4

Poulan 532700875

Carriage Bolt 1/4-20 x 2 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

5

Poulan 532077400

Hubcap (AYP part number)

$7.49

$

In Stock, only 2 left!

0

6

Poulan 532083923

Flanged Locknut (AYP part number)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

7

Poulan 532057143

Wave Washer (AYP part number)
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

8

Poulan 532801156

Wheel & Tire Assembly
(Superseded to 532193144)

$

$

Not available

9

Poulan 812000058

E-ring (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 532137054

Pinion

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 532088080

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, Qty 5

0

12

Poulan 532701037

Selector Knob (AYP part number)

$5.99

$

In Stock, only 4 left!

0

13

Poulan 532151521

Wheel Adjuster Assembly (Left) (AYP part number)

$

$

Not available

14

Poulan 532151520

Wheel Adjuster Assembly (Right) (AYP part number)

$

$

Not available

16

Poulan 532063601

Locknut (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 532137090

Spring (AYP part number)

$6.49

$

In Stock, only 1 left!

0

20

Poulan 532075192

Spring

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 532067725

Washer 1/2 x 1-1/2 x .134 (AYP part number)

$7.49

$

In Stock, Qty 20+

0

22

Poulan 532702511

Gear Case Assembly
(Superseded to 532187211)

$109.99

$

Usually ships in 3-10 days

0

23

Poulan 532137052

Drive Pulley (AYP part number)
(Superseded to 532189407)

$

$

Not available

24

Poulan 532132010

Locknut (AYP part number)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

27

Poulan 532137081

Drive Cover (AYP part number)

$

$

Not available

28

Poulan 532146072

Pan Head Tapping Screw #10-24 x 2-3/4 (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

29

Poulan 532149746

Pan Head Tapping Screw #10-24 x 1-3/4 (AYP part number)

$7.49

$

In Stock, only 1 left!

0

30

Poulan 532088614

Catcher Frame

$54.99

$

Usually ships in 3-10 days

0

31

Poulan 532154509

Grass Bag (AYP part number)

$

$

Not available

32

Poulan 532137078

V-Belt
(Superseded to 532157769)

$17.99

$

Usually ships in 3-10 days

0

38

Poulan 532086012

Drive Shaft Cover (AYP part number)

$

$

Not available

39

Poulan 532088446

Wheel Bushing (AYP part number)

$

$

Not available

Poulan 532153703

Drive Cover Decal (AYP part number)

$

$

Not available
