PP 4620 AVX (952802169) - Poulan Pro Chainsaw (2012-01) CHASSIS BAR HANDLE Parts Diagram

Chainsaw

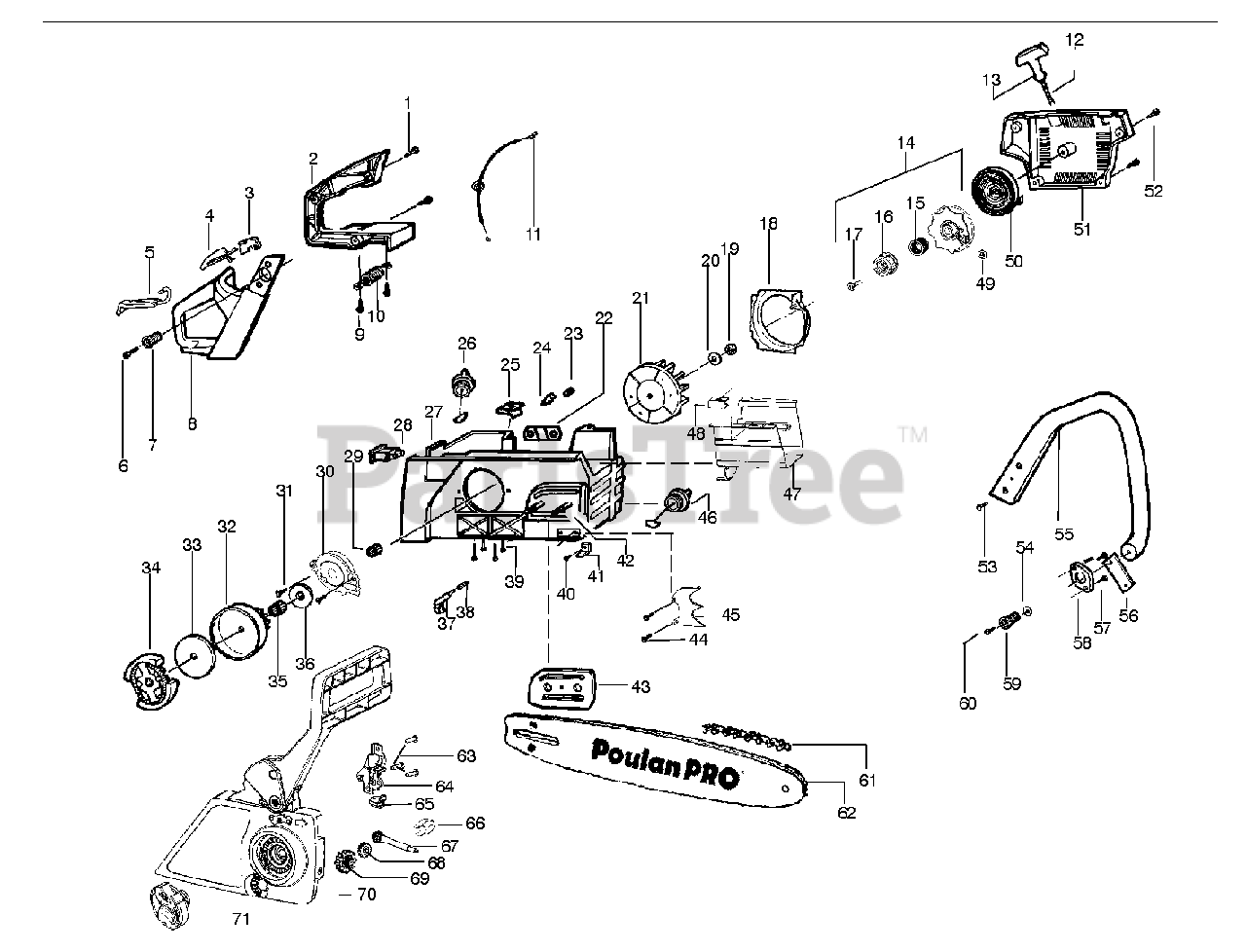

CHASSIS BAR HANDLE Parts Diagram

  • Title

1

Poulan 530015957

SCREW

$4.99

$

In Stock, Qty 6

0

2

Poulan 530071272

HANDLE

Note: KIT

$

$

Not available

3

Poulan 530036097

THROTTLE TRIGGER

$5.99

$

In Stock, only 3 left!

0

4

Poulan 530036098

THROTTLE LOCK

$

$

Not available

5

Poulan 530053443

CHOKE LEVER

$

$

Not available

6

Poulan 530015937

SCREW

$6.49

$

Usually ships in 3-10 days

0

7

Poulan 530038985

SPRING

$4.99

$

Usually ships in 3-10 days

0

8

Poulan 530071272

HANDLE

Note: Kit

$

$

Not available

9

Poulan 530015906

SCREW,FRONT HBAR 36/41

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 530038986

SPRING

$

$

Not available

11

Poulan 530038471

THROTTLE WIRE

Note: INCL GROMMET

$

$

Not available

12

Poulan 530069232

KIT-ROPE

$7.49

$

In Stock, Qty 20+

0

13

Poulan 530056422

STARTER HANDLE

$

$

Not available

14

Poulan 530071966

KIT EPS STARTER

Note: KIT. 15 16 17 49

$26.99

$

Usually ships in 3-10 days

0

15

Poulan 530021180

SPRING EPS

$6.49

$

In Stock, only 2 left!

0

16

Poulan 530059677

HUB STARTER EPS

$9.99

$

In Stock, Qty 6

0

17

Poulan 530021179

SCREW SHOULDER

$2.49

$

In Stock, only 2 left!

0

18

Poulan 530047667

BAFFLE

$3.99

$

In Stock, only 4 left!

0

19

Poulan 530016134

NUT-FLYWHEEL

$6.49

$

In Stock, only 1 left!

0

20

Poulan 530015127

WASHER-FLYWHEEL

$6.49

$

In Stock, only 2 left!

0

21

Poulan 530059637

FLYWHEEL ASSY

$

$

Not available

22

Poulan 530036043

PLATE,BAR MOUNT

Note: BAR STUD

$5.99

$

In Stock, only 3 left!

0

23

Poulan 530029868

VENT,FUEL TANK 36/41

$6.49

$

In Stock, Qty 7

0

24

Poulan 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, Qty 8

0

25

Poulan 530015922

CLIP

$6.49

$

In Stock, Qty 5

0

26

Poulan 530010845

FUEL CAP CPL

$

$

Not available

27

Poulan 530037551

CHASSIS ASSEMBLY

Note: INCL FUEL LINE AND FILTER. 22 23 24 26 42 46

$

$

Not available

28

Poulan 530069572

SWITCH

$9.49

$

In Stock, only 3 left!

0

29

Poulan 530029833

OILER GEAR 36/41

$8.99

$

In Stock, Qty 11

0

30

Poulan 530014410

OILER ASS'Y 36/41
(Superseded to 545036801)

$20.99

$

In Stock, Qty 7

0

31

Poulan 530015896

SCREW

$6.49

$

In Stock, Qty 13

0

32

Poulan 530069342

SPUR SPRKT .325 7T 36/41

Note: KIT. 35

$40.99

$

In Stock, Qty 6

0

33

Poulan 530015611

FRICTION DISC,CLUTCH 36/41

$6.49

$

In Stock, only 1 left!

0

34

Poulan 530014949

CLUTCH ASSEMBLY

$22.99

$

In Stock, only 1 left!

0

35

Poulan 530032119

NEEDLE BEARINGS 36/41

$10.99

$

In Stock, Qty 5

0

36

Poulan 530015907

DUST COVER 36/41

$

$

Not available

37

Poulan 545047801

PICKUP OIL P600-P

$6.49

$

In Stock, Qty 9

0

38

Poulan 530056533

SCREEN/FILTER

$6.49

$

In Stock, only 2 left!

0

39

Poulan 530016037

SCREW M5-0.8X35M TAP

$

$

Not available

40

Poulan 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

41

Poulan 530029850

CHAIN CATCHER 36/41

$6.49

$

In Stock, only 3 left!

0

42

Poulan 530015877

BAR BOLT 36/41

$7.49

$

Usually ships in 3-10 days

0

43

Poulan 530047855

BAR PLATE

$

$

Not available

44

Poulan 530016439

SCREW

$6.49

$

Usually ships in 3-10 days

0

45

Poulan 530014381

SPIKE 36/41

Note: Kit. 44

$9.99

$

In Stock, Qty 7

0

46

Poulan 530057236

OIL TANK CAP

$

$

Not available

47

Poulan 530055406

SHIELD-HEAT

$4.99

$

Usually ships in 3-10 days

0

48

Poulan 530055322

CLIP-U

$2.49

$

Usually ships in 3-10 days

0

49

Poulan 530016080

SCREW

$6.49

$

In Stock, only 1 left!

0

50

Poulan 530042095

SPRING STARTER
(Superseded to 545008013)

$6.99

$

In Stock, only 3 left!

0

51

Poulan 545008803

FAN HSG P600 PRO GOLD

$

$

Not available

52

Poulan 530015892

SCREW,STRTR CVR 36/41

$6.49

$

In Stock, Qty 20+

0

53

Poulan 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

54

Poulan 530015158

WASHER
(Superseded to 530015123)

$4.99

$

In Stock, only 4 left!

0

55

Poulan 530038327

%HANDLE
(Superseded to 530053955)

$15.99

$

Usually ships in 3-10 days

0

56

Poulan 530036113

STRAP

$6.49

$

In Stock, only 1 left!

0

57

Poulan 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

58

Poulan 530036101

PLATE

$

$

Not available

59

Poulan 530038985

SPRING

$4.99

$

Usually ships in 3-10 days

0

60

Poulan 530015984

BOLT

$2.49

$

Usually ships in 3-10 days

0

61

Poulan 952051310

CHAIN 20" (78/325-050)

Note: 20

$

$

Not available

62

Poulan 952044815

BAR 20" QUICK ADJUST

Note: 20

$

$

Not available

63

Poulan 530016064

SCREW

$4.99

$

In Stock, only 2 left!

0

64

Poulan 545051201

COVER GEAR

$

$

Not available

65

Poulan 545060501

Adjusting Bar Pin
(Superseded to 545060502)

$4.99

$

In Stock, only 1 left!

0

66

Poulan 545149301

Clip

$4.99

$

In Stock, Qty 6

0

67

Poulan 545060401

Bar Adjuster Screw

$9.99

$

In Stock, only 2 left!

0

68

Poulan 545060201

Idler Gear

$6.49

$

In Stock, only 3 left!

0

69

Poulan 545090501

%WHEEL GEAR ADJUSTMENT
(Superseded to 525884202)

$

$

Not available

70

Poulan 545081874

CHAIN BRAKE ASSY

$

$

Not available

71

Poulan 579107301

KNOB

$10.99

$

In Stock, only 2 left!

0
