PP 4620 AVL - Poulan Pro Chainsaw (2007-06) Starter Parts Diagram

Chainsaw

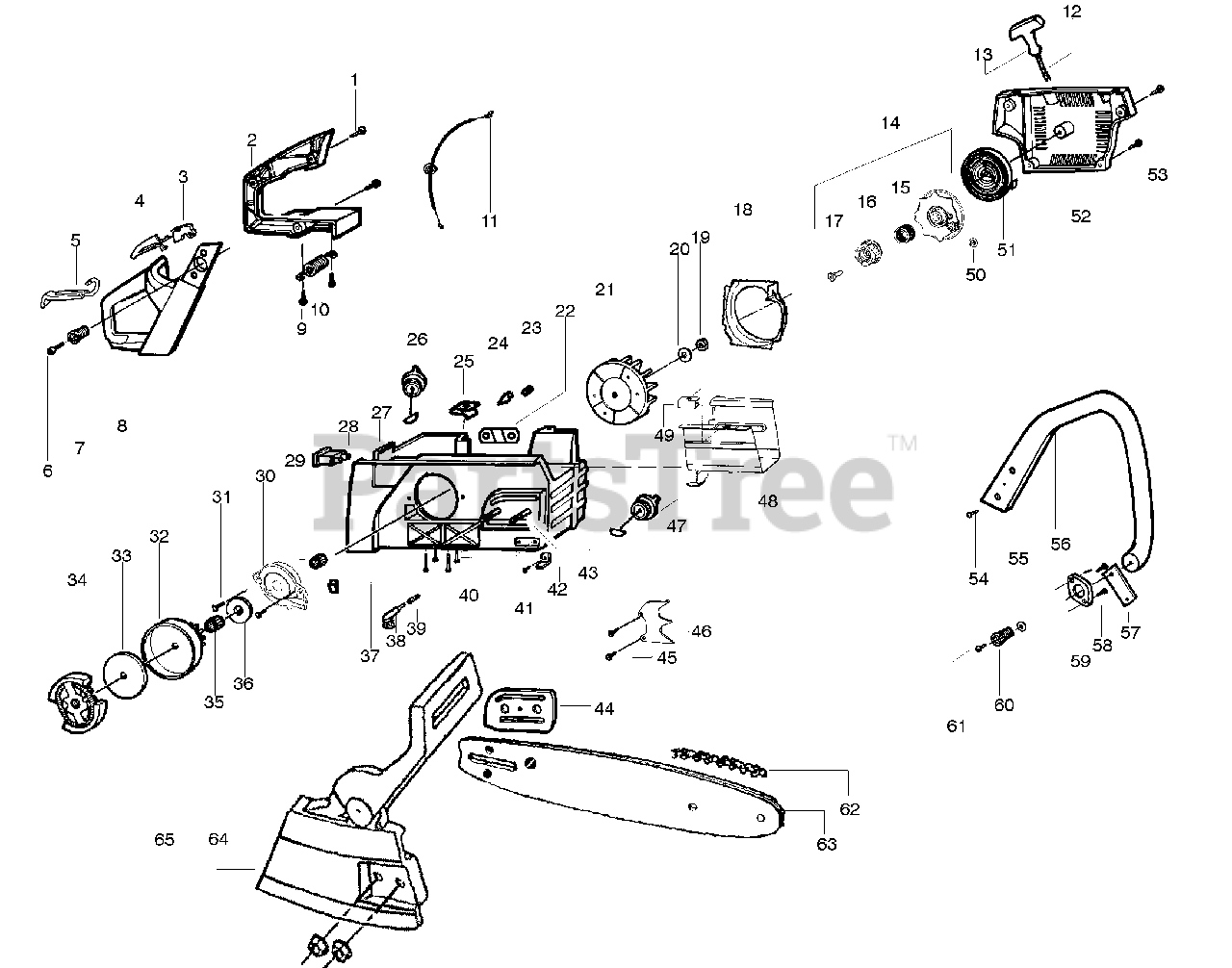

Starter Parts Diagram

  • Title

1

Electrolux/AYP 530015957

Screw

$4.99

$

In Stock, Qty 6

0

2

Electrolux/AYP 530071272

Cover-Handle (kit)

$

$

Not available

3

Electrolux/AYP 530036097

Trigger-Throttle

$5.99

$

In Stock, only 3 left!

0

4

Electrolux/AYP 530036098

Lockout-Throttle

$

$

Not available

5

Electrolux/AYP 530053443

Lever-Choke

$

$

Not available

6

Electrolux/AYP 530015937

Screw

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530038985

Spring-Isolator

$4.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 530071272

Handle-Rear (kit)

$

$

Not available

9

Electrolux/AYP 530015906

Screw

$6.49

$

In Stock, only 2 left!

0

10

Electrolux/AYP 530038986

Spring-Isolator

$

$

Not available

11

Electrolux/AYP 530038471

Assy-Throttle Cable

Note: (Incl. Grommet)

$

$

Not available

12

Electrolux/AYP 530069232

Kit-Rope

$7.49

$

In Stock, Qty 20+

0

13

Electrolux/AYP 530049797

Handle-Starter
(Superseded to 530056422)

$

$

Not available

14

Electrolux/AYP 530071966

Kit-Starter EPS

Note: (Incl. 15,16,17,50)

$26.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 530021180

Spring EPS

$6.49

$

In Stock, only 2 left!

0

16

Electrolux/AYP 530059677

Hub-Starter EPS

$9.99

$

In Stock, Qty 6

0

17

Electrolux/AYP 530021179

Screw-Shoulder

$2.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 530047667

Plate-Baffle Fan

$3.99

$

In Stock, only 4 left!

0

19

Electrolux/AYP 530016134

Nut-Flywheel

$6.49

$

In Stock, only 2 left!

0

20

Electrolux/AYP 530015127

Washer-Flywheel

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 530059637

Assy-Flywheel

$

$

Not available

22

Electrolux/AYP 530036043

Plate-Support (Bar Stud)

$5.99

$

In Stock, only 3 left!

0

23

Electrolux/AYP 530029868

Plug-Vent

$6.49

$

In Stock, only 4 left!

0

24

Electrolux/AYP 530026119

Valve-Check

$5.99

$

In Stock, Qty 10

0

25

Electrolux/AYP 530015922

Nut-Speed

$6.49

$

In Stock, Qty 5

0

26

Electrolux/AYP 530010845

Assy-Fuel Cap

$

$

Not available

27

Electrolux/AYP 530037551

Assy-Chassis

Note: (Incl. 22,23,24,26,43,47 Fuel line and filter)

$

$

Not available

28

Electrolux/AYP 530069572

Kit-Switch

$9.49

$

In Stock, only 3 left!

0

29

Electrolux/AYP 530029833

Worm-Oil Pump

$8.99

$

In Stock, Qty 12

0

30

Electrolux/AYP 530014410

Assy.-Oil Pump
(Superseded to 545036801)

$20.99

$

In Stock, Qty 9

0

31

Electrolux/AYP 530015896

Screw

$6.49

$

In Stock, Qty 13

0

32

Electrolux/AYP 530069342

Kit-Clutch Drum

Note: (Incl. #35)

$40.99

$

In Stock, Qty 7

0

33

Electrolux/AYP 530015611

Washer-Clutch

$6.49

$

In Stock, Qty 11

0

34

Electrolux/AYP 530014949

Assy-Clutch

$22.99

$

In Stock, only 1 left!

0

35

Electrolux/AYP 530032119

Bearing-Clutch

$10.99

$

In Stock, Qty 6

0

36

Electrolux/AYP 530015907

Washer-Thrust

$

$

Not available

37

Electrolux/AYP 530019174

Seal-Oil
(Superseded to 545037101)

$10.99

$

In Stock, Qty 12

0

38

Electrolux/AYP 545047801

Pickup-Oil

$6.49

$

In Stock, Qty 9

0

39

Electrolux/AYP 530056533

Filter-Oil

$6.49

$

In Stock, only 2 left!

0

40

Electrolux/AYP 530016037

Screw

$

$

Not available

41

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 17

0

42

Electrolux/AYP 530029850

Chain Catcher

$6.49

$

In Stock, only 4 left!

0

43

Electrolux/AYP 530015877

Bar Bolt

$7.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 530047855

Bar Plate

$

$

Not available

45

Electrolux/AYP 530016439

Screw

$6.49

$

In Stock, only 1 left!

0

46

Electrolux/AYP 530014381

Kit-Spike Assy

Note: (Incl#45)

$9.99

$

In Stock, Qty 11

0

47

Electrolux/AYP 530057236

Assy-Oil Cap

$

$

Not available

48

Electrolux/AYP 530055406

Shield-Heat

$4.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 530055322

Clip-"U"

$2.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 530016392

Screw

$4.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 530042095

Spring-Recoil
(Superseded to 545008013)

$6.99

$

In Stock, only 3 left!

0

52

Electrolux/AYP 545008803

Housing-Fan

$

$

Not available

53

Electrolux/AYP 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

54

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 17

0

55

Electrolux/AYP 530015158

Washer
(Superseded to 530015123)

$4.99

$

In Stock, only 4 left!

0

56

Electrolux/AYP 530038327

Handle-Front
(Superseded to 530053955)

$15.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 530036113

Front Strap-AV

$6.49

$

In Stock, only 1 left!

0

58

Electrolux/AYP 530015775

Screw-Plate

$6.49

$

In Stock, only 2 left!

0

59

Electrolux/AYP 530036101

Plate-Isolator

$

$

Not available

60

Electrolux/AYP 530038985

Spring-Isolator

$4.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 530015984

Screw

$2.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 952051310

Chain"- 20"

$

$

Not available

63

Electrolux/AYP 952044815

Bar -20" Quick Adjust

$

$

Not available

64

Electrolux/AYP 530054804

Assy-ChainBrake
(Superseded to 530054819)

$

$

Not available

65

Electrolux/AYP 530015917

Nut-Bar Mounting

$3.99

$

In Stock, Qty 16

0
