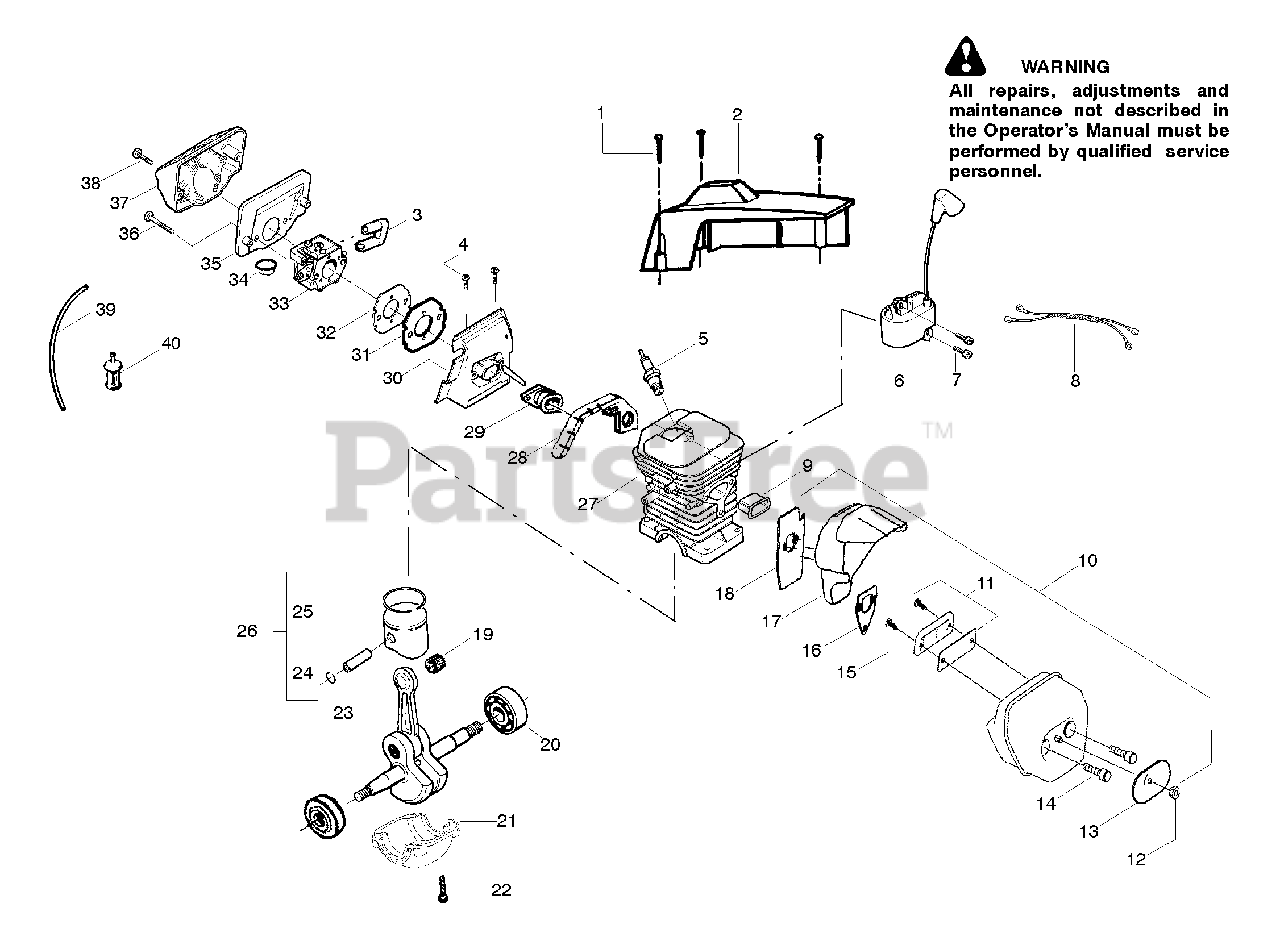

PP 4620 AVHD - Poulan Pro Chainsaw Engine Assembly Parts Diagram

Chainsaw

Engine Assembly Parts Diagram

  • Title

1

Poulan 530016154

Screw

$3.99

$

In Stock, Qty 20+

0

2

Poulan 530069716

Kit-Cylinder Shield

$

$

Not available

3

Poulan 530035583

Grommet -Carb.

$

$

Not available

4

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 17

0

5

Poulan 952030150

Spark Plug

Note: (RCJ-7Y)

$3.49

$

In Stock, Qty 20+

0

6

Poulan 530039239

Module-Ignition
(Superseded to 545063901)

$

$

Not available

7

Poulan 545121901

Screw

$3.99

$

In Stock, Qty 5

0

8

Poulan 530037467

Assy-Switch Wire

$30.99

$

Usually ships in 3-10 days

0

9

Poulan 530037652

Insulator-Heat

$

$

Not available

10

Poulan 530071495

Kit-Muffler

Note: (Incl.11,13,14,15,16,17,18)

$24.99

$

Usually ships in 3-10 days

0

11

Poulan 530071497

Kit-Spark Arrestor

Note: (Incl.# 15)

$10.99

$

Usually ships in 3-10 days

0

12

Poulan 530016359

Nut-Brass
(Superseded to 574266401)

$4.99

$

In Stock, Qty 6

0

13

Poulan 530056061

Cover-Bolt

$4.99

$

Usually ships in 3-10 days

0

14

Poulan 530016338

Bolt-Muffler

$3.99

$

In Stock, only 2 left!

0

15

Poulan 530016351

Screw-Spark Screen

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 530055128

Gasket-Muffler

$4.99

$

In Stock, only 2 left!

0

17

Poulan 530055765

Assy-Muffler Backplate

$

$

Not available

18

Poulan 530055402

Backplate - Alum.

$

$

Not available

19

Poulan 503414101

Bearing-Piston Pin

$24.99

$

Usually ships in 3-10 days

0

20

Poulan 530056363

Assy-Bearing & Seal

$18.99

$

In Stock, only 2 left!

0

21

Poulan 530049794

Cap-Crankcase

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 530015897

Screw

$6.49

$

In Stock, Qty 19

0

23

Poulan 530029794

Assy-C'shaft & Rod
(Superseded to 503920801)

$

$

Not available

24

Poulan 530015697

Retainer-Piston Pin

$6.49

$

In Stock, Qty 6

0

25

Poulan 530037380

Ring-Piston

$7.49

$

In Stock, only 1 left!

0

26

Poulan 530069548

Kit-Piston

Note: (Incl. 19,24,25)

$

$

Not available

27

Poulan 530071490

Assy-Cyl/Crankcase

Note: (Incl.#21)

$91.99

$

Usually ships in 3-10 days

0

28

Poulan 530019251

Seal-Super Clean

$4.99

$

Usually ships in 3-10 days

0

29

Poulan 530035581

Intake Boot

$

$

Not available

30

Poulan 530053396

Adapter-Carb.

$66.99

$

Usually ships in 3-10 days

0

31

Poulan 530037872

Intake Plate-Carb

$6.49

$

In Stock, Qty 6

0

32

Poulan 530019172

Gasket-Carb.

$6.49

$

In Stock, only 4 left!

0

33

Poulan 530071693

Kit-Carburetor
(Superseded to 545013503)

Note: (WT-657)

$51.99

$

Usually ships in 3-10 days

0

34

Poulan 530036792

Isolator

$7.49

$

Usually ships in 3-10 days

0

35

Poulan 530059738

Filter-Air

Note: (Bottom)

$

$

Not available

36

Poulan 530015970

Screw

$

$

Not available

37

Poulan 530036141

Filter-Air
(Superseded to 545057701)

Note: (Top)

$5.99

$

In Stock, only 4 left!

0

38

Poulan 530015899

Screw

$6.49

$

In Stock, Qty 11

0

39

Poulan 530069247

Kit-Fuel Line

Note: (Small)

$7.99

$

In Stock, Qty 20+

0

40

Poulan 530095646

Assy-Fuel Pick-up

$6.99

$

In Stock, Qty 20+

0

Poulan 545123761

Manual

Note: Not Shown

$

$

Not available

Poulan 530031135

Scrench
(Superseded to 530031163)

Note: Not Shown

$9.99

$

In Stock, Qty 12

0

Poulan 545056701

Decal-Warning

Note: Not Shown

$

$

Not available
