PP 46 SZ (967721801-00) - Poulan Pro 46" Zero-Turn Mower (2018-01) FRAME Parts Diagram

46" Zero-Turn Mower

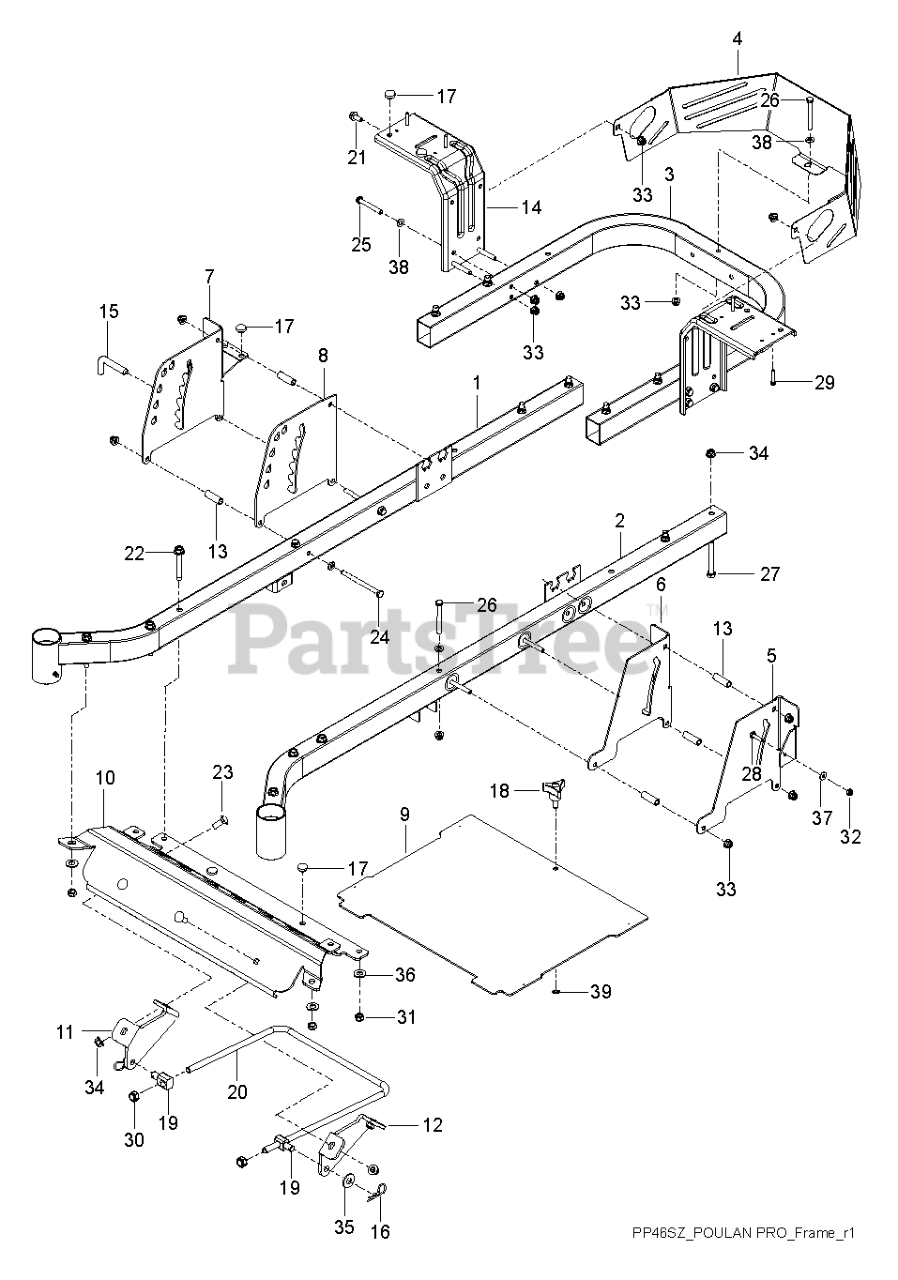

FRAME Parts Diagram

  • Title

1

Poulan 589283405

FRAME TUBE RZ MAIN WELDMENT RI

$62.99

$

Usually ships in 3-10 days

0

2

Poulan 589283305

FRAME TUBE RZ MAIN WELDMENT LE

$85.99

$

Usually ships in 3-10 days

0

3

Poulan 586441002

FRAME.PNT.REAR.TUBE.BLACK

$

$

Not available

4

Poulan 586214403

HEAT SHIELD, RZ, 21IN FRAME BL

$24.99

$

In Stock, only 1 left!

0

5

Poulan 510261802

PLATE, OUTER BRAKE, BLACK

$60.99

$

Usually ships in 3-10 days

0

6

Poulan 510206703

PLATE, BRAKE LATCH, BLACK

$48.99

$

Usually ships in 3-10 days

0

7

Poulan 580528002

PLATE.DECK HEIGHT.PNT.431.RZ

$13.99

$

Usually ships in 3-10 days

0

8

Poulan 510240502

PLATE, DECK HEIGHT, BLACK

$21.99

$

Usually ships in 3-10 days

0

9

Poulan 522842906

PLATE, FOOT W/DECALS, BLK

$

$

Not available

10

Poulan 522740709

FOOT REST, MED BLK

$157.99

$

Usually ships in 3-10 days

0

11

Poulan 581222802

MOUNT.STRUT.RH.431

$7.99

$

Usually ships in 3-10 days

0

12

Poulan 581222902

MOUNT.STRUT.LH.431

$7.99

$

Usually ships in 3-10 days

0

13

Poulan 580486101

SPACER.334.ID.5.OD.1.5.L
(Superseded to 580486102)

$4.99

$

In Stock, only 1 left!

0

14

Poulan 580501302

FENDER.SUPPORT.PNT.X431

$37.99

$

Usually ships in 3-10 days

0

15

Poulan 510016503

PIN.DECK.HEIGHT.RZ
(Superseded to 510016504)

$6.49

$

In Stock, only 3 left!

0

16

Poulan 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

18

Poulan 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

19

Poulan 581514301

SWIVEL.TRUNION.LINK.DECK.FRONT

$4.99

$

In Stock, only 1 left!

0

20

Poulan 521938101

LINK, FRONT SUSP.
(Superseded to 521938102)

$14.99

$

In Stock, Qty 5

0

21

Poulan 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

Usually ships in 3-10 days

0

22

Poulan 874490644

HHFS 3/8-16 X 2-3/4 GR5 ZD

$

$

Not available

23

Poulan 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 3 left!

0

24

Poulan 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 874780536

Bolt Fin Hex 5/16-18 x 2-1/4 (AYP part number)

$

$

Not available

26

Poulan 874780544

Bolt Fin Hex 5/16 - 18 UNC x 2.75 (AYP part number)
(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 874780648

BOLT.HEX.FIN.3/8-16 X 3.GR5
(Superseded to 596564405)

$3.99

$

In Stock, Qty 10

0

28

Poulan 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

29

Poulan 539110674

SCR #10-12X1-1/2HEX WASH HD ZD

$4.99

$

Usually ships in 3-10 days

0

30

Poulan 539119124

7/16-14 HEX NUT W/NYL RING ZD
(Superseded to 595901901)

$3.49

$

In Stock, Qty 18

0

31

Poulan 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

32

Poulan 539976978

NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

34

Poulan 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

35

Poulan 819212113

WASHER
(Superseded to 596320001)

$3.99

$

In Stock, only 2 left!

0

36

Poulan 819141614

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 7

0

37

Poulan 819091016

Washer 9/32 x 5/8 x 16 Gauge (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 5

0

38

Poulan 819111116

Washer, Nut Lock Hex w/Ins. 5/6-18 (AYP part number)
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

39

Poulan 532423063

WASHER 5/16"
(Superseded to 583400601)

$4.99

$

Usually ships in 3-10 days

0
