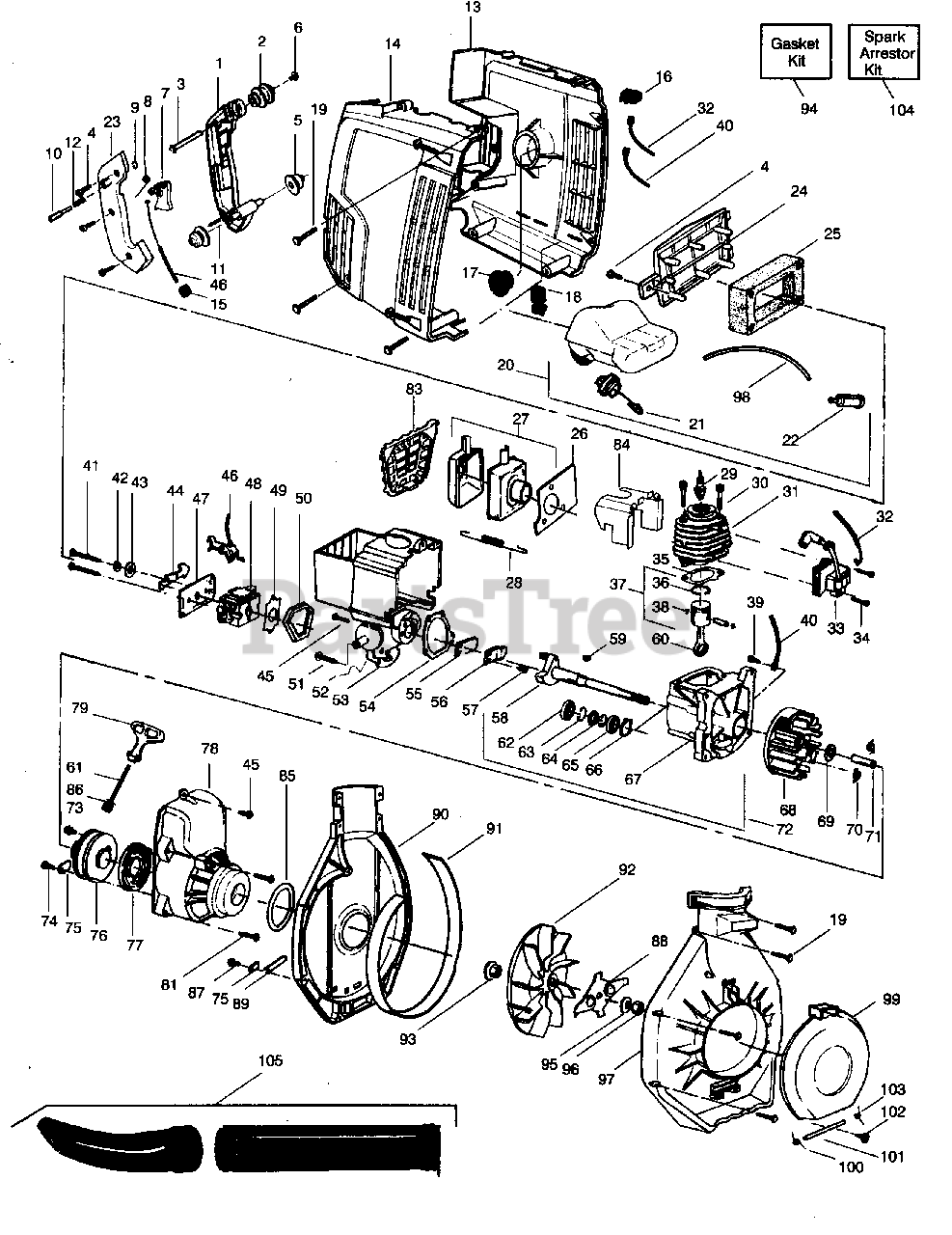

PP 452 - Poulan Pro Blower ASSEMBLY Parts Diagram

Blower

ASSEMBLY Parts Diagram

  • Title
1

Poulan 530094712

Handle
(Superseded to 530069863)

$

$

Not available

2

Poulan 530026994

Front Isolator

$

$

Not available

3

$1.99

$

Usually ships in 3-10 days

0

4

Poulan 530015635

Screw-Handle

$5.99

$

In Stock, only 4 left!

0

5

Poulan 530029130

Rear Isolator

$3.99

$

In Stock, only 1 left!

0

$0.99

$

Usually ships in 3-10 days

0

7

$

$

Not available

8

$3.99

$

In Stock, only 4 left!

0

9

Poulan 530015702

"C" Clip

$

$

Not available

10

Poulan 530029117

Throttle Lock Button

$

$

Not available

$0.99

$

Usually ships in 3-10 days

0

12

Poulan 530024772

Spring-Throttle Lock

$4.99

$

Usually ships in 3-10 days

0

13

Poulan 530037861

Shroud-Left

$21.99

$

Usually ships in 3-10 days

0

14

Poulan 530037860

Shroud-Right

$21.99

$

Usually ships in 3-10 days

0

15

Poulan 530019168

Grommet-Carb.

$0.99

$

Usually ships in 3-10 days

0

16

Poulan 530069764

Switch Kit

$

$

Not available

17

Poulan 530029129

Isolator-Engine Mount

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530029295

Isolator-Tank

$0.99

$

Usually ships in 3-10 days

0

19

Poulan 530015814

Screw-Shroud/Blower Hsg.

$6.49

$

In Stock, Qty 16

0

20

Poulan 530014263

Fuel Tank Ass'y.

$

$

Not available

21

Poulan 530014347

Fuel Cap (Incl. O'Ring)

$9.49

$

In Stock, Qty 15

0

22

Poulan 530014362

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 19

0

23

Poulan 530014160

Handle Cover/Throttle Lock Ass'y. (Incl. 9, 10 & 12)

$

$

Not available

24

Poulan 530037856

Cover-Air Filter

$

$

Not available

25

Poulan 530029112

Air Filter

$

$

Not available

26

Poulan 530019232

Muffler Gasket
(Superseded to 530058957)

$6.49

$

In Stock, only 2 left!

0

27

$12.99

$

Usually ships in 3-10 days

0

28

$1.99

$

Usually ships in 3-10 days

0

29

Poulan 530030075

Spark Plug

$

$

Not available

30

$2.49

$

Usually ships in 3-10 days

0

31

Poulan 530069626

Cylinder

$

$

Not available

32

Poulan 530029425

Lead Wire

$1.99

$

Usually ships in 3-10 days

0

33

Poulan 530039137

Ignition Module

$54.99

$

In Stock, only 1 left!

0

34

$3.99

$

Usually ships in 3-10 days

0

35

Poulan 530019178

Gasket-Cylinder
(Superseded to 530019267)

$4.99

$

In Stock, only 4 left!

0

36

Poulan 530025875

Piston Rings

$

$

Not available

37

Poulan 530069349

Piston Kit (Incl. 36, 38, & Pin)

$42.99

$

In Stock, only 1 left!

0

38

Poulan 530015162

Retainer

$6.49

$

In Stock, only 1 left!

0

39

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 530029426

Ground Wire

$1.99

$

Usually ships in 3-10 days

0

41

$6.49

$

In Stock, only 1 left!

0

42

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

43

Poulan 530015852

Spacer-Choke

$3.49

$

In Stock, only 1 left!

0

44

Poulan 530029114

Choke Shutter

$

$

Not available

45

Poulan 530015771

Screw-Reed

$6.49

$

In Stock, Qty 6

0

46

Poulan 530037492

Throttle Cable Assembly

$

$

Not available

47

Poulan 530029115

Plate-Air Filter

$1.99

$

Usually ships in 3-10 days

0

48

Poulan 530069644

Carburetor Ass'y. (WT-141A) (Incl. Limiter Cap)
(Superseded to 545081825)

$66.99

$

Usually ships in 3-10 days

0

49

Poulan 530019164

Gasket-Carb

$7.49

$

In Stock, only 2 left!

0

50

Poulan 530019165

Seal-Reed Block

$3.99

$

In Stock, only 2 left!

0

51

$6.49

$

In Stock, only 2 left!

0

52

Poulan 530029113

Ground Wire-Static

$0.99

$

Usually ships in 3-10 days

0

53

Poulan 530047696

Reed Block

$

$

Not available

54

Poulan 530019166

Gasket-Reed Block

$3.99

$

Usually ships in 3-10 days

0

55

Poulan 530027593

Reed Valve

$6.49

$

In Stock, only 2 left!

0

56

Poulan 530027594

Reed Stop

$5.99

$

Usually ships in 3-10 days

0

57

$4.99

$

In Stock, only 2 left!

0

58

Poulan 530047669

Crankshaft

$18.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

60

Poulan 530010960

Connecting Rod Ass'y.

$18.99

$

Usually ships in 3-10 days

0

61

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 19

0

62

Poulan 530032103

Inner Bearing

$

$

Not available

63

Poulan 530015787

Retaining Ring-Crankcase

$3.99

$

Usually ships in 3-10 days

0

64

Poulan 530019158

Crankshaft Seal

$6.49

$

Usually ships in 3-10 days

0

65

Poulan 530032102

Outer Bearing

$

$

Not available

66

Poulan 530015789

Retaining Ring-Crankshaft

$4.99

$

Usually ships in 3-10 days

0

67

Poulan 530014016

Crankcase Ass'y (Incl. 62-65)

$

$

Not available

68

Poulan 530039189

Flywheel Ass'y. (Incl. 70)

$

$

Not available

69

Poulan 530347987

Washer
(Superseded to 530016030)

$3.99

$

Usually ships in 3-10 days

0

70

$6.49

$

In Stock, Qty 5

0

71

Poulan 530047701

Spacer-Flywheel

$5.99

$

Usually ships in 3-10 days

0

72

Poulan 530047705

Crankcase/Crankshaft Assy. (Incl. 58, 62-67)

$

$

Not available

73

$6.49

$

Usually ships in 3-10 days

0

74

$3.99

$

Usually ships in 3-10 days

0

75

Poulan 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

76

Poulan 530069486

Starter Pulley (Incl. 73)

$10.99

$

Usually ships in 3-10 days

0

77

Poulan 530029395

Starter Spring
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

78

Poulan 530069714

Fan Housing Kit (Incl. 61, 71, 73-76, 79 & 86)

$

$

Not available

79

Poulan 530027569

Starter Handle

$6.49

$

Usually ships in 3-10 days

0

81

$3.99

$

Usually ships in 3-10 days

0

82

Poulan 530031111

Hex Wrench 5/32"
(Superseded to 530031159)

$4.99

$

In Stock, only 1 left!

0

83

Poulan 530069692

Muffler Guard Kit (Incl. 82)

$4.99

$

In Stock, only 1 left!

0

84

Poulan 530029404

Air Baffle

$2.99

$

Usually ships in 3-10 days

0

85

Poulan 530019167

"O" Ring

$

$

Not available

86

$4.99

$

Usually ships in 3-10 days

0

87

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

88

Poulan 530095355

Mulch Blade

$6.49

$

Usually ships in 3-10 days

0

89

Poulan 530029119

Roll Pin

$0.99

$

Usually ships in 3-10 days

0

90

Poulan 530094710

Blower Housing (Upper)

$8.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

92

Poulan 530047702

Impeller (Incl. 93)

$

$

Not available

93

Poulan 530029118

Hub-Impeller
(Superseded to 530047077)

$

$

Not available

94

Poulan 530069294

Gasket Kit

$

$

Not available

95

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

97

Poulan 530047736

Blower Housing (Lower) (Incl. 99-103)

$

$

Not available

98

Poulan 530069247

Line Kit

$7.99

$

In Stock, Qty 20+

0

99

Poulan 530047700

Door-Inlet

$5.99

$

Usually ships in 3-10 days

0

100

Poulan 530015667

Spring-Right

$3.99

$

Usually ships in 3-10 days

0

$1.49

$

In Stock, only 1 left!

0

102

$3.99

$

In Stock, only 2 left!

0

103

Poulan 530015672

Spring-Left

$

$

Not available

104

Poulan 530069348

Spark Arrestor Kit

$

$

Not available

105

Poulan 530038508

Ass'y-Tube and Nozzle

$

$

Not available

Poulan 530084019

Operators Manual

$

$

Not available

Poulan 530047885

Decal-Blower Warning 530047885

$

$

Not available

Poulan 530047446

Decal-Instruction

$

$

Not available
