PP 446 ET - Poulan Pro Pole Saw, Type 1 Engine Type 1 Parts Diagram

Pole Saw, Type 1

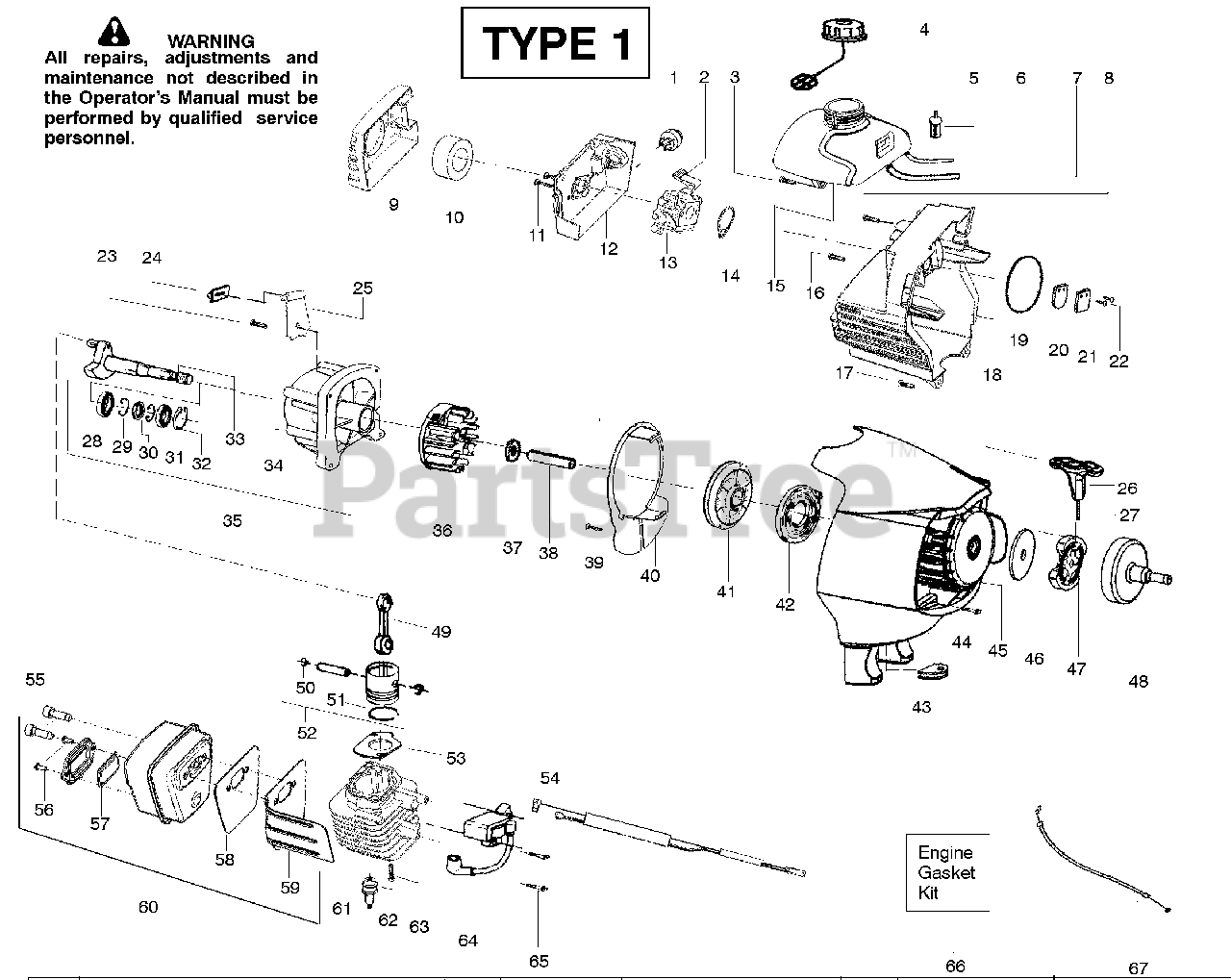

Engine Type 1 Parts Diagram

  • Title

1

Poulan 530047721

Bulb-Purge

$9.49

$

In Stock, Qty 5

0

2

Poulan 530071717

Kit-Choke Lever

$10.99

$

Usually ships in 3-10 days

0

3

Poulan 530015843

Screw-tank

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 530049386

Cap-Fuel w/ret.
(Superseded to 578931605)

$9.49

$

Usually ships in 3-10 days

0

5

Poulan 530095646

Assy-Fuel pickup

$6.99

$

In Stock, Qty 20+

0

6

Poulan 530071404

Kit-Fuel line
(Superseded to 530069247)

$7.99

$

In Stock, Qty 20+

0

7

Poulan 530069216

Kit-Fuel/Purge line

$11.99

$

In Stock, Qty 20+

0

8

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

9

Poulan 545000501

Cover-Air box

$5.99

$

In Stock, only 3 left!

0

10

Poulan 545082301

Filter-Air

$9.49

$

Usually ships in 3-10 days

0

11

Poulan 530015849

Screw-Carb.

$6.49

$

In Stock, only 1 left!

0

12

Poulan 545000601

Box-Air

$

$

Not available

13

Poulan 545006017

Kit-Carb assy. (C1U-W32)

Note: Note: Repair kits are not available for this carburetor

$47.99

$

In Stock, only 4 left!

0

14

Poulan 545030102

Seal-Carb.(kit)

$

$

Not available

15

Poulan 545075304

Assy-Fuel Tank
(Superseded to 545075305)

$

$

Not available

16

Poulan 530015771

Screw-Crankcase

$6.49

$

In Stock, Qty 6

0

17

Poulan 530015952

Screw-Shroud

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 545000701

Assy-Rear Shroud

$

$

Not available

19

Poulan 545030102

O-ring-Shroud (kit)

$

$

Not available

20

Poulan 530027593

Valve-Reed

$6.49

$

In Stock, only 3 left!

0

21

Poulan 530029781

Stop-Reed

$2.23

$

Usually ships in 3-10 days

0

22

Poulan 530016064

Screw-Reed stop

$4.99

$

In Stock, only 2 left!

0

23

Poulan 530015875

Screw-Retainer

$4.99

$

In Stock, only 3 left!

0

24

Poulan 530055492

Isolator-Tank

$

$

Not available

25

Poulan 530054941

Ret.-Tank

$

$

Not available

26

Poulan 530054834

Handle-Starter

$4.99

$

In Stock, only 1 left!

0

27

Poulan 545050410

Kit-Rope
(Superseded to 545050409)

$7.49

$

In Stock, only 3 left!

0

28

Poulan 545081601

Bearing-Inner

$

$

Not available

29

Poulan 530015787

Retainer

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530019158

Seal

$6.49

$

Usually ships in 3-10 days

0

31

Poulan 530032102

Bearing-Outer

$

$

Not available

32

Poulan 530015789

Ret.-Crankshaft

$4.99

$

Usually ships in 3-10 days

0

33

Poulan 530028807

Assy-Crankshaft

$37.99

$

Usually ships in 3-10 days

0

34

Poulan 545081901

Assy-Crankcase

Note: (Incl. 28,29,30,31)

$

$

Not available

35

Poulan 545006037

Assy-C'case/C'shaft

Note: (Incl. 32,33,34)

$

$

Not available

36

Poulan 530055524

Assy-Flywheel

$34.99

$

Usually ships in 3-10 days

0

37

Poulan 530016030

Washer

$3.99

$

Usually ships in 3-10 days

0

38

Poulan 530055620

Spacer

$7.49

$

Usually ships in 3-10 days

0

39

Poulan 530015775

Screw-Baffle

$6.49

$

In Stock, only 2 left!

0

40

Poulan 530054939

Plate-Baffle
(Superseded to 545115201)

$4.99

$

In Stock, only 1 left!

0

41

Poulan 545050408

Kit-Pulley

$

$

Not available

42

Poulan 545054901

Spring-Starter
(Superseded to 545008014)

$10.99

$

In Stock, Qty 6

0

43

Poulan 530019182

Grommet

$3.99

$

Usually ships in 3-10 days

0

44

Poulan 530015810

Screw-F/hsg.
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

45

Poulan 530055248

Assy-Fan Housing

$

$

Not available

46

Poulan 530094189

Washer-Clutch

$6.99

$

In Stock, only 1 left!

0

47

Poulan 530055122

Assy-Clutch

$20.99

$

In Stock, Qty 5

0

48

Poulan 530150247

Assy-Drum/Adapter

$28.99

$

Usually ships in 3-10 days

0

49

Poulan 530010960

Assy-Conn. Rod

$18.99

$

Usually ships in 3-10 days

0

50

Poulan 530015162

Ret.-Piston pin

$6.49

$

In Stock, only 2 left!

0

51

Poulan 530012595

Ring-Piston

$

$

Not available

52

Poulan 530072000

Kit-Piston

Note: (Incl. 50,51)

$

$

Not available

53

Poulan 545030102

Gasket-Cylinder(kit)

$

$

Not available

54

Poulan 530058846

Assy-Leadwire

$7.49

$

Usually ships in 3-10 days

0

55

Poulan 530016387

Bolt-Muffler 1/4"-20

$

$

Not available

56

Poulan 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

57

Poulan 545030502

Kit-Spark Arrestor

$7.99

$

Usually ships in 3-10 days

0

58

Poulan 545030102

Gasket-Muffler (kit)

$

$

Not available

59

Poulan 545033201

Shield

$

$

Not available

60

Poulan 545006016

Kit-Muffler

Note: (Incl. 55,56,57,58,59)

$42.99

$

Usually ships in 3-10 days

0

61

Poulan 530012589

Cylinder

$24.99

$

Usually ships in 3-10 days

0

62

Poulan 952030249

Plug-Spark(RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

63

Poulan 530001624

Bolt-Cyl. 1/4"-20

$3.99

$

Usually ships in 3-10 days

0

64

Poulan 530039234

Module-Ignition
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

65

Poulan 530016357

Screw-Module

$6.49

$

In Stock, only 4 left!

0

66

Poulan 545030102

Kit-Gasket/Seal

Note: (Incl. 14,19, 53,58)

$

$

Not available

67

Poulan 530058962

Assy-Throttle cable
(Superseded to 545026801)

$18.99

$

Usually ships in 3-10 days

0
