PP 446 E - Poulan Pole Saw, Type 1 (2009-01) Shaft - Type 1-2 Parts Diagram

Pole Saw, Type 1

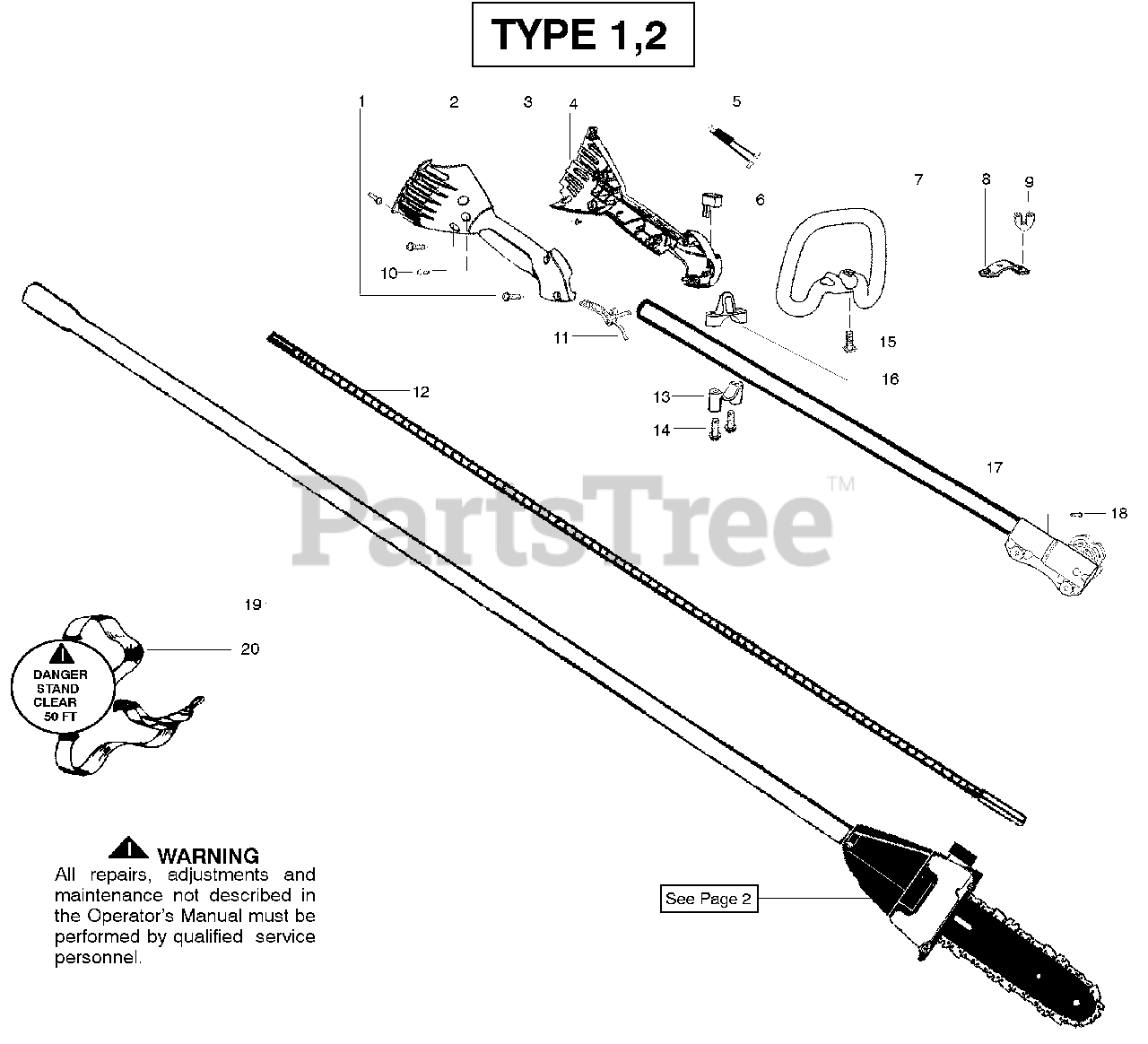

Shaft - Type 1-2 Parts Diagram

  • Title

1

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, Qty 15

0

2

Electrolux/AYP 530057983

Hsg.-Throttle right

$

$

Not available

3

Electrolux/AYP 530016326

Screw-Cable Ret.

$

$

Not available

4

Electrolux/AYP 530057984

Hsg.-Throttle left

$

$

Not available

5

Electrolux/AYP 530058843

Assy-Wire

$

$

Not available

6

Electrolux/AYP 530069572

Kit-Switch

$9.49

$

In Stock, only 3 left!

0

7

Electrolux/AYP 530059101

Assy-Handle

Note: (Incl. 8,9,15)

$9.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 530059185

Clamp-Handle

$6.49

$

In Stock, Qty 10

0

9

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$3.49

$

In Stock, Qty 19

0

10

Electrolux/AYP 530015805

Screw-Align
(Superseded to 530015886)

$6.49

$

In Stock, Qty 15

0

11

Electrolux/AYP 530058759

Trigger-Throttle
(Superseded to 545017701)

$

$

Not available

12

Electrolux/AYP 530056570

Flex-Lower

$24.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530057987

Clamp-Lower

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530015940

Screw

$6.49

$

In Stock, Qty 8

0

15

Electrolux/AYP 530015820

Bolt

$4.99

$

In Stock, Qty 9

0

16

Electrolux/AYP 530057986

Clamp-Upper

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 530071936

Kit-Upper Shaft
(Superseded to 575260201)

$39.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 545008090

Assy-Driveshaft

$79.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530094408

Assy-Shoulder Strap
(Superseded to 530094417)

$

$

Not available

20

Electrolux/AYP 545186746

Manual

Note: Not Shown

$

$

Not available

20

Electrolux/AYP 530150724

Decal-Warning

Note: Not Shown

$

$

Not available

20

Electrolux/AYP 530150031

Att. - Hanger

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

20

Electrolux/AYP 530057296

Decal-Upper Shaft

Note: Not Shown

$

$

Not available

20

Electrolux/AYP 530031159

Wrench-Hex(5/32)

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0
