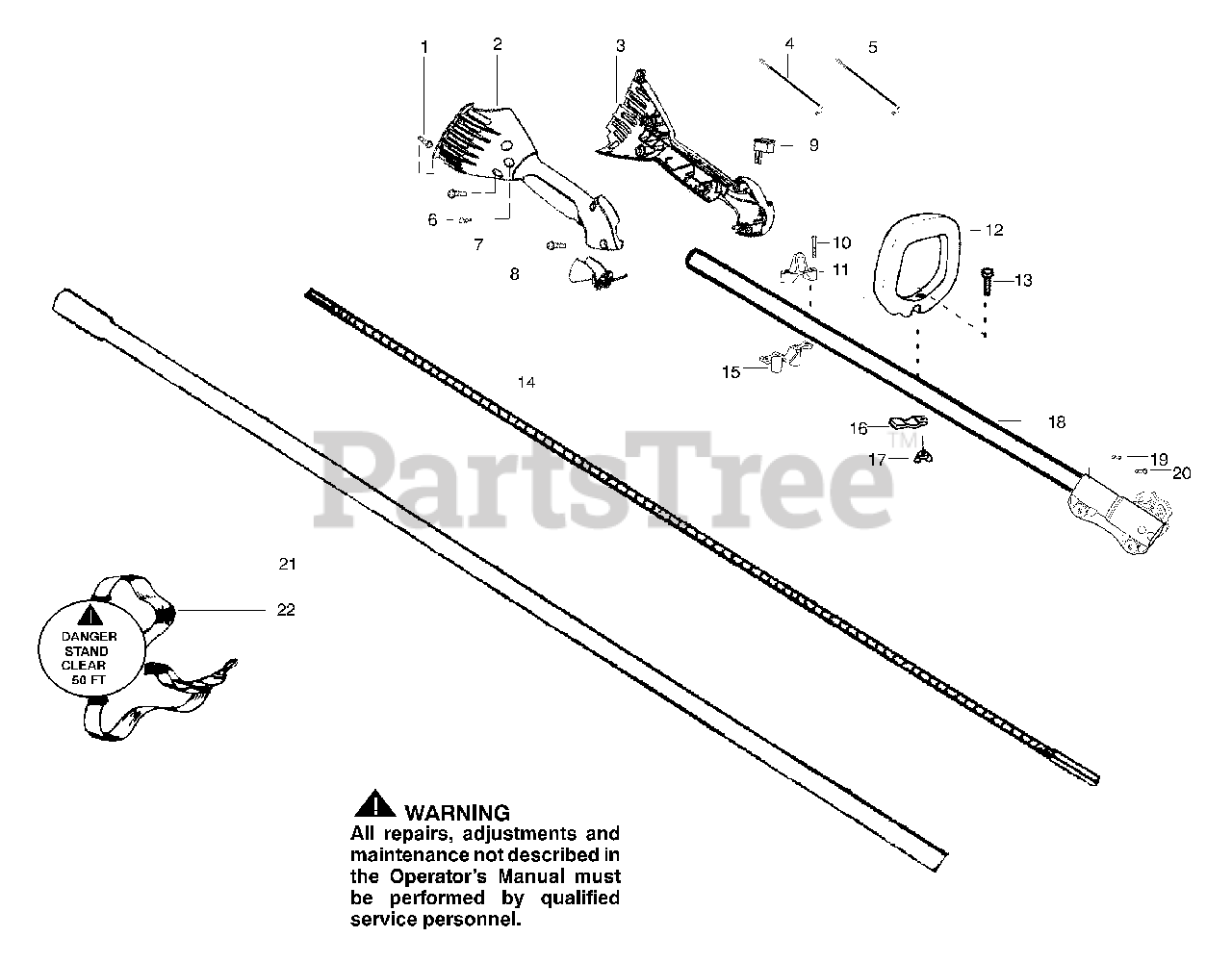

PP 445 - Poulan Pro Pole Saw Handle & Shaft Assembly Parts Diagram

Pole Saw

Handle & Shaft Assembly Parts Diagram

  • Title

$6.49

$

In Stock, only 3 left!

0

2

Poulan 530054837

Hsg.-Throttle right

$

$

Not available

3

Poulan 530056017

Hsg.-Throttle left

$

$

Not available

4

Poulan 530054943

Assy-Wire

$

$

Not available

5

Poulan 530055724

Assy-Upper Wire

$

$

Not available

6

Poulan 530015805

Screw-Align
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

$6.49

$

In Stock, only 3 left!

0

8

$3.99

$

In Stock, Qty 8

0

9

Poulan 530069572

Kit-Switch

$9.49

$

In Stock, only 3 left!

0

10

$

$

Not available

11

Poulan 530055392

Clamp-Upper
(Superseded to 530071605)

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 530055699

Assy-Handle

Note: (Incl. 13,16,17)

$11.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 1 left!

0

14

Poulan 530056570

Flex-Lower

$24.99

$

Usually ships in 3-10 days

0

15

Poulan 530055394

Clamp-Lower

$

$

Not available

16

Poulan 530088416

Clamp-Handle

$

$

Not available

17

Poulan 530016118

Wingnut
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

18

Poulan 530071607

Kit-Upper Shaft

$

$

Not available

19

$

$

Not available

20

Poulan 530016343

Screw-Alignment

Note: (Used on earlier units)

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 530096062

Assy-Driveshaft

$

$

Not available

22

Poulan 530094417

Assy-Shoulder Strap

$

$

Not available

Poulan 530163735

Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530056846

Decal-Shaft Lower

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

Poulan 530095894

Att. - Hanger

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

Poulan 530057296

Decal-Upper Shaft

Note: Not Shown

$

$

Not available

Poulan 530031159

Wrench-Hex(5/32)

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0

Poulan 530057369

Decal-Start Inst.

Note: Not Shown

$

$

Not available
