PP 440 - Poulan Pro Blower POWER UNIT Parts Diagram

Blower

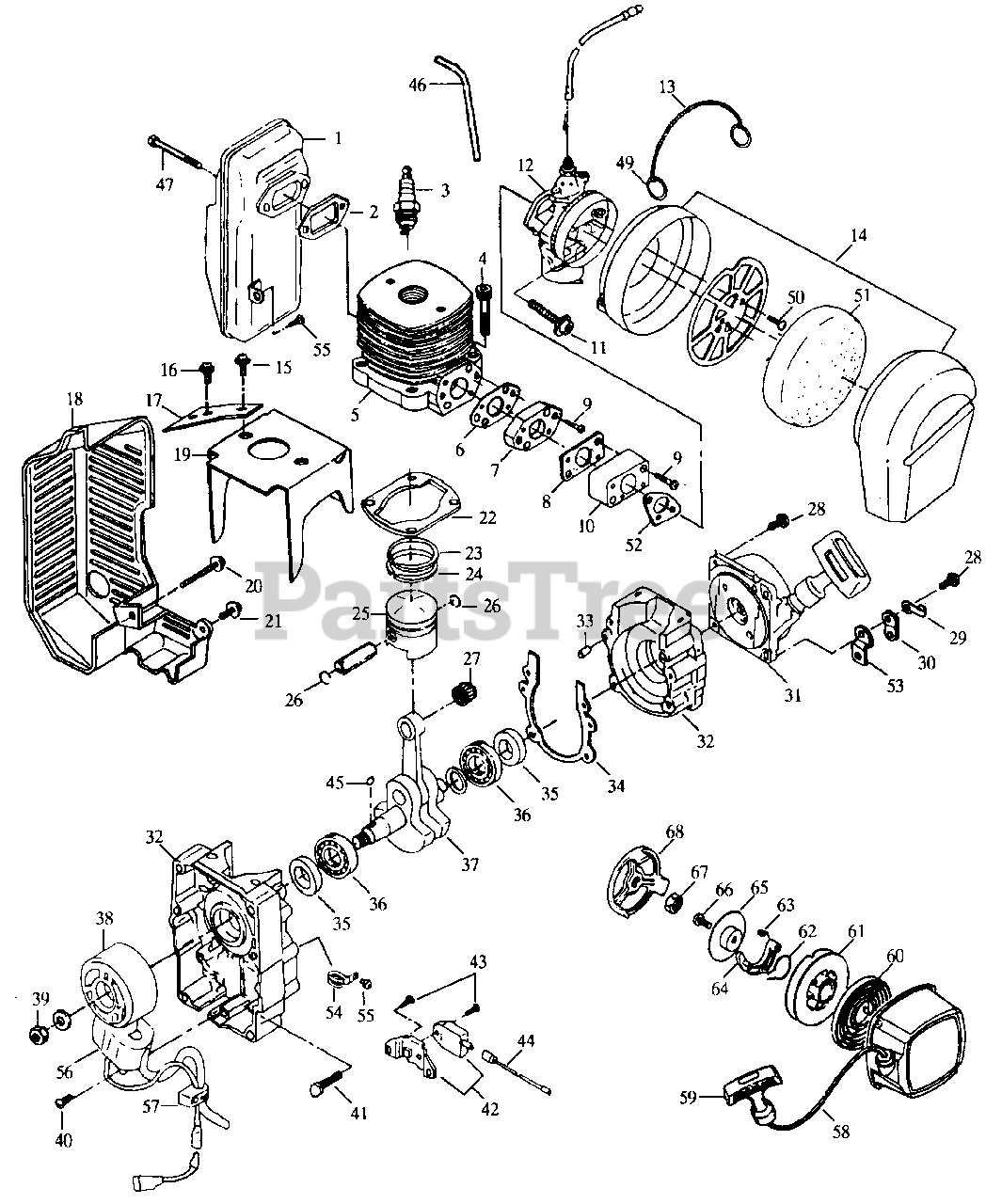

POWER UNIT Parts Diagram

  • Title
1

Poulan 530089287

Muffler Ass'y.

$

$

Not available

2

Poulan 530089286

Muffler Gasket

$4.99

$

Usually ships in 3-10 days

0

3

Poulan 530089246

Spark Plug

$8.99

$

In Stock, only 1 left!

0

$

$

Not available

5

Poulan 530089237

Cylinder

$

$

Not available

6

Poulan 530089259

Carburetor Gasket

$

$

Not available

7

$

$

Not available

8

Poulan 530089257

Insulator Gasket

$1.99

$

In Stock, only 1 left!

0

9

Poulan 530089339

Screw & Washer

$

$

Not available

10

Poulan 530089256

Insulator

$

$

Not available

11

Poulan 530089340

Screw & Washer

$

$

Not available

12

Poulan 530089253

Carburetor

$

$

Not available

13

$

$

Not available

14

Poulan 530089281

Air Cleaner Ass'y.

$

$

Not available

15

Poulan 530089348

Screw & Washer

$

$

Not available

16

Poulan 530089333

Screw & Washer

$

$

Not available

17

$7.49

$

Usually ships in 3-10 days

0

18

Poulan 530089289

Muffler Cover

$34.99

$

Usually ships in 3-10 days

0

19

Poulan 530089236

Cylinder Cover

$

$

Not available

20

$

$

Not available

21

Poulan 530089352

Screw & Washer

$

$

Not available

22

Poulan 530089238

Cylinder Gasket

$

$

Not available

23

Poulan 530089239

Ring Top

$

$

Not available

24

Poulan 530089240

Ring Top

$10.99

$

Usually ships in 3-10 days

0

25

Poulan 530089242

Piston Ass'y.

$

$

Not available

26

Poulan 530089241

Piston Pin Clip

$

$

Not available

27

Poulan 530089244

Bearing Needle

$

$

Not available

28

Poulan 530089354

Screw & Washer

$

$

Not available

29

$

$

Not available

30

$

$

Not available

31

Poulan 530089294

Starter Recoil

$

$

Not available

32

Poulan 530089357

Crankcase Ass'y.

$

$

Not available

33

Poulan 530089231

Pin Dowel

$

$

Not available

34

Poulan 530089235

Crankcase Gasket

$

$

Not available

35

Poulan 530089232

Oil Seal

$9.49

$

In Stock, only 2 left!

0

36

Poulan 530089234

Ball Bearing

$

$

Not available

37

Poulan 530089245

Crankshaft Ass'y.

$

$

Not available

38

$

$

Not available

$

$

Not available

40

Poulan 530089338

Bolt & Washer

$

$

Not available

41

Poulan 530089331

Screw & Washer

$

$

Not available

42

Poulan 530089249

Transister Unit

$

$

Not available

43

Poulan 530089337

Screw & Washer

$

$

Not available

44

Poulan 530089250

Lead Wire

$

$

Not available

45

Poulan 530089243

Woodruff Key

$

$

Not available

46

Poulan 530089254

Fuel Tube

$

$

Not available

$

$

Not available

49

$

$

Not available

50

Poulan 530089345

Screw & Washer

$

$

Not available

51

Poulan 530089284

Element Cleaner

$

$

Not available

52

Poulan 530089255

Carburetor Gasket

$1.49

$

In Stock, only 1 left!

0

53

$

$

Not available

54

$

$

Not available

55

Poulan 530089332

Screw & Washer

$

$

Not available

56

Poulan 530089248

Ignition Coil

$133.99

$

Usually ships in 3-10 days

0

57

$

$

Not available

58

Poulan 530089303

Starter Rope

$

$

Not available

59

Poulan 530089302

Starter Knob

$10.99

$

Usually ships in 3-10 days

0

60

$34.99

$

Usually ships in 3-10 days

0

$

$

Not available

62

Poulan 530089297

Friction Spring

$

$

Not available

63

Poulan 530089296

Return Spring

$6.49

$

Usually ships in 3-10 days

0

64

$8.99

$

Usually ships in 3-10 days

0

65

Poulan 530089298

Friction Plate

$6.49

$

Usually ships in 3-10 days

0

66

$

$

Not available

$

$

Not available

68

Poulan 530089295

Starter Pulley

$

$

Not available
