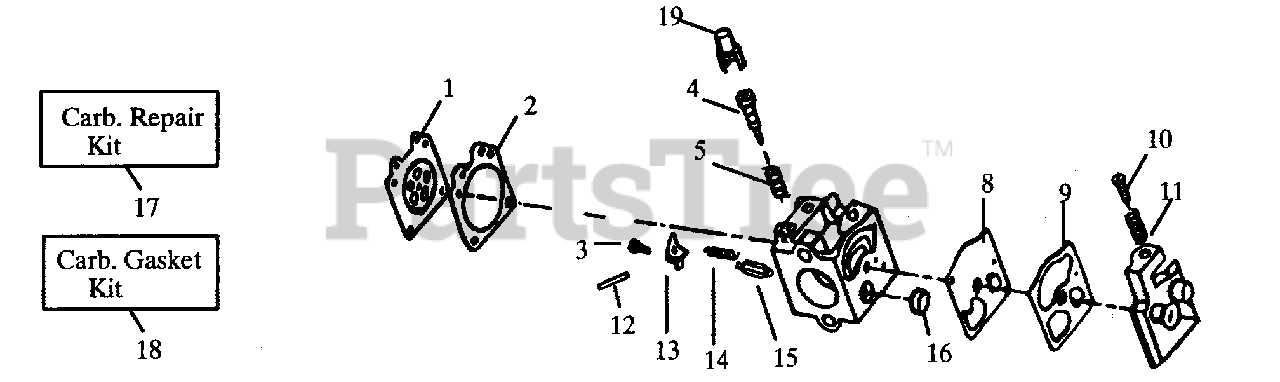

PP 432 - Poulan Pro Blower CARBURETORS - WT-141 FOR TYPE 1, WT-141A FOR TYPE 2 Parts Diagram

Blower

CARBURETORS - WT-141 FOR TYPE 1, WT-141A FOR TYPE 2 Parts Diagram

  • Title
1

Poulan 530035014

Metering Diaphragm
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

2

Poulan 530035151

WT-141 - T 1

Note: Included in Carburetor Kwik Repair Kit.

$3.99

$

In Stock, Qty 8

0

2

Poulan 530035378

WT-141A - T 2

Note: Included in Carburetor Kwik Repair Kit.

$

$

Not available

3

Poulan 530035016

Metering Lever Pin Screw

$7.99

$

In Stock, Qty 6

0

4

Poulan 530035268

WT-141 - T 1

$7.99

$

Usually ships in 3-10 days

0

Poulan 530035375

WT-141A - T 2

$

$

Not available

5

Poulan 530035214

WT-141 - T 1
(Superseded to 530035293)

$4.99

$

Usually ships in 3-10 days

0

5

Poulan 530035376

WT-141A - T 2

$

$

Not available

8

Poulan 530035166

Fuel Pump Diaphragm
(Superseded to 504130807)

$31.99

$

In Stock, Qty 6

0

9

Poulan 530035164

Fuel Pump Gasket
(Superseded to 504130906)

$11.99

$

In Stock, only 3 left!

0

10

Poulan 530035203

Idle Speed Screw

$8.99

$

Usually ships in 3-10 days

0

11

Poulan 530035208

Idle Speed Spring
(Superseded to 501667801)

$

$

Not available

12

Poulan 530035028

Metering Lever Pin
(Superseded to 505520125)

Note: Included in Carburetor Kwik Repair Kit.

$7.99

$

In Stock, only 3 left!

0

13

Poulan 530035031

Metering Lever
(Superseded to 505520127)

Note: Included in Carburetor Kwik Repair Kit.

$5.99

$

Usually ships in 3-10 days

0

14

Poulan 530035188

WT-141 - T 1

Note: Included in Carburetor Kwik Repair Kit.

$4.99

$

In Stock, Qty 10

0

14

Poulan 530035377

WT-141A - T 2

Note: Included in Carburetor Kwik Repair Kit.

$

$

Not available

15

Poulan 530035106

Inlet Needle Valve
(Superseded to 503117001)

$22.99

$

In Stock, Qty 8

0

16

Poulan 530035178

Fuel Inlet Screen

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 530035264

Carb. Kwik Repair Kit

$

$

Not available

18

Poulan 530035219

Carb. Gasket/Diaphragm Kit
(Superseded to 530069844)

$20.99

$

In Stock, Qty 5

0

19

Poulan 530038403

Limiter Cap (Gold)

$4.99

$

In Stock, only 2 left!

0
