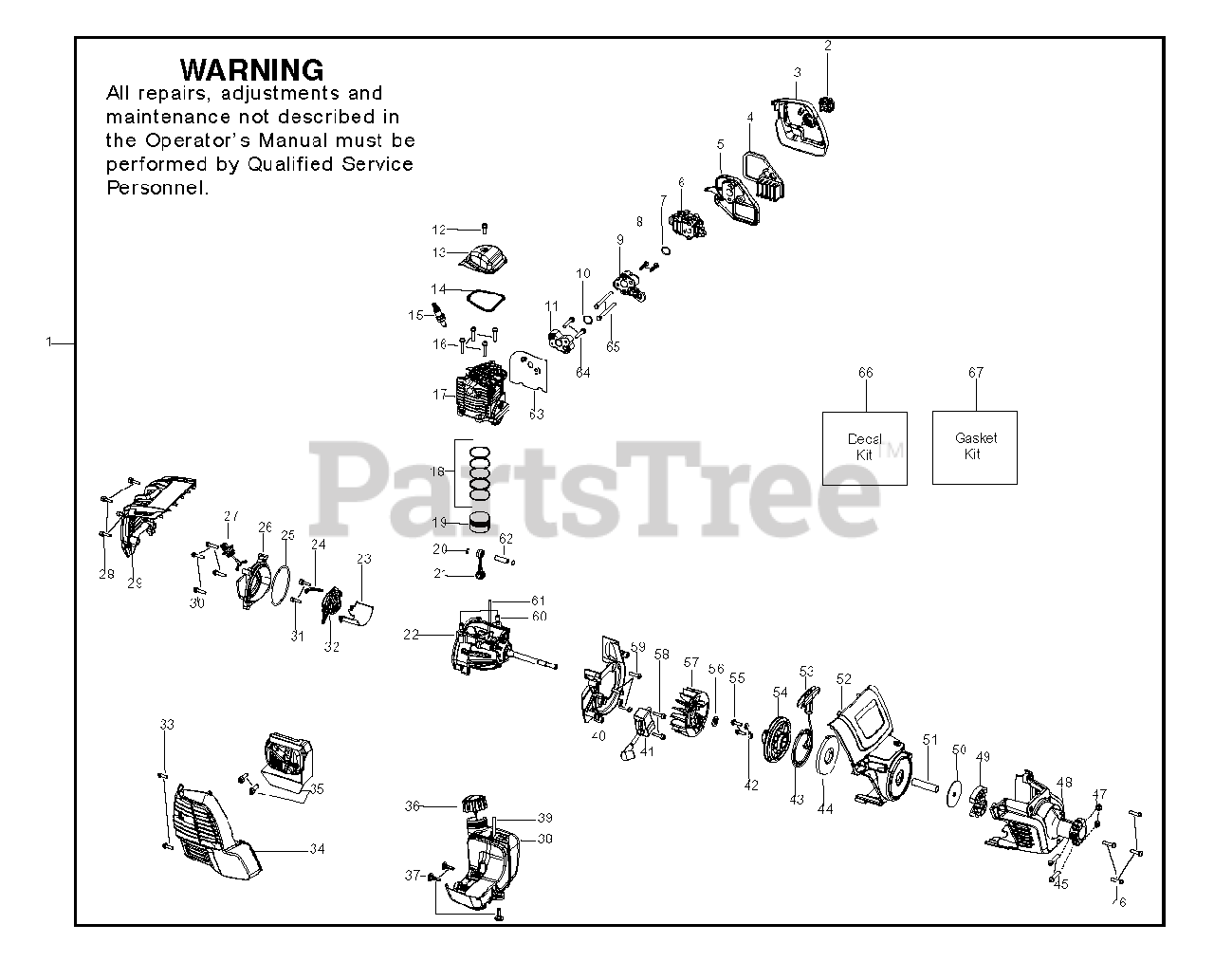

PP 428 S - Poulan Pro 4-Cycle Straight Shaft Trimmer (2012-02) ENGINE Parts Diagram

4-Cycle Straight Shaft Trimmer

ENGINE Parts Diagram

  • Title
1

Poulan 579629601

KIT SHORT BLOCK SERVICE

$

$

Not available

2

Poulan 576375001

ASSY AIRBOX KNOB BLACK

$3.99

$

In Stock, only 3 left!

0

3

Poulan 579629301

KIT AIRBOX COVER SERVICE

$

$

Not available

4

Poulan 530016464

Air Filter, Felt

$9.49

$

In Stock, Qty 20+

0

5

Poulan 579629201

KIT AIRBOX BASE SERVICE

$

$

Not available

6

Poulan 578982101

CARBURETOR

$79.99

$

Usually ships in 3-10 days

0

7

Poulan 578951901

RING CARB SEALING

$3.49

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 16

0

9

Poulan 579650601

ADAPTER KIT CARB SERVICE

$

$

Not available

10

Poulan 578951901

RING CARB SEALING

$3.49

$

Usually ships in 3-10 days

0

11

Poulan 579650501

KIT ADAPTER CYL SERVICE

$

$

Not available

12

Poulan 575962401

SCREW M5-0.8 W/COPPER WAS

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 574831601

COVER ROCKER

$

$

Not available

14

Poulan 577821801

SEAL ROCKER COVER

$

$

Not available

15

Poulan 545236001

PLUG SPARK 10MM

$

$

Not available

16

Poulan 575953101

SCREW M5-0.80X25MM

$

$

Not available

17

Poulan 579628601

KIT CYLINDER SERVICE

$

$

Not available

18

Poulan 579629001

KIT PISTON RINGS SERVICE

$

$

Not available

19

Poulan 545231201

PISTON PLATED 4S

$

$

Not available

20

Poulan 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 1 left!

0

21

Poulan 578018602

ASSY CONNECTING ROD 4S

$

$

Not available

22

Poulan 579629401

KIT CRANKCASE SERVICE

$

$

Not available

23

Poulan 578894901

BAFFLE CRANKCASE

$4.99

$

In Stock, only 1 left!

0

24

Poulan 577887301

HOSE MOLDED BREATHER

$4.99

$

Usually ships in 3-10 days

0

25

Poulan 545232601

SEAL REAR PLUG

$4.99

$

In Stock, only 1 left!

0

26

Poulan 579155101

PLUG REAR

$24.99

$

Usually ships in 3-10 days

0

27

Poulan 576014001

RETAINER OIL CAP

$

$

Not available

28

$

$

Not available

29

Poulan 579629501

KIT REAR SHROUD SERVICE

$9.99

$

Usually ships in 3-10 days

0

30

Poulan 575962701

SCREW M5 0.8 X 20MM

$

$

Not available

31

Poulan 575962601

SCREW M4 0.7 X 16MM

$

$

Not available

32

Poulan 579629101

KIT BREATHER ASSY SERVICE

$

$

Not available

33

Poulan 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

34

Poulan 576356901

COVER MUFFLER BLACK

$13.99

$

Usually ships in 3-10 days

0

35

Poulan 579628701

KIT MUFFLER SERVICE

$13.99

$

Usually ships in 3-10 days

0

36

Poulan 575264601

FUEL CAP ASSY W/RETAINER

$26.99

$

Usually ships in 3-10 days

0

37

Poulan 576356301

RETAINER FUEL TANK

$

$

Not available

38

Poulan 545236101

FUEL TANK ASSY

$27.99

$

Usually ships in 3-10 days

0

39

Poulan 579628901

FUEL LINE KIT

$

$

Not available

40

Poulan 545233101

SCROLL 4S

$8.99

$

Usually ships in 3-10 days

0

41

Poulan 545230501

MODULE IGNITION 4S

$15.99

$

Usually ships in 3-10 days

0

42

Poulan 530027523

RETAINER

$7.49

$

In Stock, only 2 left!

0

43

Poulan 575670601

ROPE ASSY STARTER

$34.99

$

Usually ships in 3-10 days

0

44

Poulan 545054901

SPRING STARTER SA
(Superseded to 545008014)

$10.99

$

In Stock, only 1 left!

0

45

Poulan 575953101

SCREW M5-0.80X25MM

$

$

Not available

46

Poulan 575962701

SCREW M5 0.8 X 20MM

$

$

Not available

$

$

Not available

48

Poulan 576817101

ASSY CLUTCH COVER BLACK

$

$

Not available

49

Poulan 530055122

ASSEMBLY CLUTCH

$20.99

$

In Stock, Qty 5

0

50

Poulan 530094189

WASHER-CLUTCH

$6.99

$

In Stock, only 1 left!

0

51

Poulan 530059758

SPACER FLYWHEEL

$5.99

$

Usually ships in 3-10 days

0

52

Poulan 545230101

ASSY FAN HSG 4S

$28.99

$

In Stock, only 2 left!

0

53

Poulan 574781701

HANDLE STARTER ROPE

$43.99

$

Usually ships in 3-10 days

0

$

$

Not available

55

Poulan 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

56

Poulan 530016463

WASHER CLUTCH

$6.99

$

In Stock, only 3 left!

0

57

Poulan 575881601

FLYWHEEL ASSY

$34.99

$

Usually ships in 3-10 days

0

58

Poulan 575953201

SCREW M4-0.7X22.225MM

$

$

Not available

59

Poulan 575962701

SCREW M5 0.8 X 20MM

$

$

Not available

60

Poulan 545232801

PIN ALIGNMENT 4S

$2.49

$

Usually ships in 3-10 days

0

61

Poulan 575533102

HOSE BREATHER SHORT

$3.99

$

Usually ships in 3-10 days

0

62

Poulan 530032159

PISTON PIN

$4.99

$

In Stock, only 1 left!

0

63

Poulan 545237501

GASKET AIRDAM

$4.99

$

Usually ships in 3-10 days

0

64

Poulan 575953101

SCREW M5-0.80X25MM

$

$

Not available

65

Poulan 579073201

BOLT CARBURETOR 4S30 55MM

$

$

Not available

66

Poulan 579664601

KIT DECAL

$7.49

$

Usually ships in 3-10 days

0

67

Poulan 579628801

KIT GASKET SERVICE

$

$

Not available
