PP 428 C - Poulan Pro 4-Cycle Curved Shaft Trimmer (2012-02) SHAFT HANDLE Parts Diagram

4-Cycle Curved Shaft Trimmer

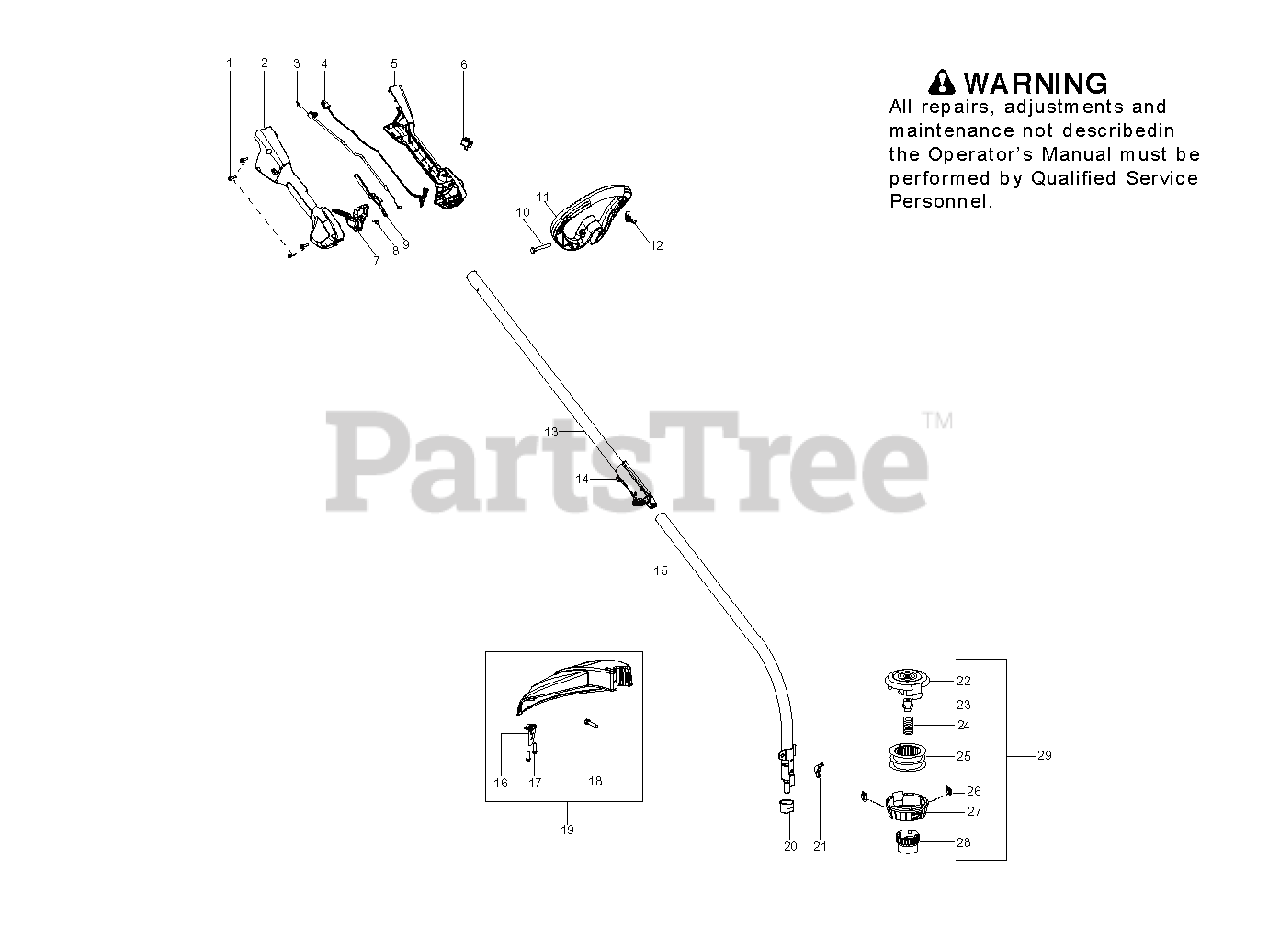

SHAFT HANDLE Parts Diagram

  • Title

1

Poulan 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, only 2 left!

0

2

Poulan 575506201

THROTTLE HSG RH BLACK

$7.49

$

Usually ships in 3-10 days

0

3

Poulan 578928701

ASSY THROTTLE CABLE TRMR

$6.99

$

Usually ships in 3-10 days

0

4

Poulan 575784101

ASSY WIRE HARNESS

$2.49

$

Usually ships in 3-10 days

0

5

Poulan 575506301

THROTTLE HSG LH BLACK

$7.49

$

Usually ships in 3-10 days

0

6

Poulan 545067901

STOP SWITCH
(Superseded to 575315801)

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 576632201

TRIGGER YELLOW

$8.99

$

Usually ships in 3-10 days

0

8

Poulan 575671501

SPRING TRIGGER

$

$

Not available

9

Poulan 576632401

LOCKOUT YELLOW

$

$

Not available

10

Poulan 530015786

BOLT 1/4-20 X 2 SQUARE

$4.99

$

In Stock, only 4 left!

0

11

Poulan 530057546

HANDLE ASSIST 1"
(Superseded to 530058583)

$6.99

$

Usually ships in 3-10 days

0

12

Poulan 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

13

Poulan 577972201

UPPER DRIVESHAFT

$42.99

$

Usually ships in 3-10 days

0

14

Poulan 545213801

ASSY COUPLER BLACK
(Superseded to 587119302)

$8.99

$

In Stock, only 1 left!

0

15

Poulan 578297001

ASSY SHAFT LOWER CURVED

$40.99

$

Usually ships in 3-10 days

0

16

Poulan 530052286

LINE CUTTER

$

$

Not available

17

Poulan 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

18

Poulan 530015820

BOLT, TYPE 2

$4.99

$

In Stock, only 1 left!

0

19

Poulan 579664401

KIT LINE SHIELD CURVED

$10.99

$

Usually ships in 3-10 days

0

20

Poulan 574418301

DRIVER

$4.99

$

Usually ships in 3-10 days

0

21

Poulan 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

22

Poulan 537419303

Trimmer Head Housing

$11.99

$

Usually ships in 3-10 days

0

23

Poulan 537419901

Adapter

$11.99

$

In Stock, only 4 left!

0

24

Poulan 537338801

Spring

$6.49

$

In Stock, only 2 left!

0

25

Poulan 952711636

ACCY PPR TNG VII SPOOL .080

$

$

Not available

26

Poulan 505496401

EYELET (SUBS TO COVER W/EYELET
(Superseded to 545003365)

$9.49

$

In Stock, only 1 left!

0

27

Poulan 505506201

COVER
(Superseded to 545003365)

$9.49

$

In Stock, only 1 left!

0

28

Poulan 537419601

Knob

$6.99

$

In Stock, Qty 20+

0

29

Poulan 952701717

PPR TNG 7 .080 HEAD RH
(Superseded to 590267601)

$32.99

$

In Stock, only 2 left!

0
