PP 4218 - Poulan Pro Chainsaw (2012-01) ENGINE Parts Diagram

Chainsaw

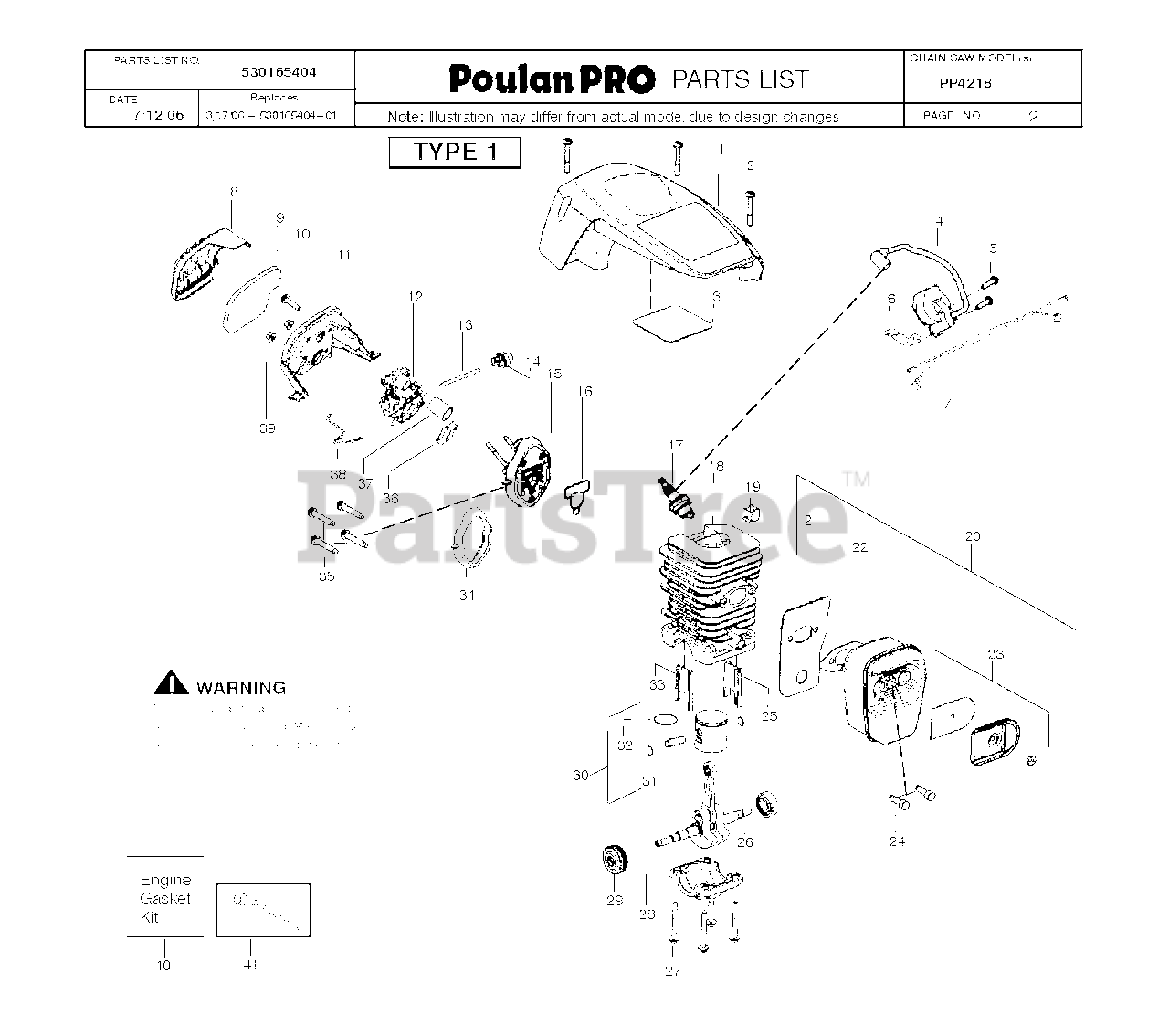

ENGINE Parts Diagram

  • Title

1

Poulan 530058837

SHIELD CYLINDER BLACK

Note: . 3

$15.99

$

Usually ships in 3-10 days

0

2

Poulan 530016153

SCREW

$6.49

$

In Stock, only 2 left!

0

3

Poulan 530059006

TAPE REFLECTOR

$

$

Not available

4

Poulan 530039238

MODULE

$74.99

$

In Stock, only 4 left!

0

5

Poulan 530016432

SCREW M5.38-14X22.225MM

$6.49

$

In Stock, Qty 7

0

6

Poulan 530047442

GROUND STRAP

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 530057943

ASSY WIRE HARNESS

$7.99

$

In Stock, Qty 12

0

8

Poulan 530058687

COVER, AIR FILTER

$5.99

$

In Stock, Qty 9

0

9

Poulan 530057925

FILTER AIR

$5.99

$

In Stock, only 1 left!

0

10

Poulan 530016425

SCREW M5-0.8X16

$6.49

$

In Stock, only 1 left!

0

11

Poulan 530057892

HSG FILTER

$8.99

$

Usually ships in 3-10 days

0

12

Poulan TBD

Note: CARBURETOR

$

$

Not available

12

Poulan 530035590

CARBURETOR
(Superseded to 545070601)

Note: ZAMA W-26

$56.99

$

In Stock, Qty 6

0

13

Poulan 530069247

KIT-LINE

Note: SMALLL

$7.99

$

In Stock, Qty 20+

0

14

Poulan 530047721

AIR PURGE

$9.49

$

Usually ships in 3-10 days

0

15

Poulan 530071889

KIT CARB ADAPTOR

Note: . 16 34 37

$26.99

$

In Stock, only 1 left!

0

16

Poulan 530071894

KIT GASKET SAS

$11.99

$

Usually ships in 3-10 days

0

17

Poulan 952030150

SPARK PLUG (RCJ-7Y)

Note: RCJ-7Y

$3.49

$

In Stock, Qty 20+

0

18

Poulan 530071884

KIT CYLINDER

Note: . 25 33

$56.99

$

In Stock, only 1 left!

0

19

Poulan 530016136

CLIP-HIGH TENSION LEAD

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 530071887

KIT MUFFLER
(Superseded to 545006007)

Note: . 21-23 24

$26.99

$

Usually ships in 3-10 days

0

21

Poulan 530057942

PLATE BACK MUFFLER

$

$

Not available

22

Poulan 530071894

KIT GASKET SAS

Note: KIT

$11.99

$

Usually ships in 3-10 days

0

23

Poulan 530071886

KIT SPARK ARRESTOR

$

$

Not available

24

Poulan 530016338

SCREW MUFFLER

$3.99

$

In Stock, only 2 left!

0

25

Poulan 530057885

INSERT TRANSFER PORT LEFT
(Superseded to 545015301)

Note: BLACK

$4.99

$

In Stock, only 4 left!

0

26

Poulan 530012537

ASSY CRANKSHAFT AND ROD
(Superseded to 545112901)

$66.99

$

Usually ships in 3-10 days

0

27

Poulan 530016417

BOLT M6-1.0 X 25MM

$6.49

$

In Stock, Qty 5

0

28

Poulan 530057941

CRANKCASE CASTING

$8.99

$

In Stock, only 1 left!

0

29

Poulan 530056363

BEARING & SEAL ASSEMBLY

$18.99

$

In Stock, only 2 left!

0

30

Poulan 530071883

KIT PISTON

Note: . 31 32

$34.99

$

In Stock, only 4 left!

0

31

Poulan 530015697

C-CLIP,PSTN PIN 36/41

$6.49

$

In Stock, Qty 6

0

32

Poulan 530038729

RING-PISTON
(Superseded to 545160401)

$6.49

$

Usually ships in 3-10 days

0

33

Poulan 530057886

INSERT TRANSFER PORT RIGHT
(Superseded to 545015401)

Note: GRAY

$6.49

$

In Stock, only 3 left!

0

34

Poulan 530071894

KIT GASKET SAS

Note: KIT

$11.99

$

Usually ships in 3-10 days

0

35

Poulan 530016426

SCREW M5-0.8X30MM

$6.49

$

In Stock, only 2 left!

0

36

Poulan 530071894

KIT GASKET SAS

Note: KIT

$11.99

$

Usually ships in 3-10 days

0

37

Poulan 530057926

TUBE INTAKE

$5.99

$

In Stock, Qty 6

0

38

Poulan 530057909

WIRE THROTTLE

$

$

Not available

39

Poulan 530016101

NUT

$6.49

$

In Stock, only 2 left!

0

40

Poulan 530071894

KIT GASKET SAS

Note: . 16 22 34 36

$11.99

$

Usually ships in 3-10 days

0

41

Poulan 530031163

WRENCH-BAR

$9.99

$

In Stock, Qty 12

0

Poulan 530165361

OPERATOR´S MANUAL GAS SAW PAR

Note: NOT SHOWN

$7.49

$

Usually ships in 3-10 days

0

Poulan 530059107

DECAL WARNING

$

$

Not available
