PP 420 - Poulan Pro Blower POWER UNIT Parts Diagram

Blower

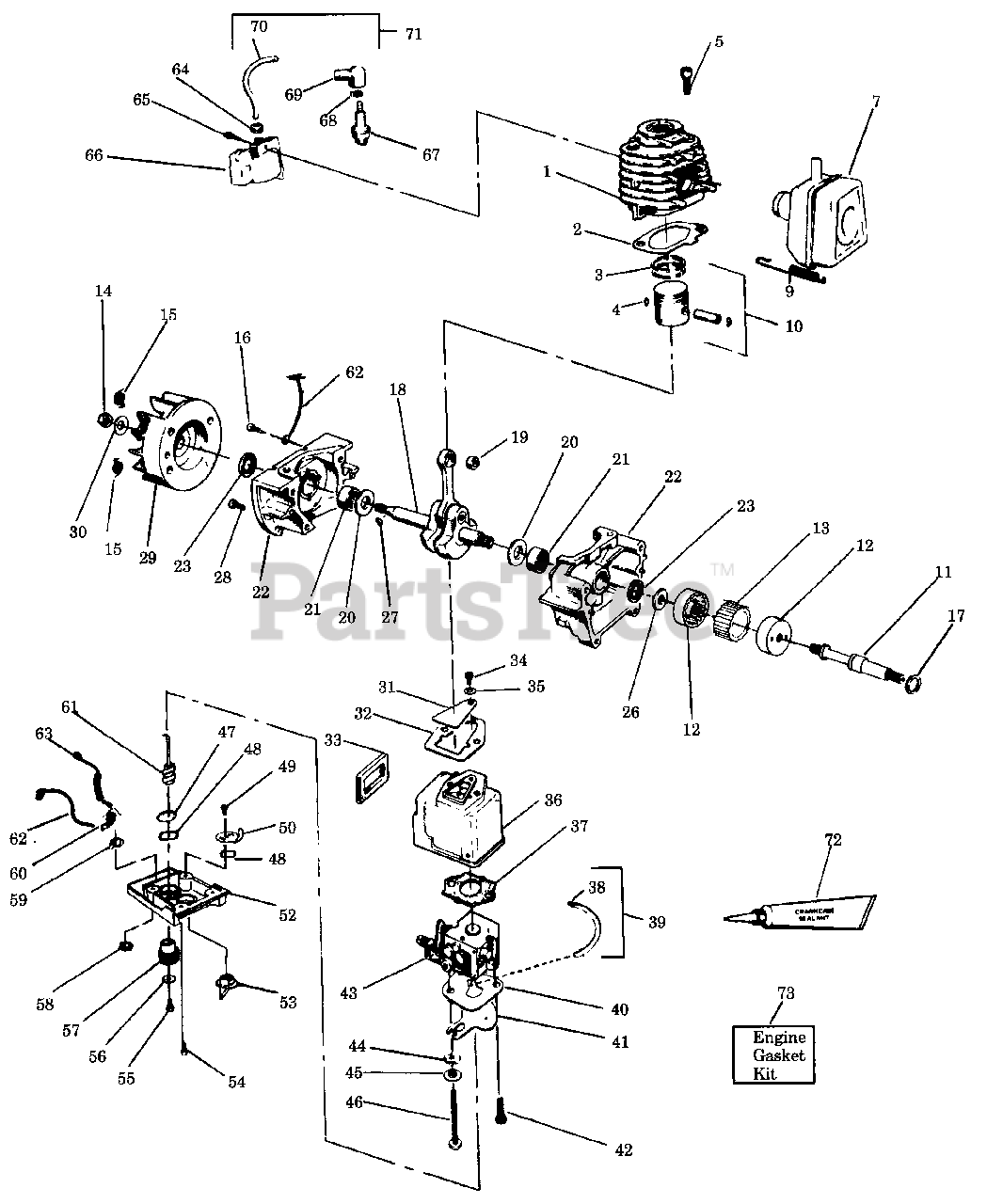

POWER UNIT Parts Diagram

  • Title

1

Poulan 530012252

Cylinder

$24.99

$

Usually ships in 3-10 days

0

2

Poulan 530019111

Cylinder Gasket
(Superseded to 530069219)

$

$

Not available

3

Poulan 530026681

Piston Ring

$

$

Not available

4

Poulan 530015162

Wrist Pin Retainer

$6.49

$

In Stock, only 2 left!

0

5

Poulan 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 530069245

Muffler Ass'y.

$11.99

$

Usually ships in 3-10 days

0

9

Poulan 530024903

Muffler Attachment Spring
(Superseded to 530036409)

$

$

Not available

10

Poulan 530069203

Piston Kit

Note: (Incl. #3,4 & Pin)

$

$

Not available

11

Poulan 530069242

Shaft Kit

Note: (Incl. #17)

$

$

Not available

12

Poulan 530094218

Shaft Coupling

$

$

Not available

13

Poulan 530094243

Plastic Coupling

$

$

Not available

14

Poulan 530626605

Flywheel Nut

$5.99

$

Usually ships in 3-10 days

0

15

Poulan 530023817

Starter Dog Spring

$6.49

$

In Stock, Qty 5

0

16

Poulan 530015004

Screw

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 530015763

Washer

$1.49

$

Usually ships in 3-10 days

0

18

Poulan 530010853

Crankshaft & Rod Ass'y.

$84.99

$

Usually ships in 3-10 days

0

19

Poulan 530032092

Piston Pin Bearing

$9.99

$

Usually ships in 3-10 days

0

20

Poulan 530015351

Washer

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 530032029

Crankshaft Bearing

$10.99

$

In Stock, only 2 left!

0

22

Poulan 530010757

Crankcase Ass'y.

Note: (Incl. #21,23 & Qty. 4 of 28)

$

$

Not available

23

Poulan 530019059

Crankcase Seal

$

$

Not available

26

Poulan 530001717

Coupling Washer

$3.99

$

In Stock, only 1 left!

0

27

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530015168

Screw

$

$

Not available

29

Poulan 530039111

Flywheel Ass'y.
(Superseded to 530047198)

$

$

Not available

30

Poulan 530015127

Flywheel Washer

$6.49

$

Usually ships in 3-10 days

0

31

Poulan 530024438

Reed Valve

$

$

Not available

32

Poulan 530019108

Carburetor Case to Crank-case Gasket

$4.99

$

Usually ships in 3-10 days

0

33

Poulan 530019105

Carburetor Case Seal

$

$

Not available

34

Poulan 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

35

Poulan 530023367

Washer

$

$

Not available

36

Poulan 530026818

Carburetor Case

$9.99

$

Usually ships in 3-10 days

0

37

Poulan 530019157

Carburetor Gasket

$

$

Not available

38

Poulan 530026981

Fuel Line Fitting

$6.49

$

In Stock, Qty 7

0

39

Poulan 530010875

Fuel Line & Fitting Ass'y.

$

$

Not available

40

Poulan 530026797

Choke Guide Plate

$

$

Not available

41

Poulan 530026772

Choke Shutter

$

$

Not available

42

Poulan 530015674

Screw

$1.99

$

Usually ships in 3-10 days

0

43

Poulan 530035196

Carburetor
(Superseded to 530035183)

$

$

Not available

44

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

45

Poulan 530015673

Spacer

$3.99

$

Usually ships in 3-10 days

0

46

Poulan 530015630

Screw

$3.99

$

Usually ships in 3-10 days

0

47

Poulan 530015654

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

48

Poulan 530015147

Wave Washer

$4.99

$

Usually ships in 3-10 days

0

49

Poulan 530015407

Screw

$

$

Not available

50

Poulan 530026773

Choke Actuator

$1.99

$

Usually ships in 3-10 days

0

52

Poulan 530026764

Carb. Case Cover

$4.99

$

Usually ships in 3-10 days

0

53

Poulan 530023807

Choke Knob

$2.49

$

In Stock, only 2 left!

0

54

Poulan 530015675

Screw

$3.99

$

In Stock, only 1 left!

0

55

Poulan 530015660

Screw

$3.99

$

Usually ships in 3-10 days

0

56

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

57

Poulan 530015614

Throttle Knob

$

$

Not available

58

Poulan 530023575

Grounding Switch Nut
(Superseded to 530002582)

$

$

Not available

59

Poulan 530024569

Washer

$

$

Not available

60

Poulan 530069204

Toggle Switch Kit

Note: (Incl. #58 & 59)

$

$

Not available

61

Poulan 530026771

Throttle Wire Ass'y.

$

$

Not available

62

Poulan 530026951

Ignition Wire

$

$

Not available

63

Poulan 530026829

Ground Wire

$

$

Not available

64

Poulan 530024435

Plug Wire Grommet

$3.99

$

Usually ships in 3-10 days

0

65

Poulan 530015128

Screw
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

66

Poulan 530039124

Ignition Module

$

$

Not available

67

Poulan 530030005

Spark Plug (CJ-8)
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

68

Poulan 530003933

Spark Plug Lead Connector
(Superseded to 507475326)

$

$

Not available

69

Poulan 530003934

Spark Plug Boot

$

$

Not available

70

Poulan 530039082

High Tension Lead Wire

$

$

Not available

71

Poulan 530039103

High Tension Lead Ass'y.

Note: (Incl. #68,69 & 70)

$

$

Not available

72

Poulan 530030054

Crankcase Sealant

Note: (Not Supplied With Unit)

$

$

Not available

73

Poulan 530069219

Engine Gasket Kit

Note: (Inc. 23,32,33,37)

$

$

Not available
