PP 42 SZ (967947801-00) - Poulan Pro 42" Zero-Turn Mower (2018-09) SEAT Parts Diagram

42" Zero-Turn Mower

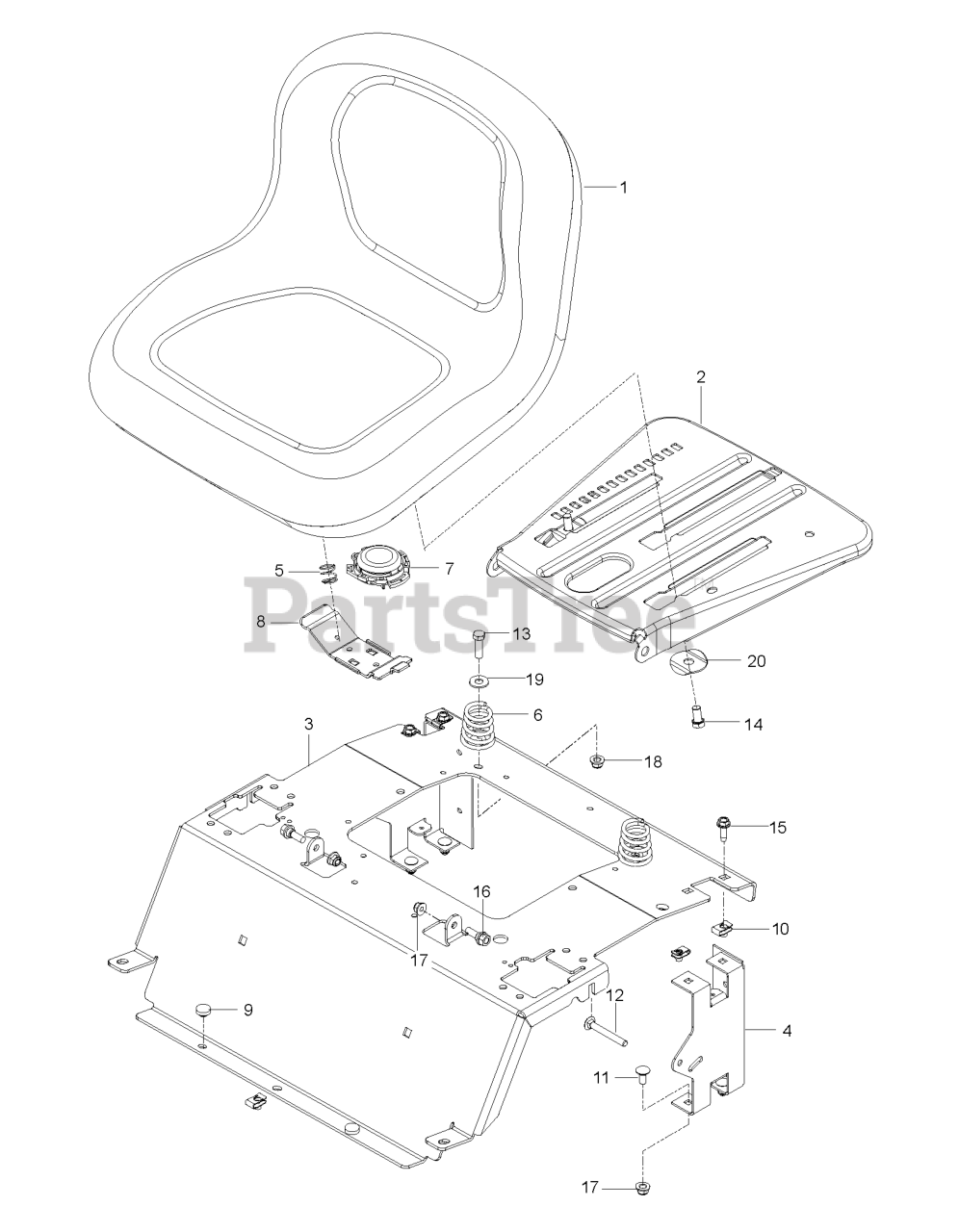

SEAT Parts Diagram

  • Title

1

Poulan 532406625

SEAT.TG150.BLK.NLOGO.

$265.99

$

Usually ships in 3-10 days

0

2

Poulan 587232002

PLATE.PNT.SEAT.SLIDE.3PT.EDIP
(Superseded to 596768801)

$56.99

$

Usually ships in 3-10 days

0

3

Poulan 589761214

NEEDS DESCRIPTION

Note: BLK

$

$

Currently unavailable

4

Poulan 580308202

SUPPORT REAR SEAT BLACK

$22.99

$

Usually ships in 3-10 days

0

5

Poulan 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 589483501

SPRING.COMPRESS.SEAT.TAPERED

$9.49

$

In Stock, only 2 left!

0

7

Poulan 539132140

SWITCH, SEAT N/C

$14.99

$

Usually ships in 3-10 days

0

8

Poulan 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK
(Superseded to 595088102)

$5.99

$

In Stock, Qty 7

0

9

Poulan 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

10

Poulan 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

11

Poulan 872140506

Bolt, Carriage 5/16-18 x 3/4 Gr. 5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

12

Poulan 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 874780620

Bolt Fin Hex 3/8 - 16 UNC x 1-1/4 (AYP part number)
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

14

Poulan 874780612

Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number)

$7.49

$

In Stock, only 2 left!

0

15

Poulan 817490512

Screw, Hex Washer Head, Threaded, Rolling 5/16-18 x 3/4 Type TT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

16

Poulan 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

18

Poulan 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

19

Poulan 819141614

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 8

0

20

Poulan 501051801

WASHER.WINGED.3/8ID.1.5OD

$4.99

$

In Stock, only 1 left!

0

Poulan 532421499

KIT.ARMREST.15"TEX.SEAT
(Superseded to 582384601)

$68.99

$

In Stock, only 1 left!

0
