PP 42 SZ (967947801-00) - Poulan Pro 42" Zero-Turn Mower (2018-09) HYDRAULIC PUMP - MOTOR Parts Diagram

42" Zero-Turn Mower

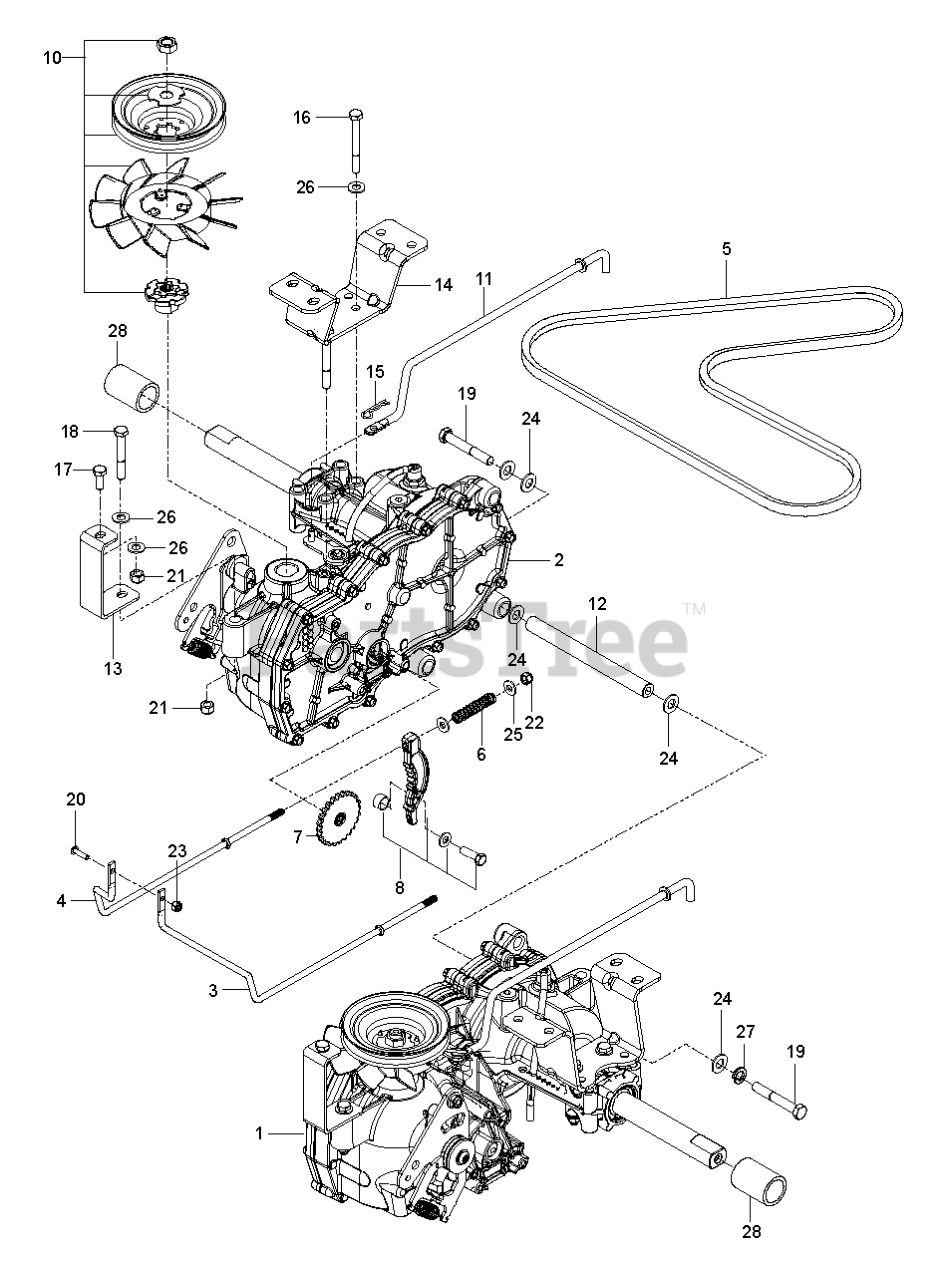

HYDRAULIC PUMP - MOTOR Parts Diagram

  • Title

1

Poulan 596247401

TRANSMISSION EZT; DD; LONG; LE

$1253.99

$

Usually ships in 3-10 days

0

2

Poulan 596247402

TRANSMISSION EZT; DD; LONG; RI

$1253.99

$

Usually ships in 3-10 days

0

3

Poulan 574030501

LINKAGE.BRAKE.LT
(Superseded to 596930401)

$7.99

$

In Stock, Qty 6

0

4

Poulan 574030502

LINKAGE, BRAKE RT
(Superseded to 596930701)

$7.49

$

In Stock, Qty 5

0

5

Poulan 539110411

BELT, HYDRO PUMP

$31.99

$

In Stock, Qty 11

0

6

Poulan 539110342

SPRING
(Superseded to 596299801)

$3.99

$

In Stock, Qty 9

0

7

Poulan 539120080

HG_DISC COG BRAKE

$34.99

$

Usually ships in 3-10 days

0

8

Poulan 539120079

HG_KIT BRAKE ARM (EZT)

$37.99

$

Usually ships in 3-10 days

0

10

Poulan 501403602

KIT FAN/PULLEY 72137

$133.99

$

In Stock, only 2 left!

0

11

Poulan 522941101

LINKAGE, BYPASS, EZT

$14.99

$

Usually ships in 3-10 days

0

12

Poulan 510184104

SPACER TUBE EZT
(Superseded to 593852803)

$13.99

$

In Stock, Qty 6

0

13

Poulan 580806502

SUPPORT.FRONT.TRANS.PNTX431

$6.99

$

Usually ships in 3-10 days

0

14

Poulan 580806602

BRACKET.EZT.MOUNT.REAR.PNTX431

$17.99

$

In Stock, only 2 left!

0

15

Poulan 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 874780544

Bolt Fin Hex 5/16 - 18 UNC x 2.75 (AYP part number)
(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

18

Poulan 874780536

Bolt Fin Hex 5/16-18 x 2-1/4 (AYP part number)

$

$

Not available

19

Poulan 539990637

HCS 3/8C X 2 1/2
(Superseded to 596434201)

$4.99

$

In Stock, only 2 left!

0

20

Poulan 874811012

SCREW.TRSHD.SL.#10-24UNC X

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 873800500

Locknut, Hex, with Washer Insert 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

22

Poulan 539976978

NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.99

$

In Stock, Qty 20+

0

24

Poulan 819131316

Washer 13/32 x 1-3/16 x 12 Gauge (AYP part number)

$4.99

$

In Stock, Qty 5

0

25

Poulan 819091016

Washer 9/32 x 5/8 x 16 Gauge (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 7

0

26

Poulan 819111116

Washer, Nut Lock Hex w/Ins. 5/6-18 (AYP part number)
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

27

Poulan 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

28

Poulan 596518002

COVER EZT DD AXLE COVER 11.52

$3.49

$

Usually ships in 3-10 days

0
