PP 42 SZ (967947801-00) - Poulan Pro 42" Zero-Turn Mower (2018-09) ENGINE PLATE Parts Diagram

42" Zero-Turn Mower

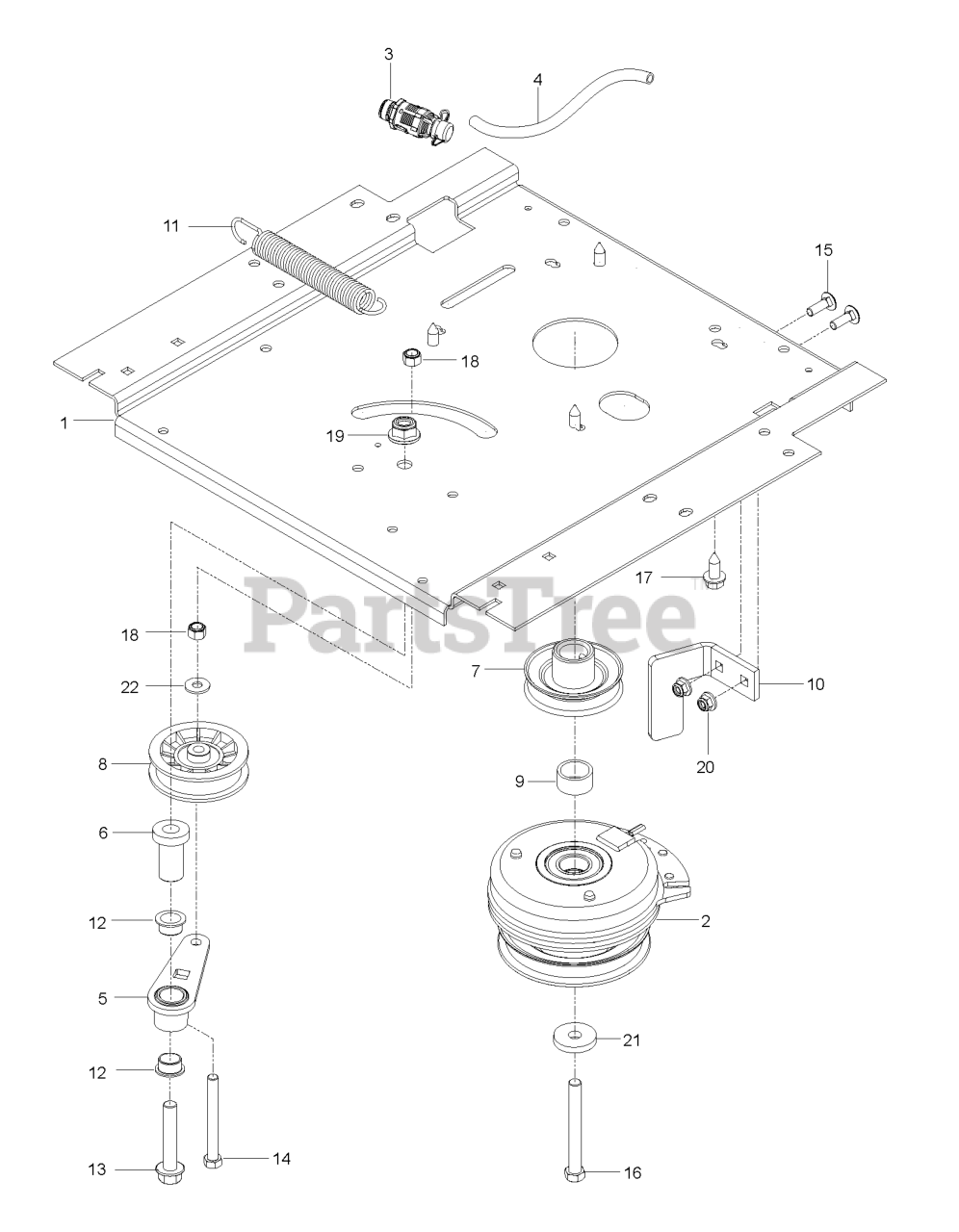

ENGINE PLATE Parts Diagram

  • Title

1

Poulan 593898602

PLATE ENGINE; RZ, 23IN BLACK

$170.99

$

Usually ships in 3-10 days

0

2

Poulan 585521101

CLUTCH.105.FT-LBS

$341.99

$

In Stock, only 1 left!

0

3

Poulan 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, Qty 5

0

4

Poulan 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 6

0

5

Poulan 532448145

ARM IDLER
(Superseded to 583593901)

$13.99

$

In Stock, only 3 left!

0

6

Poulan 582538901

SPINDLE.IDLER
(Superseded to 582538902)

$5.99

$

In Stock, only 3 left!

0

7

Poulan 587537401

PULLEY.ENGINE

$26.99

$

In Stock, only 3 left!

0

8

Poulan 539110311

PULLEY, IDLER

$17.99

$

In Stock, Qty 20+

0

9

Poulan 539112252

T & B SPACER
(Superseded to 596401101)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 510246002

STOP, CLUTCH, BLACK

$27.99

$

Usually ships in 3-10 days

0

11

Poulan 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 7

0

12

Poulan 501603701

BEARING.FLANGED.PLASTIC.3/4ID

$6.99

$

In Stock, only 2 left!

0

13

Poulan 582539501

BOLT.FLANGE.1/2-13 X 2.75.GRD5
(Superseded to 582539502)

$6.99

$

In Stock, Qty 7

0

14

Poulan 874520656

HCS 3/8-16X3-1/2 TAPBLT GR5 ZD

$

$

Not available

15

Poulan 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 581332804

CLUTCH BOLT7/16-20X3.5 GR524HR

$7.99

$

In Stock, only 2 left!

0

17

Poulan 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

18

Poulan 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

19

Poulan 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

20

Poulan 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

21

Poulan 532126197

Washer 1 - 1/2 OD x 15/32 ID x .250 (AYP part number)

$8.99

$

In Stock, only 3 left!

0

22

Poulan 819121414

Washer 3/8 x 7/8 x 14 Ga. (AYP part number)
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0
