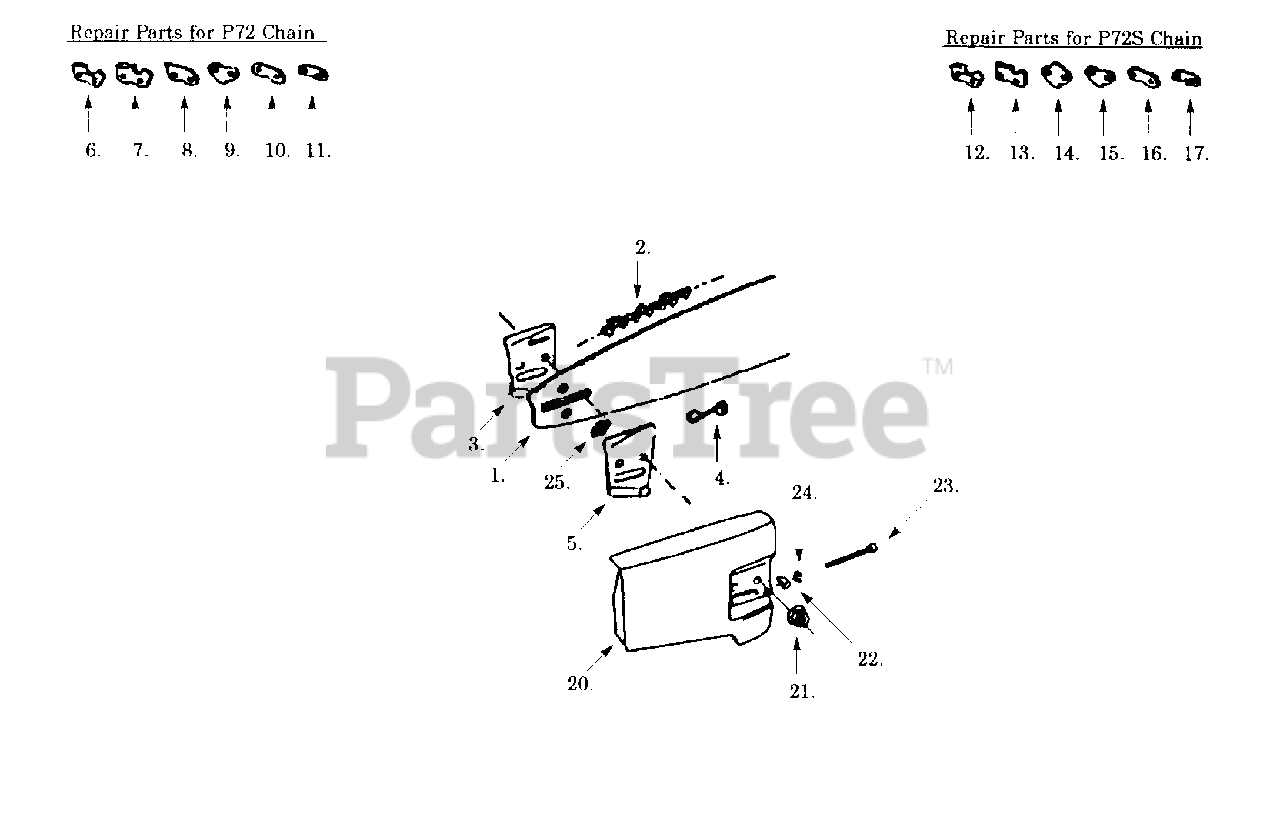

PP 395 - Poulan Pro Chainsaw CHAIN & BAR Parts Diagram

Chainsaw

CHAIN & BAR Parts Diagram

  • Title

1

Poulan 952044312

16", 3/8 P, .050 G

$

$

Not available

1

Poulan 952044313

18", 3/8 P, .050 G

$

$

Not available

1

Poulan 952044314

20", 3/8 P, .050 G

$59.99

$

Usually ships in 3-10 days

0

1

Poulan 952044315

24", 3/8 P, .050 G

$

$

Not available

1

Poulan 952044316

28", 3/8 P, .050 G

$

$

Not available

1

Sprocket Nose Bar

$

$

Not available

1

Poulan 952044349

16", 3/8 P, .058 G

$

$

Not available

1

Poulan 952044350

18", 3/8 P, .058 G

$

$

Not available

1

Poulan 952044351

20", 3/8 P, .058 G

$

$

Not available

1

Poulan 952044352

24", 3/8 P, .058 G

$

$

Not available

1

Hard Tip Bar

$

$

Not available

1

Poulan 952044321

16", 3/8 P, .050 G

$

$

Not available

1

Poulan 952044322

20", 3/8 P, .050 G

$65.99

$

Usually ships in 3-10 days

0

1

Poulan 952044323

24", 3/8 P, .050 G

$

$

Not available

1

Hard Tip Bar

$

$

Not available

1

Poulan 952044357

16", 3/8 P, .058 G

$

$

Not available

1

Poulan 952044358

20", 3/8 P, .058 G

$

$

Not available

1

Poulan 952044359

24", 3/8 P, .058 G

$

$

Not available

2

Poulan 952051264

16"/60

$

$

Not available

2

Poulan 952051265

18"/66

$

$

Not available

2

Poulan 952051266

20"/70

$

$

Not available

2

Chain PAJ720

$

$

Not available

2

Poulan 952051284

24"/81

$

$

Not available

2

Poulan 952051286

27"/90

$

$

Not available

2

Chain P720/P730

$

$

Not available

2

Poulan 952051281

16"/60-P720

$

$

Not available

2

Poulan 952051327

18"/66-P720

$

$

Not available

2

Poulan 952051282

20"/70-P720

$

$

Not available

2

Poulan 952051279

21"/72-P720

$

$

Not available

2

Poulan 952051283

24"/81-P720

$

$

Not available

2

Poulan 952051285

28"/90-P720

$

$

Not available

2

Poulan 952051324

16"/60-P730

$

$

Not available

2

Poulan 952051325

20"/72-P730

$

$

Not available

2

Poulan 952051326

24"/84-P730

$

$

Not available

2

Poulan 952051326

13"/84-P730-Bow

$

$

Not available

3

Poulan 530025925

Guide Bar Plate Inner

$9.99

$

In Stock, Qty 7

0

4

Poulan 530055044

S-Clip

$

$

Not available

5

Poulan 530025924

Guide Bar Plate Outer

$

$

Not available

6

Poulan 530005293

R.H. Cutter

$

$

Not available

7

Poulan 530005294

L.H. Cutter

$

$

Not available

8

Poulan 530052047

Guard Drive Link

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 530005297

Drive Link

$

$

Not available

10

Poulan 530005295

Tie Strap

$

$

Not available

11

Poulan 530052014

Pre-Set Tie Strap

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 530052081

R.H. Cutter

$

$

Not available

13

Poulan 530052082

L.H. Cutter

$

$

Not available

14

Poulan 530052083

Guard Drive Link

$

$

Not available

15

Poulan 530005297

Drive Link

$

$

Not available

16

Poulan 530005295

Tie Strap

$

$

Not available

17

Poulan 530052014

Pre-Set Tie Strap

$2.49

$

Usually ships in 3-10 days

0

18

Poulan 530005299

Repair Kit (P72)

Note: Not Shown.

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 530052078

Repair Kit (P72S)

Note: Not Shown.

$

$

Not available

20

Poulan 530014205

Bar Clamp Ass'y.-Model 375

$

$

Not available

21

Poulan 530015445

Nut
(Superseded to 530015251)

$6.49

$

In Stock, only 1 left!

0

22

Poulan 530023064

Bar Adjusting Pin

$8.99

$

Usually ships in 3-10 days

0

23

Poulan 530015385

Screw

$6.49

$

In Stock, Qty 9

0

24

Poulan 530024419

E-Ring

$6.49

$

In Stock, Qty 9

0

25

Poulan 530025414

U-Clip

$

$

Not available

26

Poulan 530029756

Replacement Bar & Chain Decal (Not a serviceable part)

Note: Not Shown.

$

$

Not available

27

Poulan 952069264

Bow Guide Kit - Model 385

Note: Not Shown.

$

$

Not available
