PP 385 - Poulan Pro Chainsaw INTERNAL POWER UNIT Parts Diagram

Chainsaw

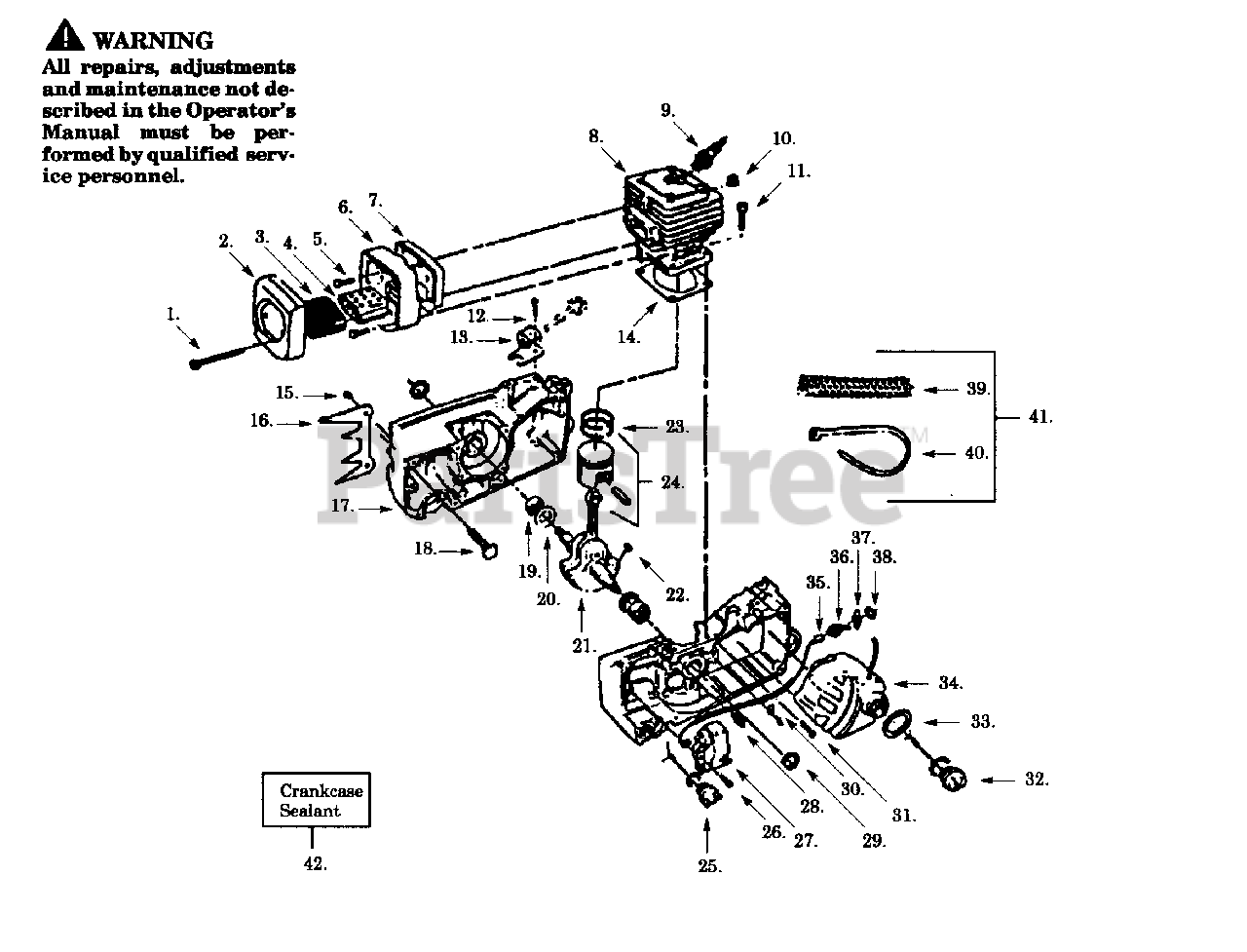

INTERNAL POWER UNIT Parts Diagram

  • Title

1

Poulan 530015375

Screw

$2.49

$

Usually ships in 3-10 days

0

2

Poulan 530026800

Muffler Cover

$

$

Not available

3

Poulan 530024385

Spark Arrestor

$

$

Not available

4

Poulan 530024384

Muffler Diffuser

$

$

Not available

5

Poulan 530015374

Screw

$

$

Not available

6

Poulan 530026059

Muffler Body

$

$

Not available

7

Poulan 530024388

Muffler Back Plate

$

$

Not available

8

Poulan 530012069

Model 375

$

$

Not available

8

Poulan 530012068

Model 385,395

$

$

Not available

9

Poulan 530030073

Spark Plug

$

$

Not available

10

Poulan 530015195

Clip-High Tension Lead

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 530001624

Screw

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 530015368

Screw

$

$

Not available

13

Poulan 530010347

Bracket & Bushing Ass'y.

$4.99

$

Usually ships in 3-10 days

0

14

Poulan 530019129

Cylinder Gasket

Note: Included in Carburetor Kwik Repair Kit. Included in Engine Gasket Kit. Indicates Engine Gasket Kat contents.

$

$

Not available

15

Poulan 530015434

Screw

$3.99

$

In Stock, only 1 left!

0

16

Poulan 530024476

Spur

$

$

Not available

17

Poulan 530010696

Crankcase Ass'y. (Inc.18,25,35, & Oil Cap Ass'y. from "External Power Unit.

Note: Also includes g 530-015406, & g 5,11 (1) f4 of Oil Pump Ass'y.

$191.99

$

Usually ships in 3-10 days

0

18

Poulan 530030039

Bar Stud Replacement Kit (5/16")

$

$

Not available

19

Poulan 530032051

Crankshaft Bearing

$

$

Not available

20

Poulan 530015354

Washer

$

$

Not available

21

Poulan 530024492

Crankshaft Ass'y.

Note: (Incl. Connecting Rod and Bearing)

$194.99

$

Usually ships in 3-10 days

0

22

Poulan 530002595

Flywheel Key

$5.99

$

In Stock, Qty 7

0

23

Poulan 530024756

Model 375

$

$

Not available

23

Poulan 530026003

Model 385,395

$

$

Not available

24

Poulan 530010355

Model 375

$78.99

$

Usually ships in 3-10 days

0

24

Poulan 530010643

Model 385,395

$

$

Not available

25

Poulan 530010444

Oil Cap Ass'y.

Note: (Incl. "O" Rings)

$

$

Not available

26

Poulan 530015425

Screw

$1.49

$

Usually ships in 3-10 days

0

27

Poulan 530039093

Ignition Module

Note: (Incl. High Tension Lead)

$

$

Not available

28

Poulan 530024334

Clamp

$2.49

$

Usually ships in 3-10 days

0

29

Poulan 530019097

Crankshaft Seal

Note: Included in Carburetor Kwik Repair Kit. Included in Engine Gasket Kit. Indicates Engine Gasket Kat contents.

$

$

Not available

30

Poulan 530023661

Module Lead Clamp

$2.49

$

Usually ships in 3-10 days

0

31

Poulan 530015238

Screw

$2.49

$

In Stock, only 1 left!

0

32

Poulan 530010331

Fuel Cap Ass'y.

Note: (Incl. "O" Rings)

$

$

Not available

33

Poulan 530019122

Fuel Tank Neck Seal

Note: Included in Carburetor Kwik Repair Kit. Included in Engine Gasket Kit. Indicates Engine Gasket Kat contents.

$4.99

$

In Stock, only 1 left!

0

34

Poulan 530010286

Fuel Tank Ass'y.

Note: (Incl. Fuel Cap Ass'y. & 35 & 36 from External Power Unit)

$

$

Not available

35

Poulan 530039099

3/16

$

$

Not available

35

Poulan 530039115

1/4

$

$

Not available

36

Poulan 530023732

Toggle Switch

$

$

Not available

37

Poulan 530024858

Ignition Switch Plate

$

$

Not available

38

Poulan 530023575

Nut
(Superseded to 530002582)

$

$

Not available

39

Poulan 530011746

Winter Screen

$

$

Not available

40

Poulan 530024675

Tie Strap

$2.49

$

Usually ships in 3-10 days

0

41

Poulan 530069079

Winter Kit (Inc. 39,40)

$46.99

$

Usually ships in 3-10 days

0

42

Poulan 530030054

Crankcase Sealant

$

$

Not available

43

Poulan 530067671

Model 375

$7.49

$

Usually ships in 3-10 days

0

43

Poulan 530067431

Model 385,395

$6.49

$

Usually ships in 3-10 days

0

44

Poulan 530066051

Bow Guide Manual

$

$

Not available

45

Poulan 530061247

Model 375 Carton (Not a serviceable part)

$

$

Not available

45

Poulan 530061158

Model 385,395 Carton (Not a serviceable part)

$

$

Not available
