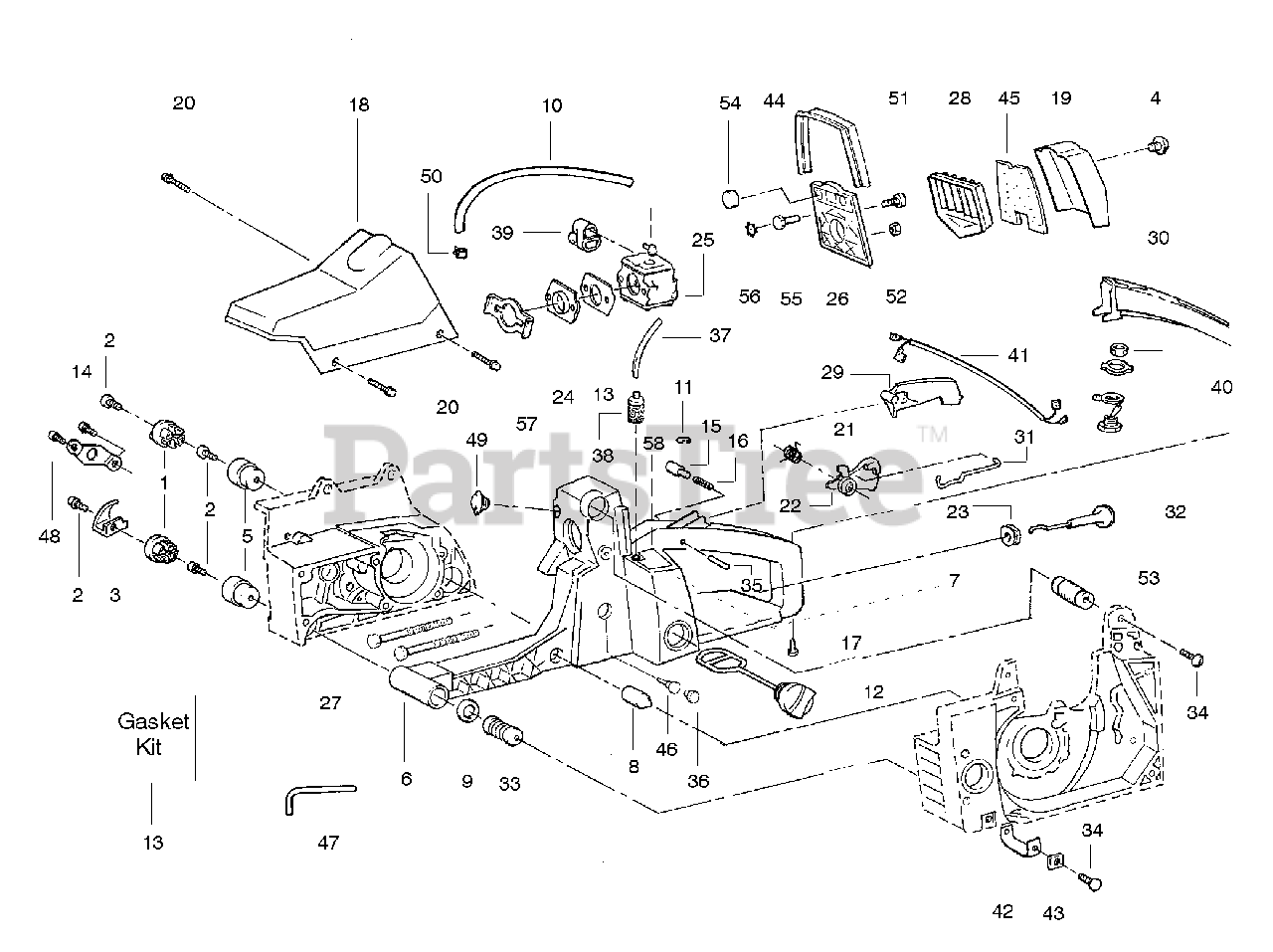

PP 380 - Poulan Pro Chainsaw Interior Assembly Parts Diagram

Chainsaw

Interior Assembly Parts Diagram

  • Title

1

Poulan 530027732

Retainer-Chain Catcher

$

$

Not available

2

Poulan 530016057

Screw

$4.99

$

In Stock, only 2 left!

0

3

Poulan 530027733

Chain Catcher

$

$

Not available

4

Poulan 530049248

Knob-Carb. Cover

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530042080

Lower Isolator

$

$

Not available

6

Poulan 530069894

Rear Handle & Fuel Tank

$

$

Not available

7

Poulan 530019192

Seal Carb. Cover-Left

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 530027187

Isolator Limiter

$3.99

$

In Stock, only 1 left!

0

9

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

10

Poulan 530069897

Impulse Line Kit
(Superseded to 530053752)

$

$

Not available

11

Poulan 530015702

"C" Clip

$

$

Not available

12

Poulan 530010845

Fuel Cap Ass'y (Incl. "O" Ring)

$

$

Not available

13

Poulan 530069891

Gasket Kit

$

$

Not available

14

Poulan 530015875

Screw

$4.99

$

In Stock, only 3 left!

0

15

Poulan 530029666

Throttle Lock

$

$

Not available

16

Poulan 530024772

Throttle Lock Spring

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 530015716

Screw

$

$

Not available

18

Poulan 530049271

Cylinder Shield

$

$

Not available

19

Poulan 530069896

Carb. Cover Ass'y.

$

$

Not available

20

Poulan 530015650

Screw

$

$

Not available

21

Poulan 530027134

Trigger Latch Spring

$2.49

$

Usually ships in 3-10 days

0

22

Poulan 530027133

Throttle Trigger

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530036053

Grommet

$2.49

$

Usually ships in 3-10 days

0

24

Poulan 530049465

Bracket-Intake

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 530069895

Carburetor Kit

$

$

Not available

26

Poulan 530049260

Air Filter Base

$

$

Not available

27

Poulan 530049562

Carb. Mounting Stud

$

$

Not available

28

Poulan 503553902

Air Filter Non-Woven

$

$

Not available

28

Poulan 503553901

Air Filter Nylon Mesh

$25.38

$

Usually ships in 3-10 days

0

29

Poulan 530027135

Throttle Lockout

$

$

Not available

30

Poulan 530049257

Rear Handle Cover

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 530027073

Throttle Wire

$6.99

$

In Stock, only 1 left!

0

32

Poulan 530027075

Choke Knob

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530069384

Isolator Kit

$

$

Not available

34

Poulan 530015871

Screw
(Superseded to 530015650)

$

$

Not available

35

Poulan 530015701

Dowel Pin

$2.23

$

In Stock, only 1 left!

0

36

Poulan 530038264

Plug-Bronze Vent

$

$

Not available

37

Poulan 530069910

Fuel Line Kit

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 530091878

Fuel Filter Ass'y.

$

$

Not available

39

Poulan 530049265

Carb. Grommet

$

$

Not available

40

Poulan 530069225

Switch Kit

$

$

Not available

41

Poulan 530027138

Lead Wire Ass'y.

$

$

Not available

42

Poulan 530037104

AV Strap

$

$

Not available

43

Poulan 530037012

Strap Retainer Plate

$4.99

$

In Stock, Qty 9

0

44

Poulan 530049739

Sound Strip

$

$

Not available

45

Poulan 530049684

Sound Foam

$

$

Not available

46

Poulan 530026119

Check Valve

$5.99

$

In Stock, only 4 left!

0

47

Poulan 530031159

Hex Wrench 5/32

$4.99

$

In Stock, only 1 left!

0

48

Poulan 530029347

Bracket

$

$

Not available

49

Poulan 530025922

Plug-Air Box

$3.99

$

Usually ships in 3-10 days

0

50

Poulan 530027341

Clamp

$4.99

$

Usually ships in 3-10 days

0

51

Poulan 530015598

Screw-Air Filter Base

$

$

Not available

52

Poulan 530049561

Nut-Air Filter

$3.99

$

In Stock, only 1 left!

0

53

Poulan 530047334

Cylinder Mount Ass'y.

$

$

Not available

54

Poulan 530027399

Bumper

$3.99

$

In Stock, only 1 left!

0

55

Poulan 530015839

Screw-Carb Knob

$

$

Not available

56

Poulan 530016199

Retaining Ring

$3.99

$

In Stock, only 1 left!

0

57

Poulan 530049273

Bracket-Carb Stud

$

$

Not available

58

Poulan 530019191

Seal Carb Cover-Right

$

$

Not available
