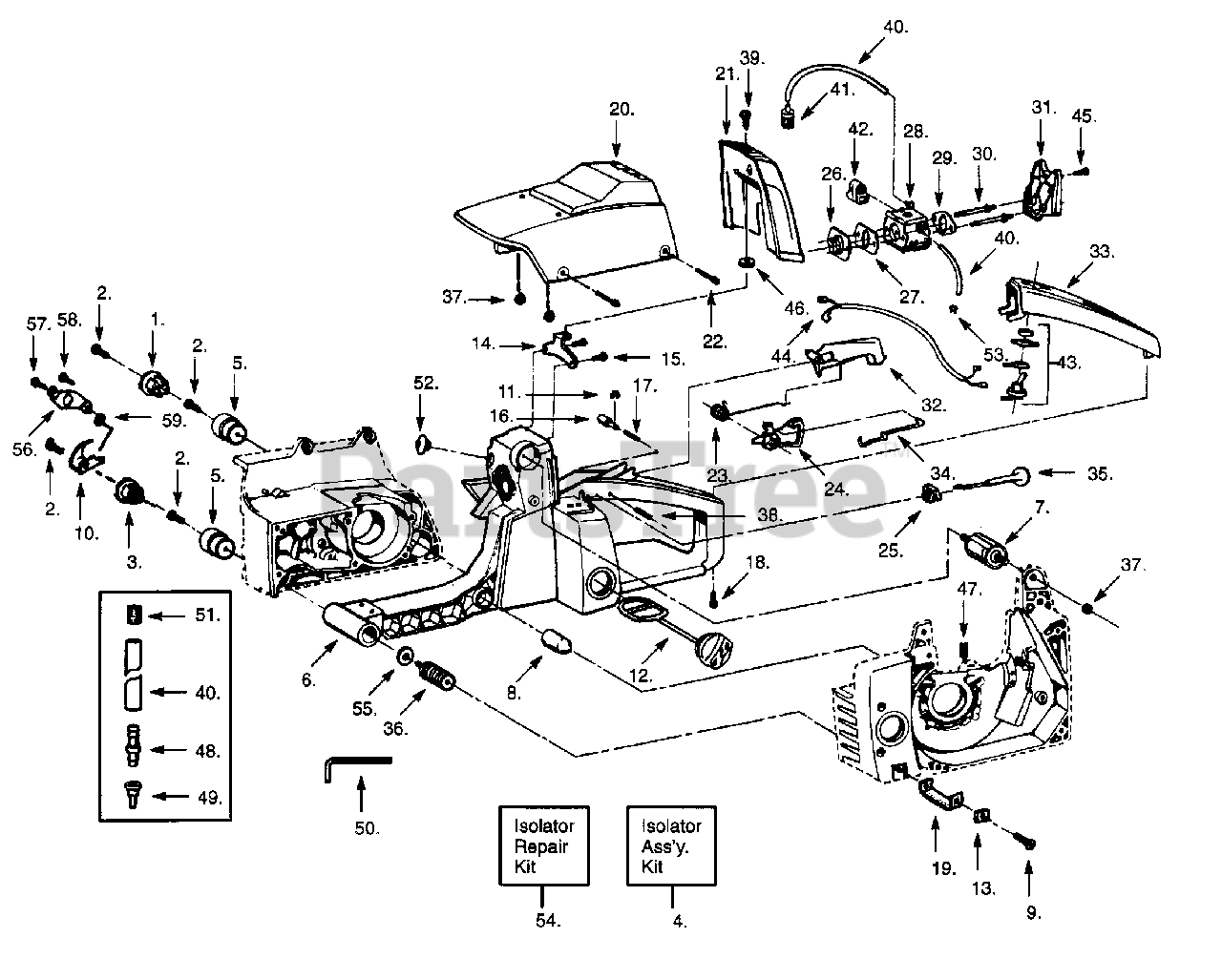

PP 365 C - Poulan Pro Chainsaw EXTERNAL POWER UNIT Parts Diagram

Chainsaw

EXTERNAL POWER UNIT Parts Diagram

  • Title
1

Poulan 530027732

Retainer Mount

$

$

Not available

$

$

Not available

3

Poulan 530027732

Chain Catcher Retainer

$

$

Not available

4

Poulan 530069384

Isolator Ass'y. Kit

$

$

Not available

5

Poulan 530027392

Lower Isolator

$

$

Not available

6

Poulan 530069391

Rear Handle & Fuel Tank

$

$

Not available

7

Poulan 530036056

Cylindrical Mount

$

$

Not available

8

Poulan 530027187

Isolator Limiter

$3.99

$

In Stock, only 1 left!

0

9

Poulan 530015871

Screw
(Superseded to 530015650)

$

$

Not available

10

Poulan 530027733

Chain Catcher

$

$

Not available

11

Poulan 530015702

"C" Clip

$

$

Not available

12

Poulan 530010845

Fuel Cap Ass'y.

$

$

Not available

13

Poulan 530037012

Strap Retainer Plate

$4.99

$

In Stock, Qty 9

0

14

$3.99

$

Usually ships in 3-10 days

0

15

$

$

Not available

16

Poulan 530029666

Throttle Lock

$

$

Not available

17

Poulan 530024772

Throttle Lock Spring

$4.99

$

Usually ships in 3-10 days

0

18

$

$

Not available

19

Poulan 530037104

AV Strap

$

$

Not available

20

Poulan 530069392

Cylinder Shield Kit

$

$

Not available

21

Poulan 530036038

Carb. Cover

$

$

Not available

22

Poulan 530015871

Screw
(Superseded to 530015650)

$

$

Not available

23

Poulan 530027134

Trigger Latch Spring

$2.49

$

Usually ships in 3-10 days

0

24

Poulan 530027133

Throttle Trigger

$3.99

$

Usually ships in 3-10 days

0

25

$2.49

$

Usually ships in 3-10 days

0

26

$

$

Not available

27

Poulan 530069263

Model 336C

$

$

Not available

27

Poulan 530069382

Model 365C

$

$

Not available

28

Poulan 530035201

Carburetor (HDA-49)

$

$

Not available

29

Poulan 530023664

Air Filter Plate

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530015735

Carb. Mounting Stud

$

$

Not available

31

Poulan 530010892

Air Filter Ass'y.

$

$

Not available

32

Poulan 530027135

Throttle Lockout

$

$

Not available

33

Poulan 530027207

Rear Handle Cover

$

$

Not available

34

Poulan 530027073

Throttle Wire

$6.99

$

In Stock, only 1 left!

0

35

Poulan 530027075

Choke Knob

$3.99

$

Usually ships in 3-10 days

0

36

Poulan 530036962

Spring Ass'y.

$

$

Not available

$

$

Not available

38

Poulan 530015701

Dowel Pin

$2.23

$

In Stock, only 1 left!

0

39

$

$

Not available

40

Poulan 530069216

Line Kit (Bulk 530-008133)

$11.99

$

In Stock, Qty 20+

0

41

Poulan 530091878

Fuel Filter Ass'y.

$

$

Not available

42

$

$

Not available

43

Poulan 530069225

Switch Kit

$

$

Not available

44

Poulan 530027138

Lead Wire Ass'y.

$

$

Not available

45

Poulan 530015802

Screw
(Superseded to 530015598)

$

$

Not available

46

Poulan 530027202

Screw Retainer

$2.49

$

Usually ships in 3-10 days

0

47

Poulan 530025539

Impulse Fitting

$

$

Not available

48

Poulan 530024475

Vent Fitting

$6.49

$

In Stock, Qty 20+

0

49

Poulan 530026119

Check Valve

$5.99

$

In Stock, Qty 8

0

50

Poulan 530031111

Hex Key
(Superseded to 530031159)

$4.99

$

In Stock, only 1 left!

0

51

Poulan 530027339

Vent Plug

$

$

Not available

52

Poulan 530025922

Air Box Plug

$3.99

$

Usually ships in 3-10 days

0

53

$4.99

$

Usually ships in 3-10 days

0

54

Poulan 530069297

Isolator Repair Kit

$

$

Not available

55

$4.99

$

In Stock, only 4 left!

0

56

Poulan 530029347

Bracket Retainer

$

$

Not available

57

$

$

Not available

58

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

59

$2.49

$

In Stock, only 1 left!

0

59

Poulan 507434058

Starting Inst. Decal

$

$

Not available
