PP 365 C - Poulan Pro Chainsaw CARBURETOR HDA-#49 Parts Diagram

Chainsaw

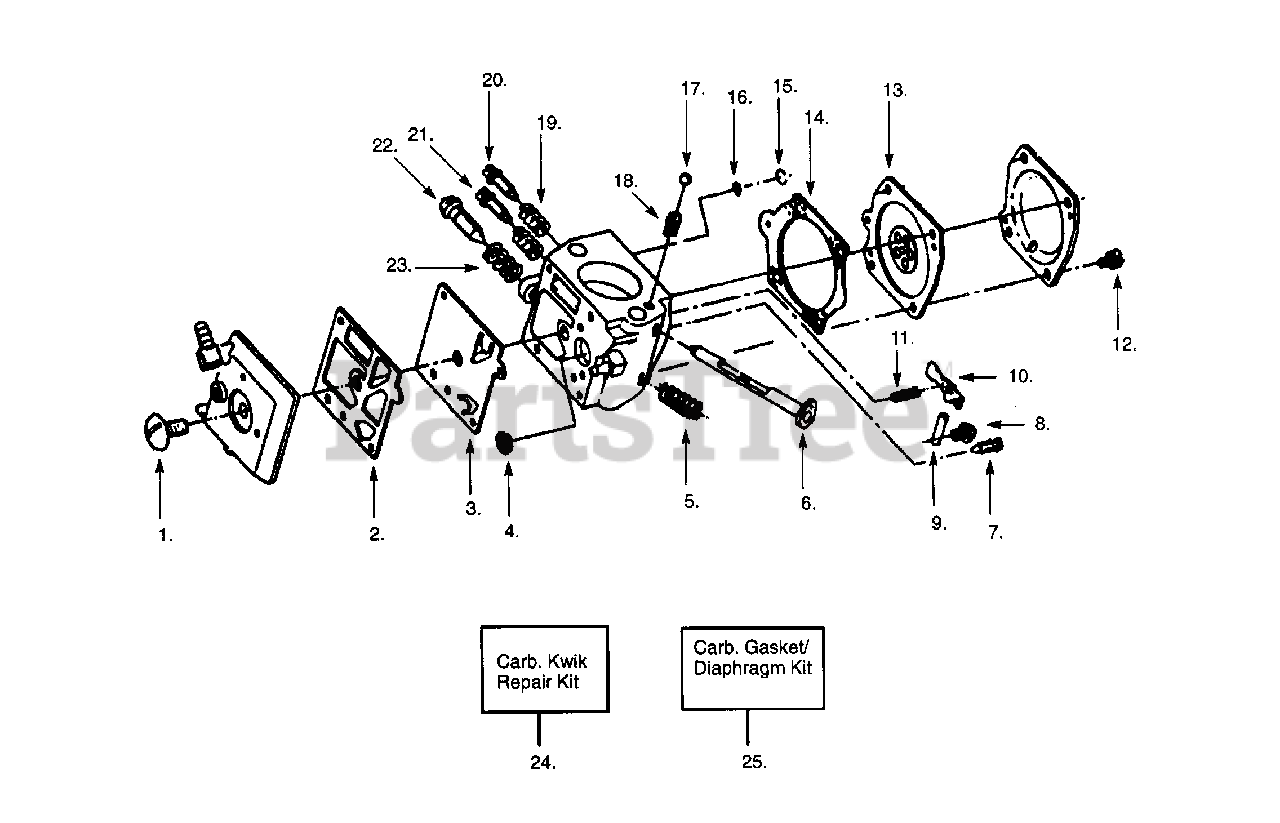

CARBURETOR HDA-#49 Parts Diagram

  • Title

1

Poulan 530035237

Screw

$1.99

$

Usually ships in 3-10 days

0

2

Poulan 530035227

Fuel Pump Gasket

Note: Included in Gasket/Diaphragm Kit.

$

$

Not available

3

Poulan 530035229

Fuel Pump Diaphragm

Note: Included in Gasket/Diaphragm Kit.

$12.99

$

Usually ships in 3-10 days

0

4

Poulan 530035249

Inlet Screen
(Superseded to 501666101)

$14.99

$

In Stock, Qty 5

0

5

Poulan 530035244

Throttle Spring

$2.49

$

Usually ships in 3-10 days

0

6

Poulan 530035216

Choke Shaft & Lever Ass'y.

$

$

Not available

7

Poulan 530035223

Inlet Needle Valve
(Superseded to 503563401)

$17.99

$

In Stock, Qty 10

0

8

Poulan 530035236

Screw

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 530035250

Pin
(Superseded to 505520125)

$7.99

$

In Stock, only 3 left!

0

10

Poulan 530035252

Metering Lever

$

$

Not available

11

Poulan 530035241

Spring

$

$

Not available

12

Poulan 530035239

Screw

$

$

Not available

13

Poulan 530035230

Metering Diaphragm

Note: Included in Gasket/Diaphragm Kit.

$9.99

$

In Stock, only 1 left!

0

14

Poulan 530035228

Metering Diaphragm Gasket

Note: Included in Gasket/Diaphragm Kit.

$

$

Not available

15

Poulan 530035204

Retaining Ring

$

$

Not available

16

Poulan 530035248

Check Valve Screen

$

$

Not available

17

Poulan 530035226

Ball

$

$

Not available

18

Poulan 530035240

Spring
(Superseded to 501468401)

$7.99

$

In Stock, only 1 left!

0

19

Poulan 530035243

Needle Adjusting Spring

$

$

Not available

20

Poulan 530035245

High Speed Needle

$

$

Not available

21

Poulan 530035246

Idle Needle

$

$

Not available

22

Poulan 530035238

Idle Adjust Screw

$

$

Not available

23

Poulan 530035242

Idle Adjust Spring

$

$

Not available

24

Poulan 530035209

Kwik Repair Kit (Inc. 2,3,4,7,8,9,10,11, 13,14,15,16,26,27)

$

$

Not available

25

Poulan 530035213

Carb. Gasket Kit
(Superseded to 530069844)

$20.99

$

In Stock, only 3 left!

0

26

Poulan 530035224

Welch Plug

$

$

Not available

27

Poulan 530035225

Plug Cup

$3.99

$

Usually ships in 3-10 days

0
