PP 3516 AVX - Poulan Pro Chainsaw (2012-06) ENGINE Parts Diagram

Chainsaw

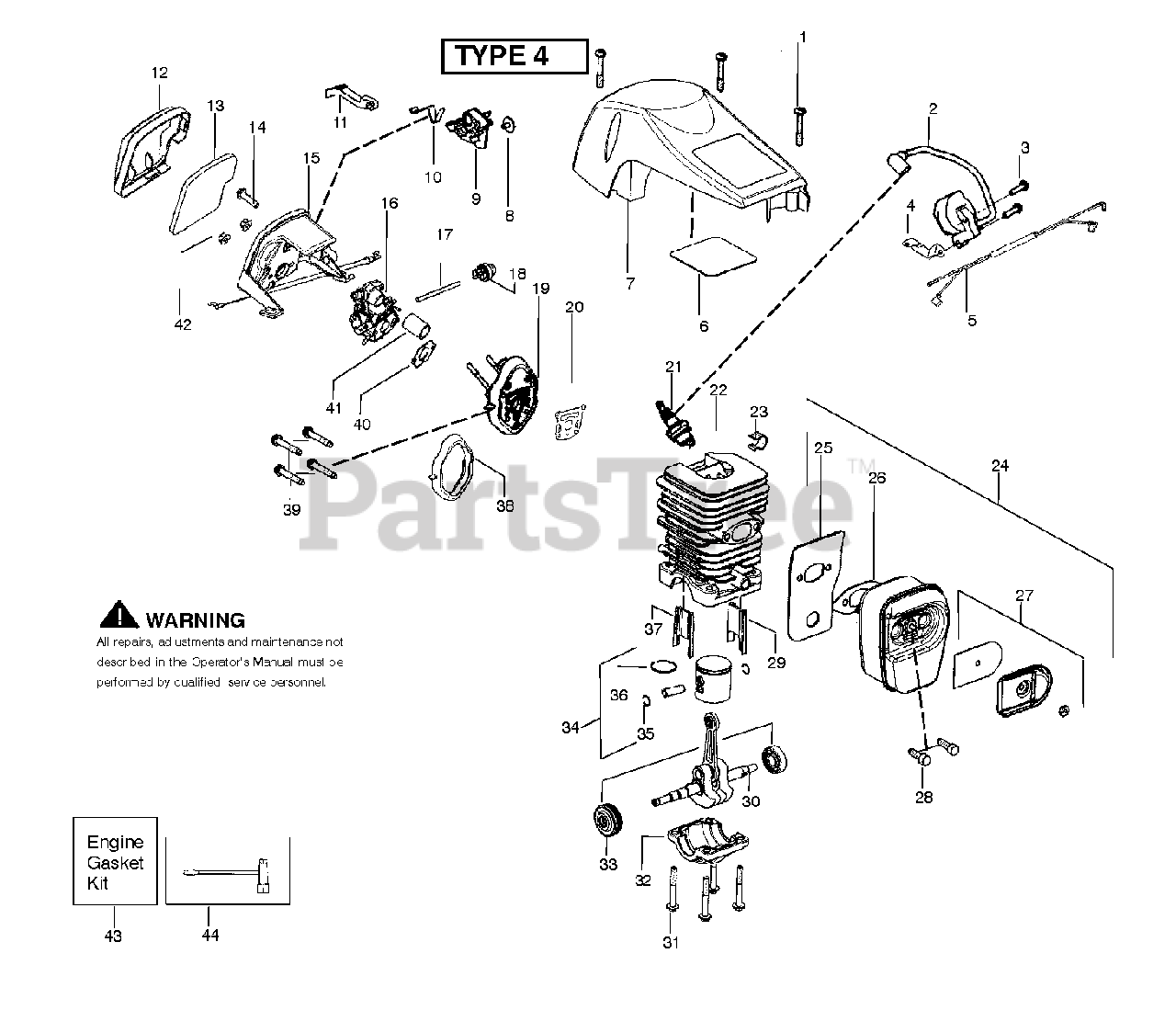

ENGINE Parts Diagram

  • Title

1

Poulan 530016153

SCREW

$6.49

$

In Stock, only 2 left!

0

2

Poulan 545115801

MODULE IGNITION WALBRO
(Superseded to 585838302)

$

$

Not available

3

Poulan 530016432

SCREW M5.38-14X22.225MM

$6.49

$

In Stock, Qty 7

0

4

Poulan 530058661

STRAP GROUND

$3.99

$

In Stock, only 2 left!

0

5

Poulan 530057943

ASSY WIRE HARNESS

$7.99

$

In Stock, Qty 12

0

6

Poulan 530055698

REFLECTOR-HEAT

$3.99

$

In Stock, only 1 left!

0

7

Poulan 530057872

HOUSING CYLINDER SHIELD

Note: INCL 1 6

$22.99

$

Usually ships in 3-10 days

0

8

Poulan 530016080

SCREW

$6.49

$

In Stock, only 1 left!

0

9

Poulan 530057891

LEVER IGNITION SWITCH

$

$

Not available

10

Poulan 530057908

SPRING IGNITION SWITCH

$6.49

$

In Stock, only 1 left!

0

11

Poulan 530059399

LEVER CHOKE

$

$

Not available

12

Poulan 530059001

COVER AIR FILTER

$6.99

$

In Stock, only 3 left!

0

13

Poulan 530057869

FILTER AIR

$6.99

$

In Stock, only 4 left!

0

14

Poulan 530016425

SCREW M5-0.8X16

$6.49

$

In Stock, only 1 left!

0

15

Poulan 545046901

FILTER HSG & CABLE

$

$

Not available

16

Poulan 545070601

CARB ZAMA W26B W/PURGE

$56.99

$

In Stock, Qty 6

0

17

Poulan 580727101

KIT FUEL LINE

$17.99

$

Usually ships in 3-10 days

0

18

Poulan 530047721

AIR PURGE

$9.49

$

Usually ships in 3-10 days

0

19

Poulan 530071889

KIT CARB ADAPTOR

Note: INCL 20 38 41

$26.99

$

In Stock, only 1 left!

0

20

Poulan 530071894

KIT GASKET SAS

$11.99

$

Usually ships in 3-10 days

0

21

Poulan 952030150

SPARK PLUG (RCJ-7Y)

$3.49

$

In Stock, Qty 20+

0

22

Poulan 530071884

KIT CYLINDER

Note: INCL 29 37

$56.99

$

In Stock, only 1 left!

0

23

Poulan 530058660

HIGH TENSION LEAD CLIP

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 545006007

KIT MUFFLER SAS NON CAT

Note: INCL 25 26 27 28

$26.99

$

Usually ships in 3-10 days

0

25

Poulan 530057942

PLATE BACK MUFFLER

$

$

Not available

26

Poulan 530071894

KIT GASKET SAS

$11.99

$

Usually ships in 3-10 days

0

27

Poulan 545006056

KIT SPARK ARRESTOR SAS NCAT

$10.99

$

Usually ships in 3-10 days

0

28

Poulan 530016338

SCREW MUFFLER

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 545015301

INSERT TRANSFER LEFT

$4.99

$

In Stock, only 4 left!

0

30

Poulan 545112901

CRANKSHAFT & ROD ASSY

$66.99

$

Usually ships in 3-10 days

0

31

Poulan 530016417

BOLT M6-1.0 X 25MM

$6.49

$

In Stock, Qty 5

0

32

Poulan 530057941

CRANKCASE CASTING

$8.99

$

In Stock, only 1 left!

0

33

Poulan 530056363

BEARING & SEAL ASSEMBLY

$18.99

$

In Stock, only 2 left!

0

34

Poulan 530071883

KIT PISTON

Note: INCL 35 36

$34.99

$

In Stock, only 4 left!

0

35

Poulan 530015697

C-CLIP,PSTN PIN 36/41

$6.49

$

In Stock, Qty 6

0

36

Poulan 530038729

RING-PISTON
(Superseded to 545160401)

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 545015401

INSERT TRANSFER RIGHT

$6.49

$

In Stock, only 3 left!

0

38

Poulan 530071894

KIT GASKET SAS

$11.99

$

Usually ships in 3-10 days

0

39

Poulan 530016426

SCREW M5-0.8X30MM

$6.49

$

In Stock, only 2 left!

0

40

Poulan 530071894

KIT GASKET SAS

$11.99

$

Usually ships in 3-10 days

0

41

Poulan 530057926

TUBE INTAKE

$5.99

$

In Stock, Qty 6

0

42

Poulan 530016101

NUT

$6.49

$

In Stock, only 2 left!

0

43

Poulan 530071894

KIT GASKET SAS

Note: INCL 20 26 38 40

$11.99

$

Usually ships in 3-10 days

0

44

Poulan 530031135

SCRENCH
(Superseded to 530031163)

$9.99

$

In Stock, Qty 12

0
