PP 3516 AVX - Poulan Pro Chainsaw (2012-06) CHASSIS LOWER Parts Diagram

Chainsaw

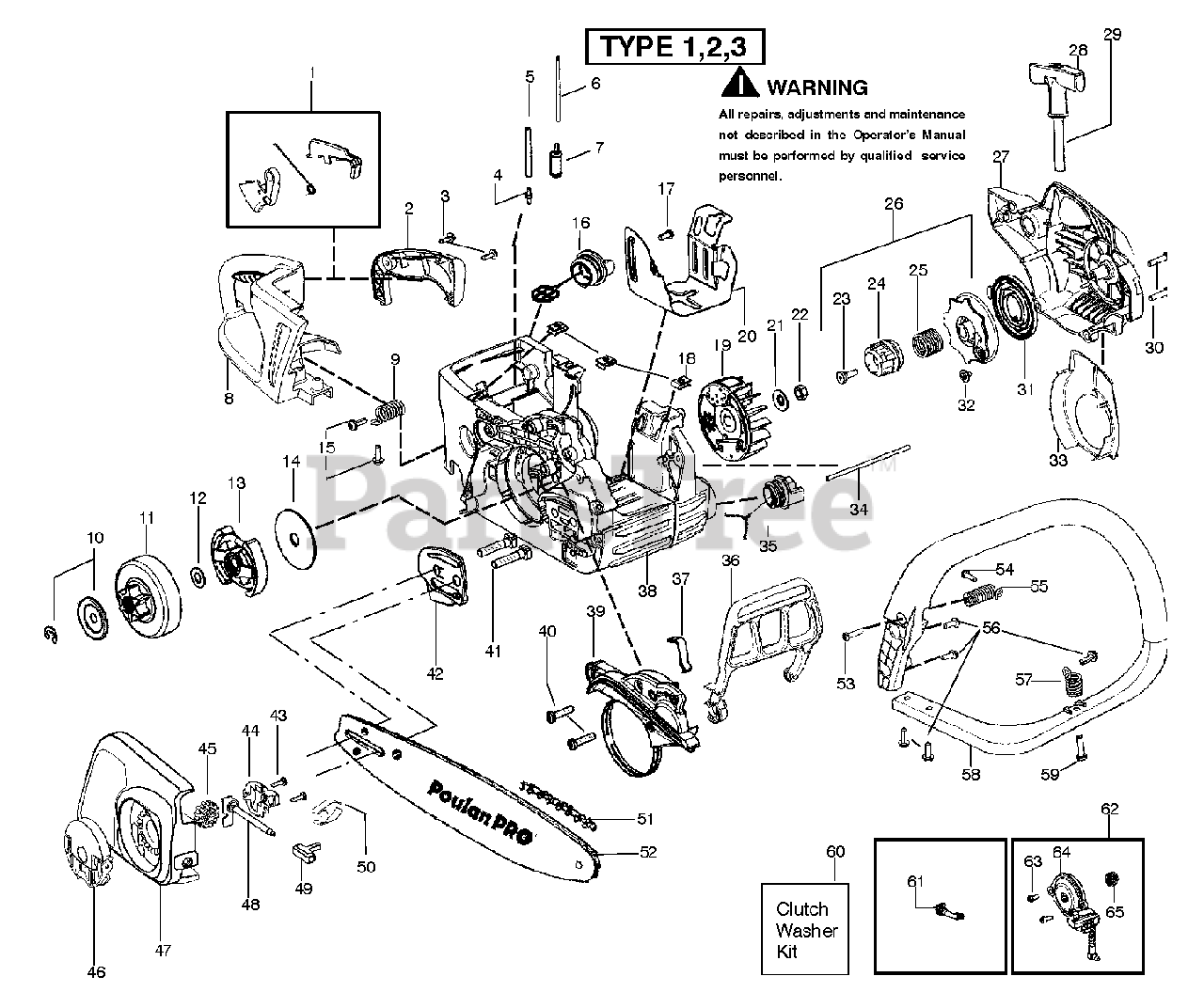

CHASSIS LOWER Parts Diagram

  • Title

1

Poulan 530071927

KIT SAV TRIGGER & LOCKOUT

$7.99

$

In Stock, only 2 left!

0

2

Poulan 545011903

COVER HANDLE PPR GOLD OVERMOLD

$6.99

$

In Stock, only 1 left!

0

3

Poulan 530016433

SCREW

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 530023877

FUEL LINE FITTING

$5.99

$

In Stock, Qty 17

0

5

Poulan 530069216

LINE KIT

$11.99

$

In Stock, Qty 20+

0

6

Poulan 530069247

KIT-LINE

$7.99

$

In Stock, Qty 20+

0

7

Poulan 530095649

ASSY FUEL PICK UP W/LINE
(Superseded to 530095646)

$6.99

$

In Stock, Qty 19

0

8

Poulan 545012103

HANDLE REAR PPGOLD OVERMOLD
(Superseded to 586016902)

$

$

Not available

9

Poulan 530059475

SPRING ISOLATOR

$6.99

$

Usually ships in 3-10 days

0

10

Poulan 530071945

KIT SAS CLUTCH WASHER

$6.49

$

In Stock, only 3 left!

0

11

Poulan 530057905

ASSY CLUTCH DRUM 3/8
(Superseded to 501628301)

$17.99

$

In Stock, Qty 14

0

12

Poulan 530071945

KIT SAS CLUTCH WASHER

$6.49

$

In Stock, only 3 left!

0

13

Poulan 530057907

ASSY CLUTCH

$13.99

$

Usually ships in 3-10 days

0

14

Poulan 530016419

WASHER CLUTCH LARGE

$6.49

$

In Stock, only 1 left!

0

15

Poulan 530015906

SCREW,FRONT HBAR 36/41

$6.49

$

In Stock, only 2 left!

0

16

Poulan 530047192

TANK CAP
(Superseded to 580940901)

$7.99

$

In Stock, Qty 7

0

17

Poulan 530016064

SCREW

$4.99

$

In Stock, only 2 left!

0

18

Poulan 530015922

CLIP

$6.49

$

In Stock, Qty 5

0

19

Poulan 545016308

ASSY FLYWHEEL
(Superseded to 578193802)

$17.99

$

Usually ships in 3-10 days

0

20

Poulan 530057911

SHIELD HEAT

$4.99

$

Usually ships in 3-10 days

0

21

Poulan 530015127

WASHER-FLYWHEEL

$6.49

$

In Stock, only 1 left!

0

22

Poulan 530016134

NUT-FLYWHEEL

$6.49

$

In Stock, only 1 left!

0

23

Poulan 530021179

SCREW SHOULDER

$2.49

$

In Stock, only 1 left!

0

24

Poulan 530059677

HUB STARTER EPS

$9.99

$

In Stock, Qty 6

0

25

Poulan 530021180

SPRING EPS

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 530071966

KIT EPS STARTER

Note: INCL 23 24 25 32

$26.99

$

In Stock, only 1 left!

0

27

Poulan 545011703

Fan Housing

$26.99

$

In Stock, Qty 5

0

28

Poulan 530056402

HANDLE STARTER

$6.49

$

In Stock, only 1 left!

0

29

Poulan 530069232

KIT-ROPE

$7.49

$

In Stock, Qty 18

0

30

Poulan 530016432

SCREW M5.38-14X22.225MM

$6.49

$

In Stock, Qty 7

0

31

Poulan 576657801

SPRING

$6.49

$

Usually ships in 3-10 days

0

32

Poulan 530016080

SCREW

$6.49

$

Usually ships in 3-10 days

0

33

Poulan 530057868

BAFFLE FLYWHEEL

$6.70

$

Usually ships in 3-10 days

0

34

Poulan 530058786

ASSEMBLY-OIL-VENT

$4.99

$

In Stock, only 1 left!

0

35

Poulan 530057236

OIL TANK CAP

$

$

Not available

36

Poulan 530057880

HANDGUARD CHAIN BRAKE
(Superseded to 585600601)

$

$

Not available

37

Poulan 530016416

SPRING HANDGUARD

$6.49

$

In Stock, only 3 left!

0

38

Poulan 545011803

Chassis Assembly, Black with Retainer
(Superseded to 545011813)

Note: INCL 4 5 6 7 9 15 16 17 18 20 34 35 37 41 57

$79.99

$

Usually ships in 3-10 days

0

39

Poulan 530071893

KIT CHAIN BRAKE

$26.99

$

In Stock, only 1 left!

0

40

Poulan 530016432

SCREW M5.38-14X22.225MM

$6.49

$

In Stock, Qty 7

0

41

Poulan 530016133

BOLT

$6.49

$

In Stock, only 2 left!

0

42

Poulan 530057910

PLATE BAR MOUNTING

$5.99

$

In Stock, only 4 left!

0

43

Poulan 530016064

SCREW

$4.99

$

In Stock, only 2 left!

0

44

Poulan 530059999

COVER

$

$

Not available

45

Poulan 525884203

Thumb Wheel Assembly, SRS Red
(Superseded to 525884202)

$

$

Not available

46

Poulan 545040603

ASSY EZT KNOB PRO GOLD

$18.99

$

Usually ships in 3-10 days

0

47

Poulan 545027703

HSG CLUTCH CVR EZT AV PRO GOLD

$

$

Not available

48

Poulan 530150000

ADJUSTING SCREW

$

$

Not available

49

Poulan 545157401

CHAIN TENSIONER PIN

$6.99

$

In Stock, only 1 left!

0

50

Poulan 545147001

CLIP

$3.49

$

In Stock, only 1 left!

0

51

Poulan 952051211

ACCY-PLN CHN 16" 91VJ 56DL 3/8
(Superseded to 581562201)

$22.99

$

In Stock, only 2 left!

0

52

Poulan 530044692

BAR 16" SN 91 3/8 56DL
(Superseded to 952044370)

$

$

Not available

53

Poulan 530016432

SCREW M5.38-14X22.225MM

$6.49

$

In Stock, Qty 7

0

54

Poulan 530016443

M5.0X0.8X16 TT TRX SEMS

$4.99

$

In Stock, only 1 left!

0

55

Poulan 530059480

SPRING ISOLATOR ASSEMBLY

$7.49

$

In Stock, only 3 left!

0

56

Poulan 530015906

SCREW,FRONT HBAR 36/41

$6.49

$

In Stock, only 2 left!

0

57

530059479ng

$

$

Not available

58

Poulan 530057878

HANDLE FRONT

$

$

Not available

59

Poulan 530016432

SCREW M5.38-14X22.225MM

$6.49

$

In Stock, Qty 7

0

60

Poulan 530071945

KIT SAS CLUTCH WASHER

Note: INCL 10 12

$6.49

$

In Stock, only 3 left!

0

61

Poulan 530057924

ASSY PICK UP OIL TANK

$6.49

$

In Stock, Qty 9

0

62

Poulan 530071891

KIT OIL PUMP

Note: INCL 63 64 65

$27.99

$

In Stock, only 1 left!

0

63

Poulan 530016064

SCREW

$4.99

$

In Stock, only 2 left!

0

64

Poulan 530057931

ASSY OIL PUMP
(Superseded to 581071401)

$20.99

$

In Stock, only 1 left!

0

65

Poulan 530037820

WORM GEAR

$6.49

$

In Stock, only 2 left!

0
