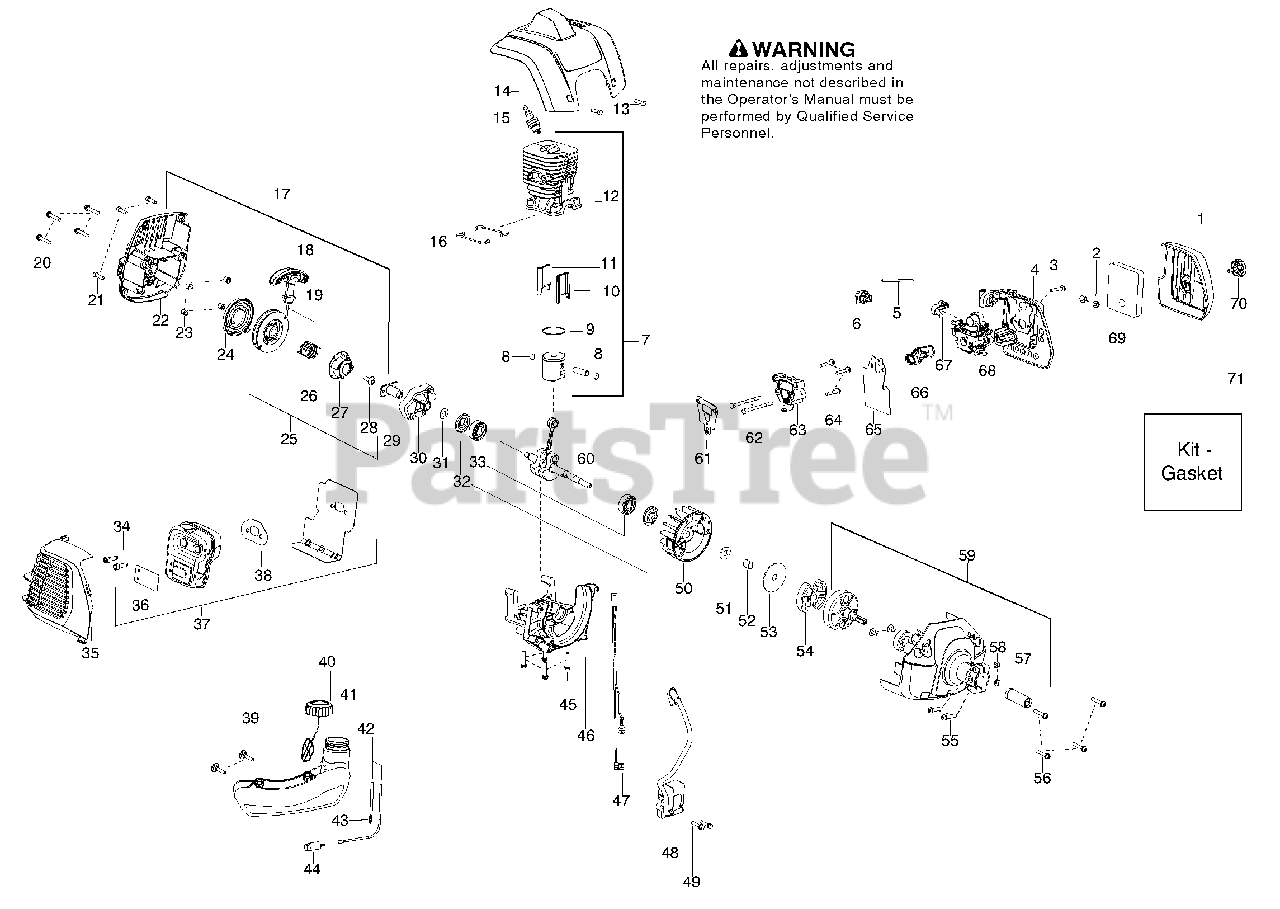

PP 338 PT - Poulan Pro String Trimmer Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Poulan 545177001

Cover-Airbox

$

$

Not available

2

Poulan 530016101

Nut-Carb. Screw

$6.49

$

In Stock, only 2 left!

0

3

Poulan 530016301

Screw 8-32

$6.49

$

In Stock, only 4 left!

0

4

Poulan 545176901

Base-Airbox

$

$

Not available

5

Fuel line-Purge bulb(ref. 42)

$

$

Not available

6

Poulan 530047721

Purge Bulb

$9.49

$

Usually ships in 3-10 days

0

7

Poulan 545008046

Kit-Piston/Cyl.

Note: (Incl. 8,9,10,11,12)

$

$

Not available

8

Poulan 545194801

Retainer-Piston pin

$3.99

$

In Stock, only 1 left!

0

9

Poulan 545194601

Ring-Piston

$6.49

$

In Stock, only 2 left!

0

10

Poulan 545194901

Insert-Front Transfer Port

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 545195001

Insert-Rear Transfer Port

$

$

Not available

12

Poulan 545181801

Cylinder-Machined

$

$

Not available

13

Poulan 530016449

Screw M4 x1.75 x 16mm

$6.49

$

In Stock, only 2 left!

0

14

Poulan 545156401

Cover-Top

$6.91

$

Usually ships in 3-10 days

0

15

Poulan 952030249

Spark Plug (RCJ- 6Y)

$4.99

$

In Stock, Qty 20+

0

16

Poulan 545008044

Seal-Cylinder(Kit)

$10.99

$

In Stock, only 1 left!

0

17

Poulan 545190701

Assy-Shroud Rear

Note: (Incl. 18,19,22,23,24,25)

$

$

Not available

18

Poulan 545208401

Handle-Starter

$7.99

$

Usually ships in 3-10 days

0

19

Poulan 545029901

Kit-Rope

$14.99

$

In Stock, only 2 left!

0

20

Poulan 530015897

Screw M4 x .8 x 25mm

$6.49

$

In Stock, Qty 19

0

21

Poulan 530016449

Screw M4 x 1.75 x 16mm

$6.49

$

In Stock, only 2 left!

0

22

Poulan 545190601

Housing-Starter w/eyelet

$20.99

$

Usually ships in 3-10 days

0

23

Poulan 545185301

Spacer

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 545008013

Kit-Starter Spring

$6.99

$

In Stock, only 3 left!

0

25

Poulan 545008049

Kit-Pulley

Note: (Incl 26,27,28)

$31.99

$

Usually ships in 3-10 days

0

26

Poulan 545188301

Spring-Starter Hub

$6.49

$

In Stock, only 1 left!

0

27

Poulan 545188001

Hub-Starter

$6.49

$

Usually ships in 3-10 days

0

28

Poulan 545112801

Screw M6

$4.99

$

In Stock, only 3 left!

0

29

Poulan 545188201

Coupling-Starter

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 545188701

Assy-Starter Cup

$7.49

$

In Stock, only 3 left!

0

31

Poulan 530015828

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 545008044

Seal-Crankshaft (kit)

$10.99

$

In Stock, only 1 left!

0

33

Poulan 545013401

Bearing-Crankshaft

$10.99

$

Usually ships in 3-10 days

0

34

Poulan 530058982

Bolt-Muffler

$4.99

$

In Stock, Qty 7

0

35

Poulan 545156301

Guard-Muffler

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 545008070

Kit-Spark Arrestor
(Superseded to 545224001)

$4.99

$

In Stock, only 1 left!

0

37

Poulan 545180701

Assy-Muffler

Note: (Incl. 34,36,38)

$18.99

$

In Stock, only 1 left!

0

38

Poulan 545008044

Gasket-Muffler (kit)

$10.99

$

In Stock, only 1 left!

0

39

Poulan 530016445

Screw-Tank Retainer

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 545215901

Assy-Fuel Cap w/ret.
(Superseded to 578931605)

$9.49

$

Usually ships in 3-10 days

0

41

Poulan 545182101

Assy-Tank
(Superseded to 578942701)

Note: (Incl. 40,42,43,44)

$

$

Not available

42

Poulan 530069599

Kit-Fuel line

$7.49

$

In Stock, Qty 5

0

43

Poulan 530023877

Fitting-Fuel Line

$5.99

$

In Stock, Qty 18

0

44

Poulan 530095646

Assy-Fuel Pickup

$6.99

$

In Stock, Qty 20+

0

45

Poulan 530015897

Screw-m5x25mm

$6.49

$

In Stock, Qty 19

0

46

Poulan 545181901

Crankcase

$21.99

$

Usually ships in 3-10 days

0

47

Poulan 545191601

Assy-Leadwire

$4.99

$

Usually ships in 3-10 days

0

48

Poulan 545189701

Module-Ignition

$37.99

$

In Stock, only 1 left!

0

49

Poulan 530016357

Screw 8-32

$6.49

$

In Stock, only 4 left!

0

50

Poulan 545120401

Assy-Flywheel

$14.99

$

Usually ships in 3-10 days

0

51

Poulan 530016463

Washer

$6.99

$

In Stock, only 3 left!

0

52

Poulan 530057852

Spacer-Flywheel

$10.99

$

In Stock, only 2 left!

0

53

Poulan 530094189

Washer-Clutch

$6.99

$

In Stock, only 1 left!

0

54

Poulan 545008038

Kit-Clutch Assy.
(Superseded to 530055122)

$20.99

$

In Stock, Qty 5

0

55

Poulan 530015774

Screw 10-24 x 1"

$6.49

$

In Stock, only 1 left!

0

56

Poulan 530015897

Screw M5 x 25mm

$6.49

$

In Stock, Qty 19

0

57

Poulan 545186401

Guide-Clutch Drum

$

$

Not available

58

Poulan 530015768

Locknut 10-24

$6.49

$

In Stock, only 2 left!

0

59

Poulan 545190801

Assy-Fan Hsg

Note: (Incl.55,57,58)

$42.99

$

Usually ships in 3-10 days

0

60

Poulan 545008047

Kit-Crankshaft
(Superseded to 545194001)

$39.22

$

Usually ships in 3-10 days

0

61

Poulan 545008044

Gasket - Adapter / Cyl.(kit)

$10.99

$

In Stock, only 1 left!

0

62

Poulan 530016418

Bolt M5 x .80

$4.99

$

Usually ships in 3-10 days

0

63

Poulan 575391501

Adaptor-Carburetor

$10.99

$

In Stock, only 1 left!

0

64

Poulan 530016441

Screw .20 x 32

$6.49

$

Usually ships in 3-10 days

0

65

Poulan 545008044

Gasket-Carb./Adapter(kit)

$10.99

$

In Stock, only 1 left!

0

66

Poulan 545190501

Boot-Carb.

$4.99

$

In Stock, only 1 left!

0

67

Poulan 574719701

Lever - Choke

$11.99

$

In Stock, only 2 left!

0

68

Poulan 545008042

Kit-Carburetor
(Superseded to 545189502)

$74.99

$

Usually ships in 3-10 days

0

69

Poulan 545195901

Filter-Air

$4.99

$

In Stock, only 1 left!

0

70

Poulan 545188801

Assy-Airbox Knob

$3.99

$

In Stock, only 1 left!

0

71

Poulan 545008044

Kit - Gasket

Note: (Incl. 16,32,38,61,65)

$10.99

$

In Stock, only 1 left!

0
