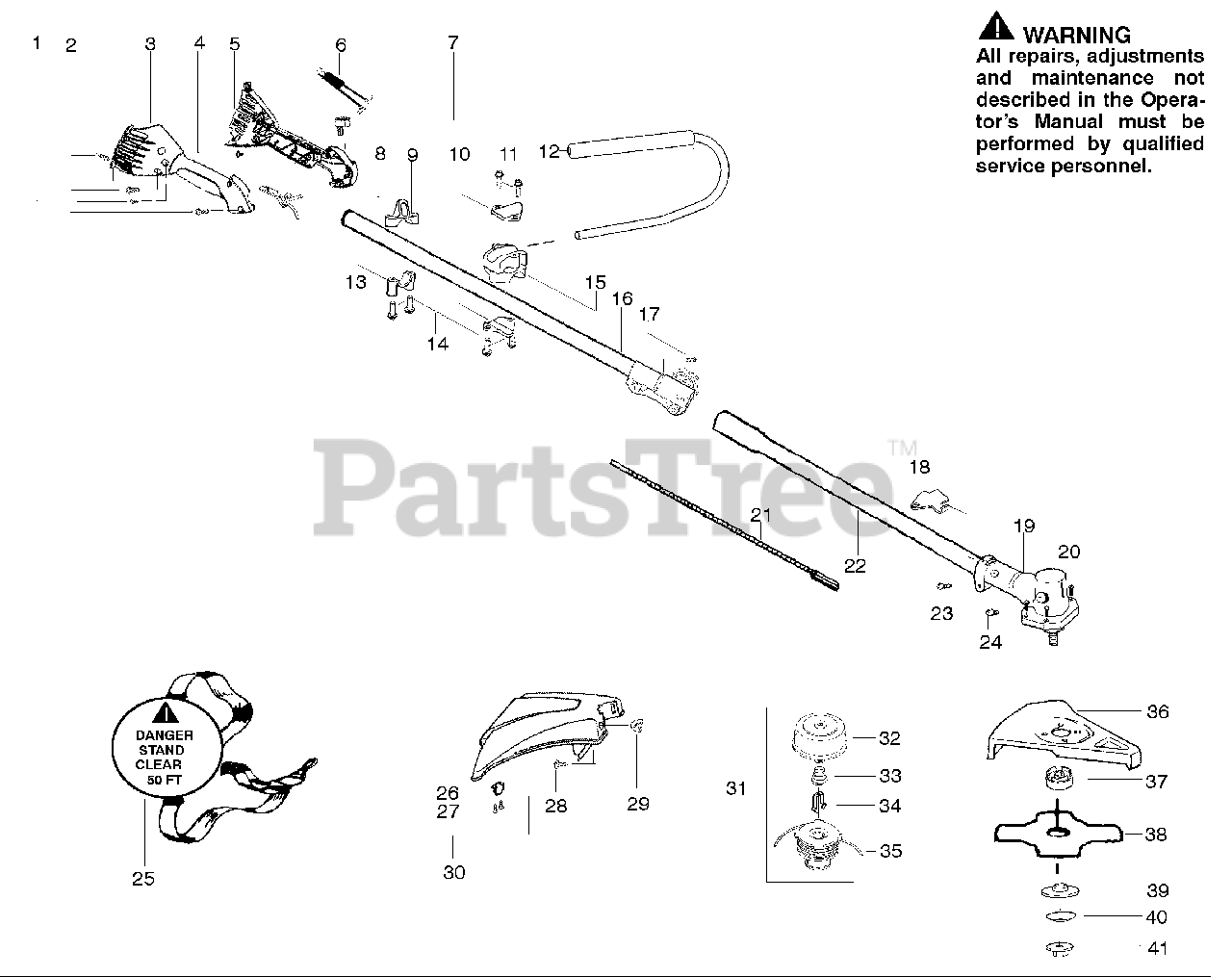

PP 336 - Poulan String Trimmer (2009-02) Handles and Controls Parts Diagram

String Trimmer

Handles and Controls Parts Diagram

  • Title

1

Electrolux/AYP 530015805

Screw-alignment
(Superseded to 530015886)

$6.49

$

In Stock, only 4 left!

0

2

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, only 4 left!

0

3

Electrolux/AYP 530057983

Hsg.-Throttle-right

$

$

Not available

4

Electrolux/AYP 530016326

Screw-Cable Retention

$

$

Not available

5

Electrolux/AYP 530057984

Hsg.-Throttle-left

$

$

Not available

6

Electrolux/AYP 530058843

Assy-Wire

$

$

Not available

7

Electrolux/AYP 530069572

Kit-Switch

$9.49

$

In Stock, only 3 left!

0

8

Electrolux/AYP 530058759

Trigger-Throttle
(Superseded to 545017701)

$

$

Not available

9

Electrolux/AYP 530057986

Clamp-Harness (upper)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530058563

Clamp-Bracket

$4.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, only 4 left!

0

12

Electrolux/AYP 530071394

Assy.-Handlebar

Note: (incl. grip,cap,decal)

$12.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530057987

Clamp-Harness (lower)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530015940

Screw

$6.49

$

In Stock, Qty 8

0

15

Electrolux/AYP 530058765

Clamp-Handlebar

$

$

Not available

16

Electrolux/AYP 530071791

Kit-Upper Shaft
(Superseded to 575260201)

Note: (Incl. Flex and clamp)

$37.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530057554

Bracket-Shield

$6.49

$

In Stock, only 2 left!

0

19

Electrolux/AYP 530096100

Gearbox

$62.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530016312

Screw

$6.49

$

In Stock, only 3 left!

0

21

Electrolux/AYP 530096218

Shaft-Flex (lower)
(Superseded to 545173003)

$10.99

$

In Stock, only 2 left!

0

22

Electrolux/AYP 530071790

Assy-Lower Shaft

$

$

Not available

23

Electrolux/AYP 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

24

Electrolux/AYP 530016224

Screw

$4.99

$

In Stock, Qty 5

0

25

Electrolux/AYP 530094408

Shoulder Strap
(Superseded to 530094417)

$

$

Not available

26

Electrolux/AYP 530052285

Limiter-Line

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 17

0

28

Electrolux/AYP 530015820

Bolt

$4.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

30

Electrolux/AYP 530071765

Kit-Shield Assy.
(Superseded to 545081001)

Note: (incl. 26,27)

$27.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 952711581

Accy-Cutting Head
(Superseded to 952711550)

Note: (incl. 32,35)

$

$

Not available

32

Electrolux/AYP 530095772

Assy-Hub/Arbor

$

$

Not available

33

Electrolux/AYP 530053241

Spring-Return

$

$

Not available

34

Electrolux/AYP 530401957

Retainer-Spool

$4.99

$

In Stock, only 4 left!

0

35

Electrolux/AYP 952711580

Accy-Wound Spool
(Superseded to 952711551)

$

$

Not available

36

Electrolux/AYP 530071383

Kit-Metal Shield

$14.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 530095815

Dust cup

$11.99

$

In Stock, Qty 6

0

38

Electrolux/AYP 952711584

Accy.-Weed Blade

$

$

Not available

39

Electrolux/AYP 530095816

Washer

$10.99

$

In Stock, Qty 5

0

40

Electrolux/AYP 530016240

Washer-Belleville

$6.49

$

In Stock, only 1 left!

0

41

Electrolux/AYP 530015793

Nut-Flange

$6.49

$

In Stock, Qty 6

0

41

Electrolux/AYP 545137272

Operator Manual

Note: Not Shown

$

$

Not available

41

Electrolux/AYP 545176003

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

41

Electrolux/AYP 530056335

Decal-Blade Direction

Note: Not Shown

$2.23

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 530057369

Decal-Start Inst.

Note: Not Shown

$

$

Not available

41

Electrolux/AYP 530031159

Wrench-Hex 5/32"

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0

41

Electrolux/AYP 530056221

Decal-Upper Shaft Warning

Note: Not Shown

$

$

Not available
