PP 336 - Poulan Pro Chainsaw Internal Power Unit Parts Diagram

Chainsaw

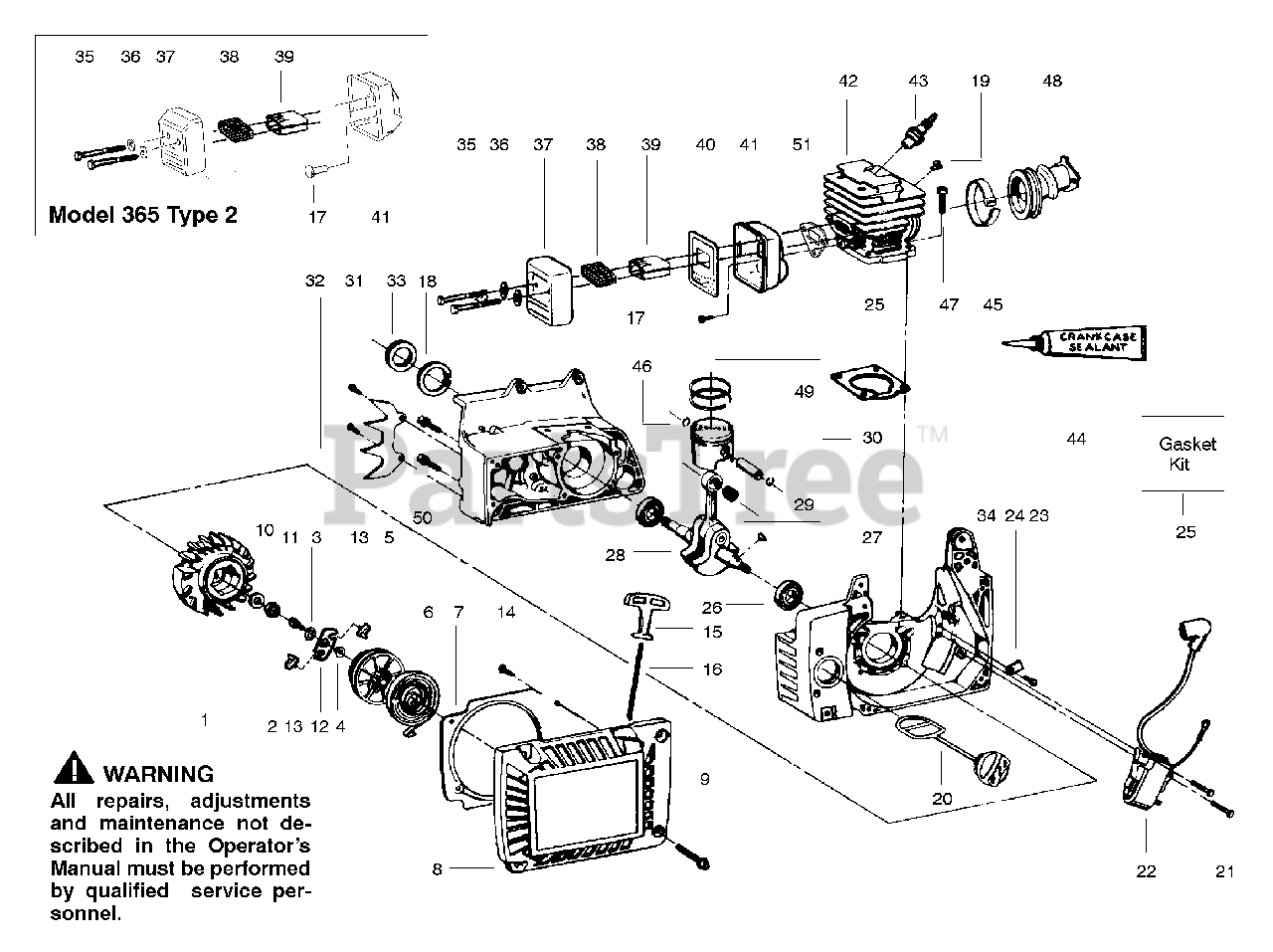

Internal Power Unit Parts Diagram

  • Title

1

Poulan 530039155

Flywheel

$

$

Not available

2

Poulan 530001733

Nut

$

$

Not available

3

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

4

Poulan 530027163

Retainer-Starter Pulley

$

$

Not available

5

Poulan 530036054

Starter Pulley

$

$

Not available

6

Poulan 530042067

Spring-Starter Pulley
(Superseded to 545008009)

$

$

Not available

7

Poulan 530052435

Baffle Plate

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530014893

Fan Housing Ass'y.

$

$

Not available

9

Poulan 530015709

Screw
(Superseded to 530015708)

$1.49

$

Usually ships in 3-10 days

0

10

Poulan 530015441

Washer-Conical

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 530015713

Screw

$

$

Not available

12

Poulan 530036055

Starter Cam

$

$

Not available

13

Poulan 530027162

Starter Dog

$6.49

$

In Stock, only 2 left!

0

14

Poulan 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 530042056

Starter Handle

$

$

Not available

16

Poulan 530069233

Rope Kit

$7.49

$

In Stock, Qty 20+

0

17

Poulan 530015720

Screw

$

$

Not available

18

Poulan 530001516

Ring

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530015696

Clip

$

$

Not available

20

Poulan 530010846

Oil Cap Ass'y.
(Superseded to 530057236)

Note: (Incl. O Ring)

$

$

Not available

21

Poulan 530015708

Screw
(Superseded to 530015425)

$1.49

$

Usually ships in 3-10 days

0

22

Poulan 530039128

Ignition Module

$

$

Not available

23

Poulan 530015306

Screw

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530027264

Clamp

$2.49

$

Usually ships in 3-10 days

0

25

Poulan 530069487

Engine Gasket Set

$

$

Not available

26

Poulan 530032093

Crankshaft Bearing

$

$

Not available

27

Poulan 530002595

Flywheel Key

$5.99

$

In Stock, Qty 7

0

28

Poulan 530027143

Crankshaft/Rod Ass'y.

$157.99

$

Usually ships in 3-10 days

0

29

Poulan 530032111

Piston Pin Bearing

$

$

Not available

30

Poulan 530069547

Piston Kit Model 336

Note: (Incl.29.,46.,49.)

$

$

Not available

30

Poulan 530069549

Piston Kit Model 365

Note: (Incl.29.,46.,49.)

$

$

Not available

31

Poulan 530015875

Screw

$4.99

$

In Stock, only 3 left!

0

32

Poulan 530027184

Spur

$

$

Not available

33

Poulan 530019146

Crankshaft Seal

$4.99

$

In Stock, only 3 left!

0

34

Poulan 530014748

Crankcase Ass'y. Model 336

Note: (Incl. 18.,26.,33.,from "Handle & Blade" #20.-22.,32.,33.,36.37.

$

$

Not available

34

Poulan 530014715

Crankcase Ass'y. Model 365

Note: (Incl. 18.,26.,33.,from "Handle & Blade" #20.-22.,32.,33.,36.37.

$

$

Not available

35

Poulan 530015718

Screw Model 336 & 365 (Type 1)

$

$

Not available

35

Poulan 530016192

Screw Model 365 Type 2

$

$

Not available

36

Poulan 530015722

Washer

$5.99

$

In Stock, only 3 left!

0

37

Poulan 530036170

Muffler Cover Model 336
(Superseded to 530056612)

$

$

Not available

37

Poulan 530036550

Muffler Cover Model 365 Type 1

$

$

Not available

37

Poulan 530069796

Muffler Cover Model 365 Type 2

$

$

Not available

38

Poulan 530047561

Spark Arrestor Screen Model 336

$

$

Not available

38

Poulan 530036714

Spark Arrestor Screen Model 365 Type 1

$

$

Not available

38

Poulan 530030205

Spark Arrestor Screen Model 365 Type 2

$

$

Not available

39

Poulan 530047560

Muffler Diffuser Model 336

$

$

Not available

39

Poulan 530036172

Muffler Diffuser Model 365 Type 1

$6.49

$

Usually ships in 3-10 days

0

39

Poulan 530049362

Muffler Diffuser Model 365 Type 2

$

$

Not available

40

Poulan 530036173

Muffler Baffle Plate Model 336

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 530036551

Muffler Baffle Plate Model 365 Type 1

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530036171

Muffler Body Model 336

$

$

Not available

41

Poulan 530036549

Muffler Body Model 365 Type 1

$

$

Not available

41

Poulan 530049361

Muffler Body Model 365 Type 2

$

$

Not available

42

Poulan 530012367

Cylinder Model 336

$

$

Not available

42

Poulan 530036154

Cylinder Model 365

$

$

Not available

43

Poulan 530030034

Spark Plug Model 336

$

$

Not available

43

Poulan 952030164

Spark Plug Model 365
(Superseded to 952030249)

$4.99

$

In Stock, Qty 20+

0

44

Poulan 530030054

Sealant

$

$

Not available

45

Poulan 530027285

Clamp Ass'y.

$

$

Not available

46

Poulan 530015697

Retainer

$6.49

$

In Stock, Qty 6

0

47

Poulan 530001624

Screw

$3.99

$

Usually ships in 3-10 days

0

48

Poulan 530027218

Carb. Adapter

$

$

Not available

49

Poulan 530030176

Piston Ring Model 336

$

$

Not available

49

Poulan 530036176

Piston Ring Model 365

$

$

Not available

50

Poulan 530015707

Screw

$4.99

$

In Stock, only 2 left!

0

51

Poulan 530021118

Muffler Gasket

$

$

Not available
