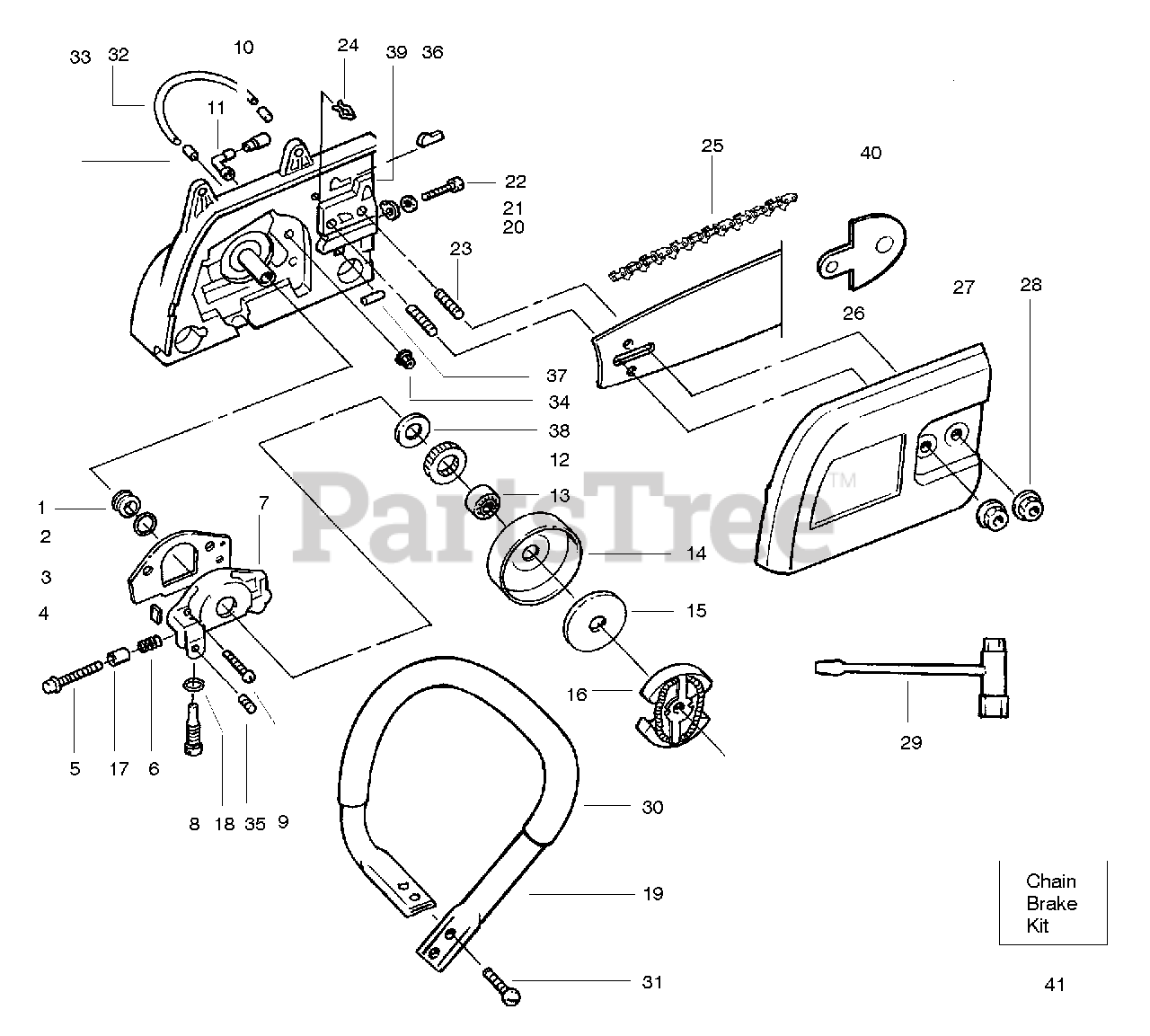

PP 336 - Poulan Pro Chainsaw Handle & Blade Parts Diagram

Chainsaw

Handle & Blade Parts Diagram

  • Title

1

Poulan 530027140

Worm Gear

$

$

Not available

2

Poulan 530019147

Seal

$

$

Not available

3

Poulan 530069487

Engine Gasket Set

$

$

Not available

4

Poulan 530027128

Dust Plug

$

$

Not available

5

Poulan 530014204

Shaft Ass'y.

$

$

Not available

6

Poulan 530027126

Spring

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 530069218

Oil Pump Kit

Note: (Incl.1.,2.,4.-6.,8.,17.,18.,35.)

$

$

Not available

8

Poulan 530015873

Screw-Oiler Adjusting

$8.99

$

Usually ships in 3-10 days

0

9

Poulan 530015871

Screw
(Superseded to 530015650)

$

$

Not available

10

Poulan 530027272

Oil Pickup & Filter

$

$

Not available

11

Poulan 530027192

Oiler Intake Line

$

$

Not available

12

Poulan 530028650

Rim Sprocket Model 336
(Superseded to 640200010)

$8.49

$

In Stock, Qty 13

0

12

Poulan 530048098

Rim Sprocket Model 365

$12.99

$

Usually ships in 3-10 days

0

13

Poulan 530032049

Bearing

$

$

Not available

14

Poulan 530048083

Drum Sprocket

$

$

Not available

15

Poulan 530027161

Clutch Plate

$1.99

$

Usually ships in 3-10 days

0

16

Poulan 530014161

Clutch Ass'y.

$

$

Not available

17

Poulan 530027129

Oiler Gear Spur

$

$

Not available

18

Poulan 530019079

"O" Ring

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530047163

Handlebar Ass'y.
(Superseded to 530053350)

$27.99

$

Usually ships in 3-10 days

0

20

Poulan 530023064

Bar Adjusting Pin

$8.99

$

Usually ships in 3-10 days

0

21

Poulan 530038593

Retainer-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

22

Poulan 530016110

Screw

$4.99

$

In Stock, Qty 20+

0

23

Poulan 530016238

Bar Stud

$

$

Not available

24

Poulan 530015108

Vent Pin

$3.99

$

In Stock, only 2 left!

0

25

Poulan 952051323

Chain Model 336-16"

$

$

Not available

25

Poulan 952051310

Chain Model 336-20"

$

$

Not available

25

Poulan 952051403

Chain Model 365-16"

$

$

Not available

25

Poulan 952051397

Chain Model 365-20"
(Superseded to 952051266)

$

$

Not available

26

Poulan 952044373

Bar Model 336-16"

$

$

Not available

26

Poulan 952044377

Bar Model 336-20"

$

$

Not available

26

Poulan 952044560

Bar Model 365-16"

$

$

Not available

26

Poulan 952044561

Bar Model 365-20"

$

$

Not available

27

Poulan 530069567

Bar Clamp

Note: (Incl.37.)

$

$

Not available

28

Poulan 530015251

Nut

$6.49

$

In Stock, only 1 left!

0

29

Poulan 530031135

Scrench Silver Finish (1/2")
(Superseded to 530031163)

$9.99

$

In Stock, Qty 12

0

29

Poulan 530031146

Scrench Gold Finish (9/16")
(Superseded to 545006011)

$

$

Not available

30

Poulan 530027776

Handlebar Grip

$

$

Not available

31

Poulan 530016058

Screw

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 530021061

Oiler Discharge Line

$

$

Not available

33

Poulan 530002464

Oiler Discharge Sleeve

$3.99

$

In Stock, only 1 left!

0

34

Poulan 530015422

Tubing Nut

$

$

Not available

35

Poulan 530015752

Oiler Adjustment Pin

$

$

Not available

36

Poulan 530027222

Chain Pad-Top

$

$

Not available

37

Poulan 530027223

Chain Pad

$

$

Not available

38

Poulan 530015733

Washer-Thrust

$4.99

$

In Stock, only 4 left!

0

39

Poulan 530029236

Crankcase Plug

$

$

Not available

40

Poulan 530037091

Replaceable Sprocket Nose

$60.99

$

Usually ships in 3-10 days

0

41

Poulan 952069321

Chain Brake Kit

$

$

Not available

Poulan 530083885

Operator Manual

Note: Not Shown

$9.99

$

Usually ships in 3-10 days

0

Poulan 530047658

Kickback Decal Model 336

Note: Not Shown

$

$

Not available

Poulan 530047941

Kickback Decal Model 365

Note: Not Shown

$

$

Not available

Poulan 530029751

Bar & Chain Repl. Decal Model 336-16"

Note: Not Shown

$

$

Not available

Poulan 530029753

Bar & Chain Repl. Decal Model 336-20"

Note: Not Shown

$

$

Not available

Poulan 530037176

Bar & Chain Repl. Decal Model 365-16"

Note: Not Shown

$

$

Not available

Poulan 530047870

Bar & Chain Repl. Decal Model 365-20"

Note: Not Shown

$

$

Not available
