PP 331 - Poulan Pro String Trimmer Handle & Shaft Assembly Parts Diagram

String Trimmer

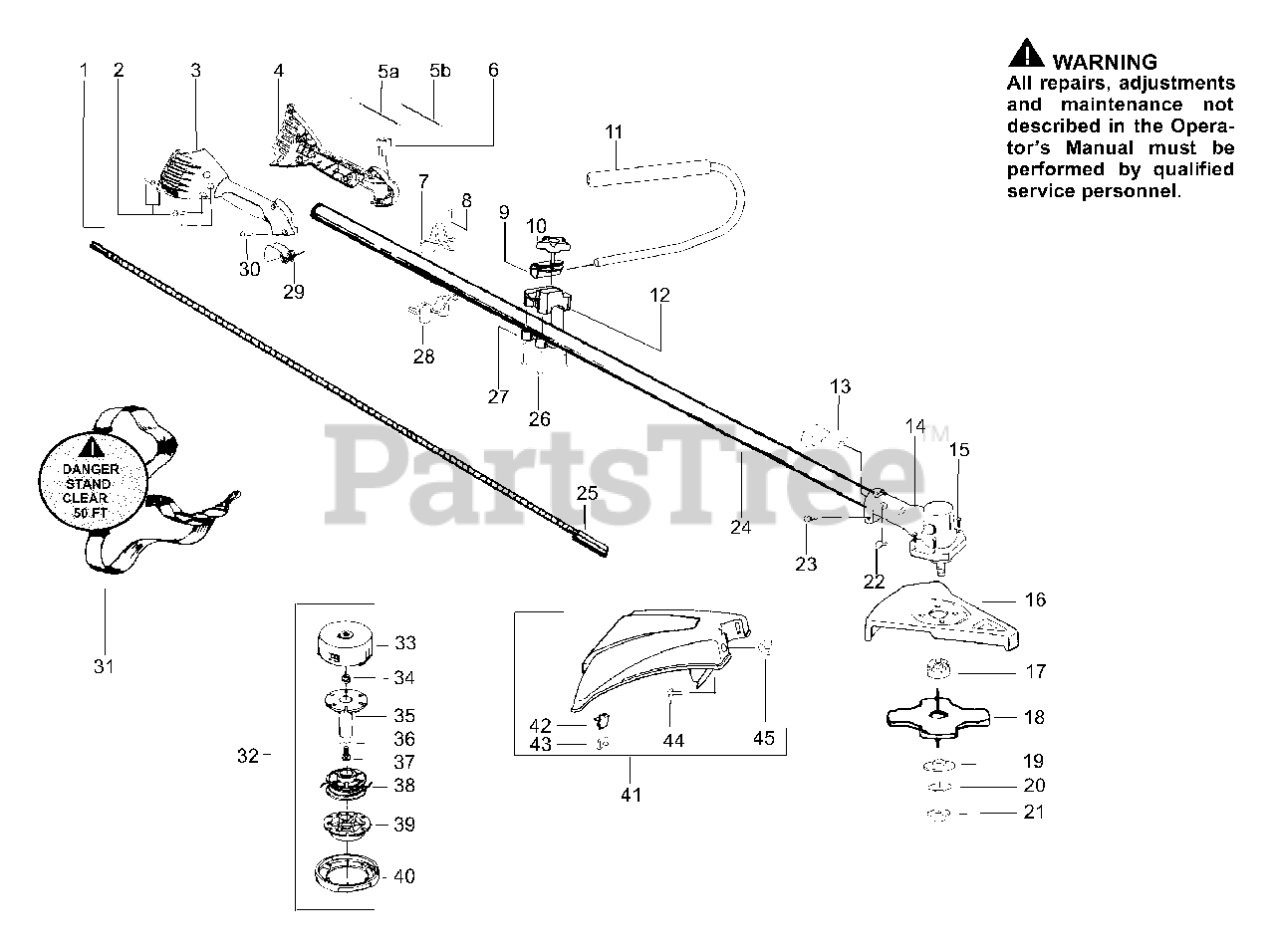

Handle & Shaft Assembly Parts Diagram

  • Title

1

Poulan 530015805

Screw-alignment
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

2

Poulan 530015886

Screw-10-24

$6.49

$

In Stock, only 3 left!

0

3

Poulan 530054837

Throttle hsg-right

$

$

Not available

4

Poulan 530071553

Kit-Left Throttle hsg.

$9.99

$

Usually ships in 3-10 days

0

5A

Poulan 530054943

Assy-Wire Assy-Front Wire

$

$

Not available

5B

Poulan 530055724

Assy-Wire Assy-Front Wire (Upper)

$

$

Not available

6

Poulan 530071356

Kit-Switch

$8.99

$

In Stock, only 1 left!

0

7

Poulan 530055392

Clamp-Harness (upper)
(Superseded to 530071605)

$4.99

$

Usually ships in 3-10 days

0

8

Poulan 530015770

Screw

$

$

Not available

9

Poulan 530095970

Clamp-Handlebar
(Superseded to 530071868)

$8.99

$

In Stock, Qty 11

0

10

Poulan 530016336

Knob
(Superseded to 530071868)

$8.99

$

In Stock, Qty 11

0

11

Poulan 530071394

Assy.-Handlebar

Note: (Incl. grip,cap,decal)

$12.99

$

Usually ships in 3-10 days

0

12

Poulan 530095971

Base-Clamp
(Superseded to 530071868)

$8.99

$

In Stock, Qty 11

0

13

Poulan 530095812

Bracket-Shield

$4.99

$

Usually ships in 3-10 days

0

14

Poulan 530071585

Kit-Gearbox

$

$

Not available

15

Poulan 530016312

Screw

$6.49

$

In Stock, only 3 left!

0

16

Poulan 530071383

Kit-Metal Shield

$14.99

$

Usually ships in 3-10 days

0

17

Poulan 530095815

Dust cup

$11.99

$

In Stock, Qty 6

0

18

Poulan 952711584

Accy.-Weed Blade

$

$

Not available

19

Poulan 530095816

Washer

$10.99

$

In Stock, Qty 5

0

20

Poulan 530016240

Washer-Belleville

$6.49

$

In Stock, only 1 left!

0

21

Poulan 530015793

Nut-Flange

$6.49

$

In Stock, Qty 5

0

22

Poulan 530016371

Screw

$

$

Not available

23

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

24

Poulan 530055373

Assy.-Driveshaft

$44.99

$

Usually ships in 3-10 days

0

25

Poulan 530095938

Shaft-Flex Drive

$21.99

$

Usually ships in 3-10 days

0

26

Poulan 530015770

Screw

$

$

Not available

27

Poulan 530071684

Kit-Clamp-Tube
(Superseded to 530071868)

Note: (Incl. #26)

$8.99

$

In Stock, Qty 11

0

28

Poulan 530055394

Clamp-Harness (lower)

$

$

Not available

29

Poulan 530054940

Lever-Throttle

$3.99

$

In Stock, Qty 8

0

30

Poulan 530015886

Screw

$6.49

$

In Stock, only 3 left!

0

31

Poulan 530094417

Shoulder Strap

$

$

Not available

32

Poulan 952711583

Accy.-Head TNG 2
(Superseded to 952701643)

Note: (Incl. 33-40)

$

$

Not available

33

Poulan 530094931

Assy.-Hub/Arbor
(Superseded to 952701643)

$

$

Not available

34

Poulan 530094956

Spring

$0.99

$

Usually ships in 3-10 days

0

35

Poulan 530069312

Kit-Locking Plate

$

$

Not available

36

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

37

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

38

Poulan 952711582

Accy.-Spool TNG 2

$

$

Not available

39

Poulan 530094522

Button-Release

$

$

Not available

40

Poulan 530094521

Cover

$10.99

$

Usually ships in 3-10 days

0

41

Poulan 530069779

Kit-Shield Assy.

Note: (Incl. 42-45)

$

$

Not available

42

Poulan 530052285

Limiter-Line

$3.99

$

Usually ships in 3-10 days

0

43

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

44

Poulan 530015820

Bolt

$4.99

$

In Stock, only 1 left!

0

45

Poulan 530016118

Wingnut
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

Poulan 530163113

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530055349

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

Poulan 530056415

Decal-Start. Inst.

Note: Not Shown

$

$

Not available
