PP 325 - Poulan Pro String Trimmer Cutting Equipment Type 2 Parts Diagram

String Trimmer

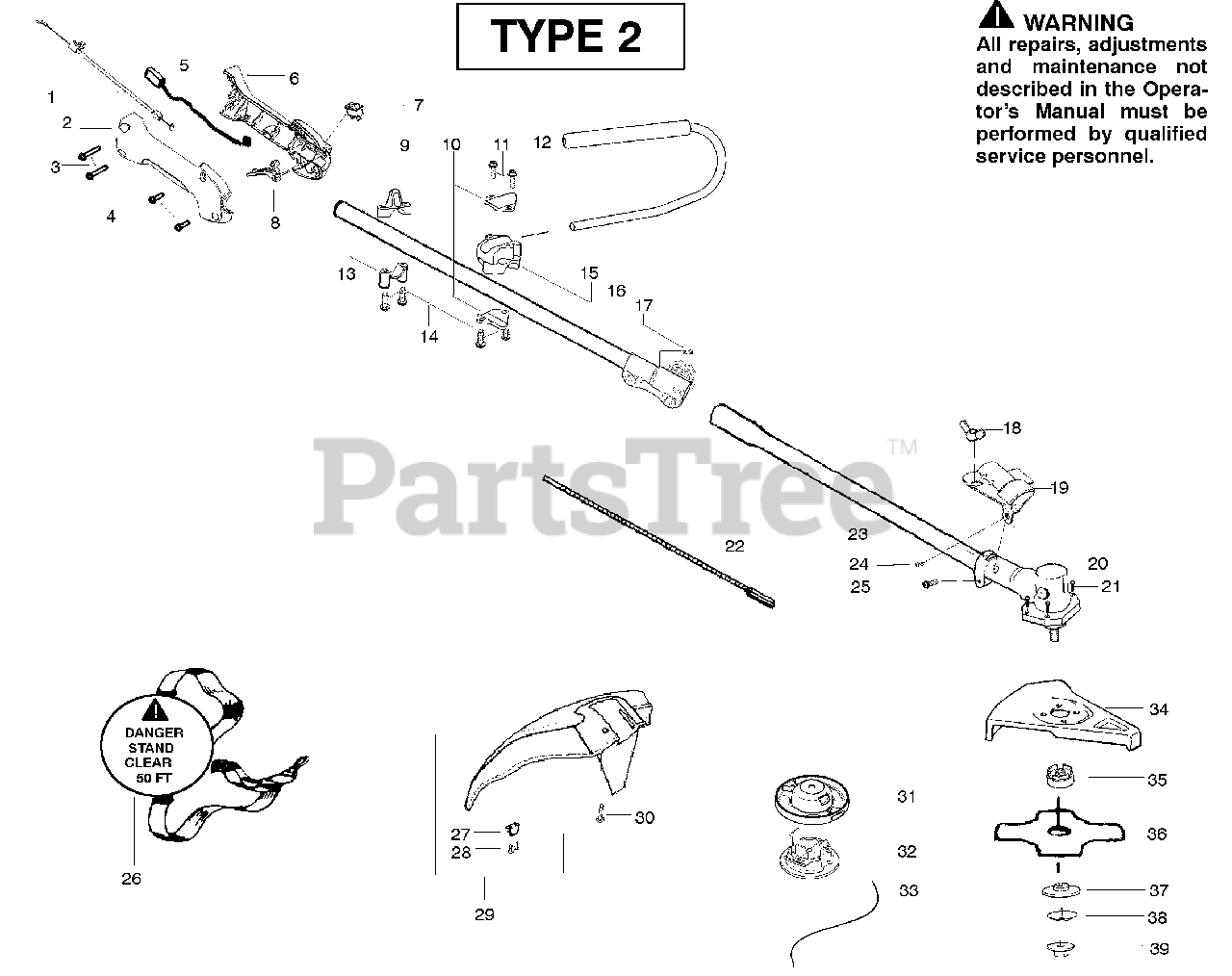

Cutting Equipment Type 2 Parts Diagram

  • Title

2

Poulan 530059759

Assy-Throttle Cable

$17.99

$

Usually ships in 3-10 days

0

2

Poulan 530057541

Hsg.-Throttle-right

$12.99

$

In Stock, only 2 left!

0

3

Poulan 530016406

Screw

$6.49

$

In Stock, only 1 left!

0

4

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

5

Poulan 530054183

Assy-Wire

$8.99

$

In Stock, only 1 left!

0

6

Poulan 530059760

Hsg.-Throttle-left

$9.99

$

Usually ships in 3-10 days

0

7

Poulan 545030601

Kit-Switch
(Superseded to 545049301)

$10.99

$

In Stock, Qty 10

0

8

Poulan 545077601

Trigger-Throttle
(Superseded to 530049107)

$

$

Not available

9

Poulan 530057986

Clamp-Harness (upper)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 530058563

Clamp-Bracket

$4.99

$

In Stock, only 1 left!

0

11

Poulan 530015886

Screw

$6.49

$

In Stock, only 3 left!

0

12

Poulan 530071974

Assy.-Handlebar

Note: (incl. grip,cap,decal)

$27.99

$

Usually ships in 3-10 days

0

13

Poulan 530057987

Clamp-Harness (lower)

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 530015940

Screw

$6.49

$

In Stock, Qty 8

0

15

Poulan 545024501

Clamp-Handlebar

$6.99

$

In Stock, only 4 left!

0

16

Poulan 530071791

Kit-Upper Shaft
(Superseded to 575260201)

Note: (Incl. Flex and clamp)

$37.99

$

In Stock, only 1 left!

0

17

Poulan 530016344

Screw

$

$

Not available

18

Poulan 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

19

Poulan 545150701

Bracket-Shield

$5.99

$

In Stock, only 2 left!

0

20

Poulan 530096100

Gearbox

$62.99

$

Usually ships in 3-10 days

0

21

Poulan 530016312

Screw

$6.49

$

In Stock, only 3 left!

0

22

Poulan 530096218

Shaft-Flex (lower)
(Superseded to 545173003)

$10.99

$

In Stock, only 2 left!

0

23

Poulan 530071789

Assy-Lower Shaft

$26.99

$

Usually ships in 3-10 days

0

24

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

25

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

26

Poulan 530094408

Shoulder Strap
(Superseded to 530094417)

$

$

Not available

27

Poulan 530052286

Limiter-Line

$

$

Not available

28

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

29

Poulan 530071997

Kit-Shield Assy.

Note: (incl. 27,28)

$20.99

$

Usually ships in 3-10 days

0

30

Poulan 530015820

Bolt

$4.99

$

In Stock, only 1 left!

0

31

Poulan 545049401

Head-Fixed line
(Superseded to 545053902)

$37.99

$

In Stock, only 3 left!

0

32

Poulan 545049501

Cap-Fixed Line

$9.99

$

Usually ships in 3-10 days

0

33

Poulan 952711635

Accy-Line (12 pcs.)

$

$

Not available

34

Poulan 530071383

Kit-Metal Shield

$14.99

$

Usually ships in 3-10 days

0

35

Poulan 530095815

Dust cup

$11.99

$

In Stock, Qty 6

0

36

Poulan 952711584

Accy.-Weed Blade

$

$

Not available

37

Poulan 530095816

Washer

$10.99

$

In Stock, Qty 5

0

38

Poulan 530016240

Washer-Belleville

$6.49

$

In Stock, only 1 left!

0

39

Poulan 530015793

Nut-Flange

$6.49

$

In Stock, Qty 5

0

39

Poulan 545177326

Operator Manual

Note: Not Shown

$

$

Not available

39

Poulan 545176003

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

39

Poulan 530056335

Decal-Blade Direction

Note: Not Shown

$2.23

$

Usually ships in 3-10 days

0

39

Poulan 530031159

Wrench-Hex 5/32"

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0

39

Poulan 545167703

Decal-Upper Shaft Warning

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0
