PP 325 - Poulan Pro Chainsaw HANDLE, CHAIN & SAW Parts Diagram

Chainsaw

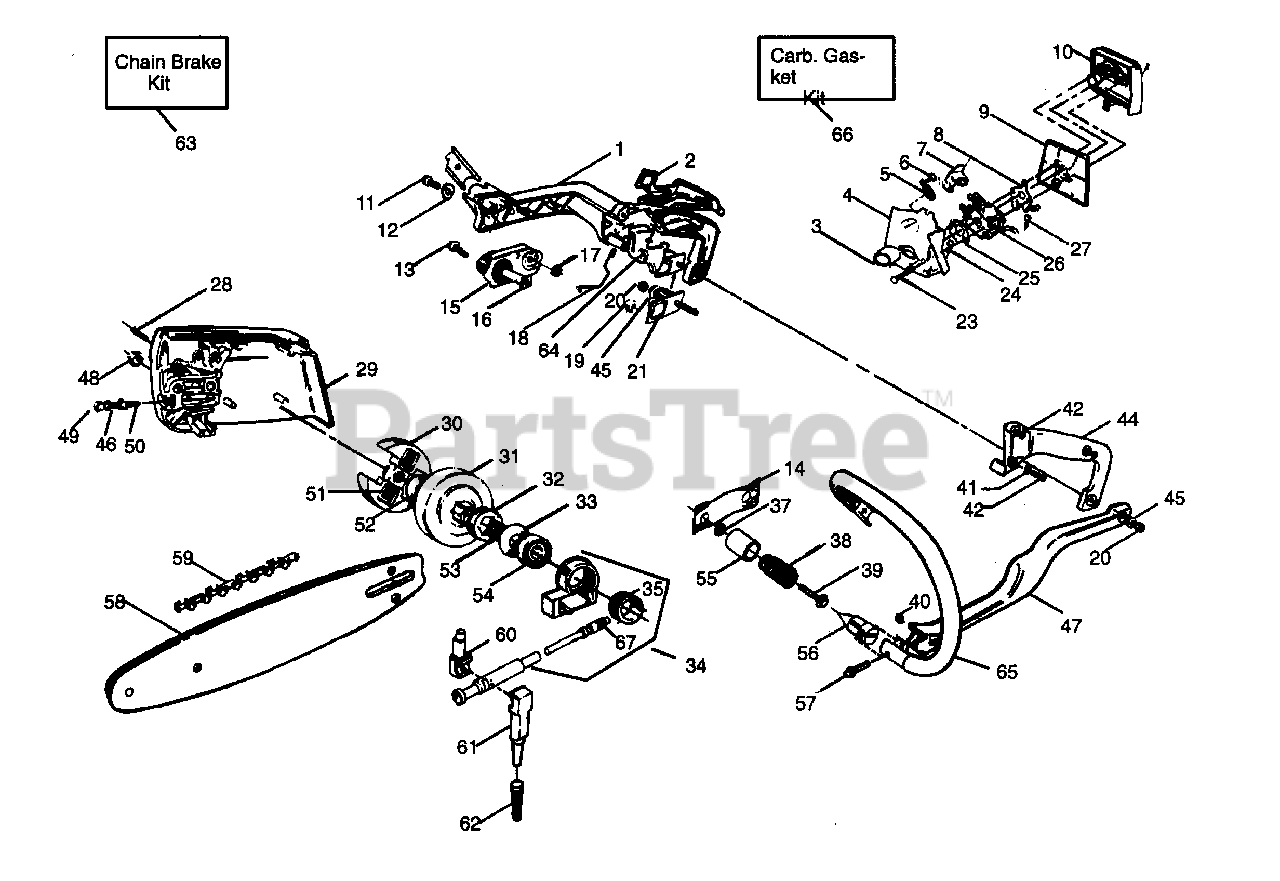

HANDLE, CHAIN & SAW Parts Diagram

  • Title
1

Poulan 503126202

Rear Handle

$72.99

$

Usually ships in 3-10 days

0

2

Poulan 503506901

Throttle Lockout
(Superseded to 503808701)

$

$

Not available

3

Poulan 503161602

Grommet
(Superseded to 530029814)

$13.99

$

In Stock, Qty 9

0

4

$

$

Not available

5

Poulan 505269314

Air Flow Plate

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 503211104

Screw
(Superseded to 729234401)

$2.49

$

Usually ships in 3-10 days

0

7

$3.49

$

Usually ships in 3-10 days

0

8

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 503507401

Air Filter

$

$

Not available

10

Poulan 503536101

Air Filter Cover

$

$

Not available

11

$2.99

$

In Stock, only 4 left!

0

12

$4.99

$

Usually ships in 3-10 days

0

13

Poulan 503200020

Screw
(Superseded to 503200250)

$6.99

$

In Stock, only 1 left!

0

14

$6.99

$

Usually ships in 3-10 days

0

15

Poulan 503564901

Top Isolator

$36.99

$

Usually ships in 3-10 days

0

16

$10.05

$

Usually ships in 3-10 days

0

17

Poulan 503226501

Nut
(Superseded to 503226504)

$6.49

$

In Stock, Qty 14

0

18

Poulan 503538401

Throttle Wire

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

$6.49

$

In Stock, Qty 7

0

21

Poulan 503486102

Rear Isolator

$30.99

$

Usually ships in 3-10 days

0

23

$

$

Not available

24

$

$

Not available

25

$5.99

$

Usually ships in 3-10 days

0

26

Poulan 503281501

Carburetor-WT-109

$

$

Not available

27

$

$

Not available

$1.49

$

Usually ships in 3-10 days

0

29

Poulan 503578101

Bar Clamp

$

$

Not available

30

Poulan 501455403

Clutch Ass'y.
(Superseded to 537110502)

$86.99

$

In Stock, only 1 left!

0

31

Poulan 503414001

Clutch Drum
(Superseded to 505303694)

$

$

Not available

32

Poulan 530028650

Rim Sprocket
(Superseded to 640200010)

$8.49

$

In Stock, Qty 10

0

33

$7.49

$

Usually ships in 3-10 days

0

34

Poulan 503118501

Oiler Ass'y. (Inc. 35, 67 and Oiler Body)
(Superseded to 503118502)

$66.99

$

Usually ships in 3-10 days

0

35

Poulan 503116201

Worm Gear
(Superseded to 538242650)

$21.23

$

Usually ships in 3-10 days

0

37

$7.49

$

In Stock, Qty 14

0

38

Poulan 505279536

Isolator Spring

$14.99

$

In Stock, only 2 left!

0

39

$6.49

$

In Stock, only 3 left!

0

40

Poulan 503226501

Nut
(Superseded to 503226504)

$6.49

$

In Stock, Qty 14

0

41

$3.99

$

Usually ships in 3-10 days

0

42

Poulan 503205516

Screw
(Superseded to 503202516)

$3.49

$

In Stock, only 2 left!

0

44

Poulan 503126504

Rear Handle

$

$

Not available

45

$6.49

$

In Stock, only 2 left!

0

$7.49

$

In Stock, Qty 8

0

47

503127301

Handle Brace

$

$

Not available

$3.99

$

In Stock, Qty 20+

0

49

Poulan 503586601

Screw
(Superseded to 538242560)

$4.99

$

Usually ships in 3-10 days

0

50

Poulan 505267895

Adj. Pin

$10.99

$

In Stock, only 1 left!

0

51

Poulan 505293166

Clutch Spring

$

$

Not available

52

$

$

Not available

53

$21.99

$

In Stock, Qty 20+

0

$19.99

$

In Stock, only 4 left!

0

55

$4.49

$

In Stock, only 1 left!

0

56

Poulan 505279211

Isolator Plug

$

$

Not available

57

$3.49

$

Usually ships in 3-10 days

0

$48.99

$

Usually ships in 3-10 days

0

59

$

$

Not available

60

Poulan 505310745

Oil Outlet

$7.82

$

Usually ships in 3-10 days

0

61

Poulan 503101601

Oil Inlet Line

$13.99

$

Usually ships in 3-10 days

0

62

Poulan 505315181

Oil Filter
(Superseded to 510044301)

$6.49

$

In Stock, only 2 left!

0

63

Poulan 503598801

Chain Brake Kit

$

$

Not available

64

Poulan 503495603

Throttle Trigger

$

$

Not available

65

Poulan 503127402

Handlebar

$

$

Not available

66

Poulan 505520131

Carb. Gasket Kit
(Superseded to 501883401)

$

$

Not available

67

Poulan 503116101

Gear
(Superseded to 503116102)

$10.99

$

Usually ships in 3-10 days

0
