PP 325 - Poulan Pro Chainsaw CARBURETOR BREAKDOWN Parts Diagram

Chainsaw

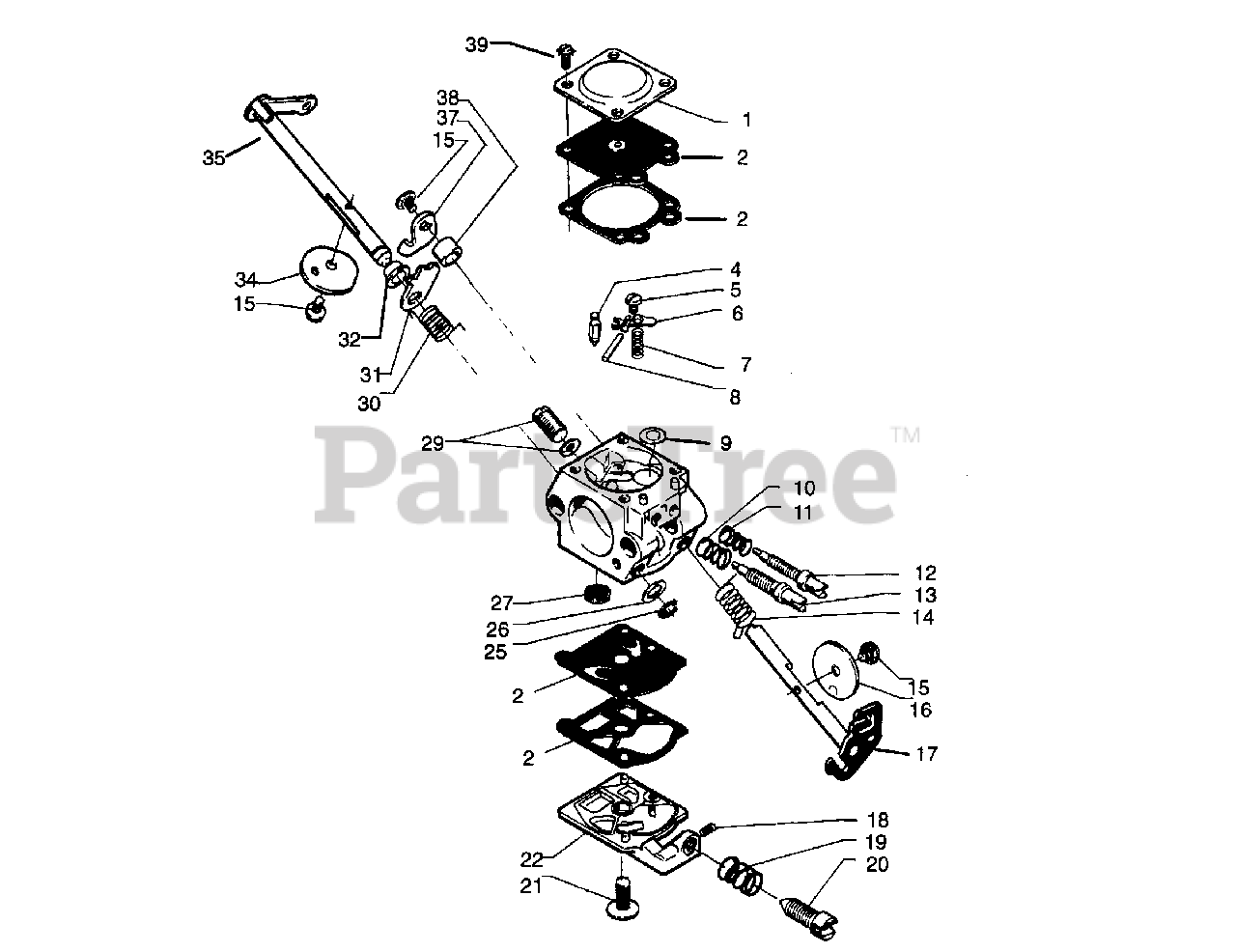

CARBURETOR BREAKDOWN Parts Diagram

  • Title

1

Poulan 505316754

Cover

$4.99

$

Usually ships in 3-10 days

0

2

Poulan 502103501

Gasket Kit

$16.76

$

Usually ships in 3-10 days

0

4

Poulan 503563401

Needle

$17.99

$

In Stock, Qty 10

0

5

Poulan 505316717

Screw

$7.99

$

In Stock, Qty 6

0

6

Poulan 505520127

Metering Lever

$5.99

$

Usually ships in 3-10 days

0

7

Poulan 504350905

Spring

$

$

Not available

8

Poulan 505520125

Pin

$7.99

$

In Stock, only 3 left!

0

9

Poulan 504100011

Ring
(Superseded to 503574201)

$7.99

$

In Stock, only 4 left!

0

10

Poulan 504210049

Spring

$13.99

$

In Stock, only 4 left!

0

11

Poulan 504210050

Spring
(Superseded to 530035293)

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 502102901

Low Speed Screw

$7.99

$

Usually ships in 3-10 days

0

13

Poulan 502102801

High Speed Screw

$

$

Not available

14

Poulan 505316760

Spring

$

$

Not available

15

Poulan 501468701

Screw

$7.99

$

In Stock, only 1 left!

0

16

Poulan 502114401

Valve

$

$

Not available

17

Poulan 503570201

Shaft Ass'y.

$

$

Not available

18

Poulan 501468401

Spring

$7.99

$

In Stock, only 1 left!

0

19

Poulan 501667801

Spring

$

$

Not available

20

Poulan 503104701

Adjusting Screw

$11.99

$

In Stock, only 1 left!

0

21

Poulan 501466901

Screw

$9.49

$

In Stock, Qty 5

0

22

Poulan 502102101

Cover

$

$

Not available

23

Poulan 502103501

Gasket

$16.76

$

Usually ships in 3-10 days

0

24

Poulan 502103501

Diaphragm

$16.76

$

Usually ships in 3-10 days

0

25

Poulan 502119801

Clip

$9.49

$

Usually ships in 3-10 days

0

26

Poulan 506028301

Ring

$13.99

$

Usually ships in 3-10 days

0

27

Poulan 501666101

Screen

$14.99

$

In Stock, Qty 5

0

29

Poulan 503109901

Valve Ass'y.

$21.99

$

Usually ships in 3-10 days

0

30

Poulan 506028201

Spring
(Superseded to 502119701)

$1.49

$

Usually ships in 3-10 days

0

31

Poulan 505316782

Plate

$2.49

$

Usually ships in 3-10 days

0

32

Poulan 502103101

Bushing

$11.99

$

Usually ships in 3-10 days

0

33

Poulan 501468701

Screw

$7.99

$

In Stock, only 1 left!

0

34

Poulan 502103201

Valve

$

$

Not available

35

Poulan 503592201

Shaft Ass'y.

$

$

Not available

36

Poulan 501468701

Screw

$7.99

$

In Stock, only 1 left!

0

37

Poulan 506028001

Cam

$

$

Not available

38

Poulan 502103001

Spacer

$13.99

$

Usually ships in 3-10 days

0

39

Poulan 503108701

Screw
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0
