PP 315 - Poulan Pro Chainsaw Engine 310, 315 Parts Diagram

Chainsaw

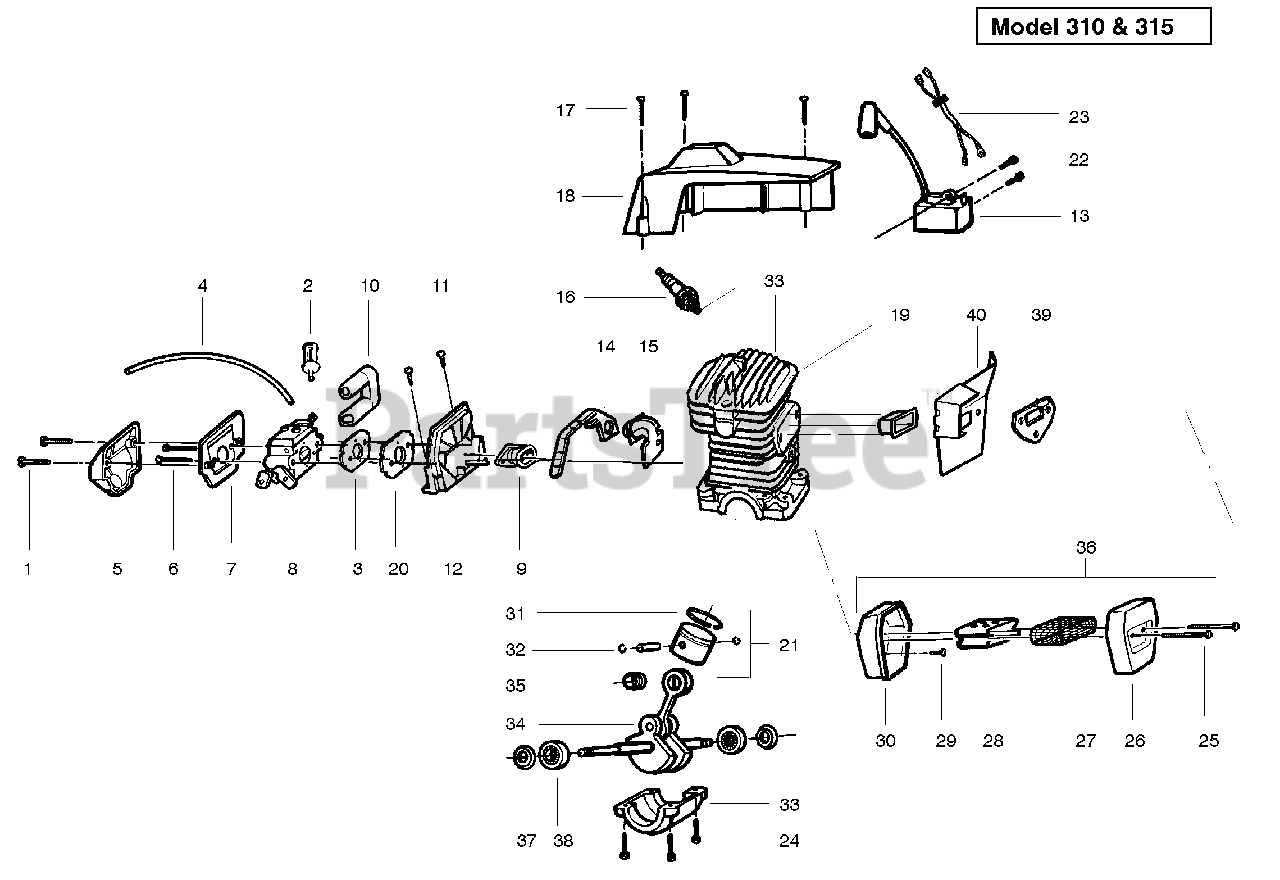

Engine 310, 315 Parts Diagram

  • Title

1

Poulan 530015899

Screw

$6.49

$

In Stock, Qty 11

0

2

Poulan 530014362

Fuel Pick-up
(Superseded to 530095646)

$6.99

$

In Stock, Qty 19

0

3

Poulan 530019172

Carburetor Gasket

$6.49

$

In Stock, Qty 9

0

4

Poulan 530069247

Fuel Line

$7.99

$

In Stock, Qty 20+

0

5

Poulan 530036141

Air Filter (Top)
(Superseded to 545057701)

$5.99

$

In Stock, only 2 left!

0

6

Poulan 530015970

Screw

$

$

Not available

7

Poulan 530037478

Air Filter (Bottom)
(Superseded to 530059738)

$

$

Not available

8

Poulan 530035330

Carburetor WT-285
(Superseded to 545013503)

$

$

Not available

9

Poulan 530037668

Intake Boot
(Superseded to 530071654)

$22.99

$

Usually ships in 3-10 days

0

10

Poulan 530037530

Carb. Grommet
(Superseded to 530037464)

$

$

Not available

11

Poulan 530015905

Screw
(Superseded to 530015814)

$6.49

$

In Stock, Qty 16

0

12

Poulan 530037667

Carb. Adaptor
(Superseded to 530053396)

$66.99

$

Usually ships in 3-10 days

0

13

Poulan 530039143

Ignition Module
(Superseded to 575803501)

$22.99

$

In Stock, Qty 9

0

14

Poulan 530019203

Turbo Clean Seal

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 530029813

Turbo Air Cleaner Ass'y.

$

$

Not available

16

Poulan 952030150

Spark Plug (CJ-7Y)

$3.99

$

In Stock, Qty 20+

0

17

Poulan 530016154

Screw

$3.99

$

In Stock, Qty 14

0

18

Poulan 530069716

Cylinder Shield

$

$

Not available

19

Poulan 530037652

Heat Insulator

$

$

Not available

20

Poulan 530037872

Carburetor Plate

$6.49

$

In Stock, Qty 6

0

21

Poulan 530069715

Piston Kit

Note: (Incl. 31, 32 & 35)

$

$

Not available

22

Poulan 530015895

Screw

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530037467

Switch Wire Ass'y.

$30.99

$

Usually ships in 3-10 days

0

24

Poulan 530015897

Screw

$6.49

$

In Stock, Qty 19

0

25

Poulan 530016170

Muffler Bolt

$

$

Not available

26

Poulan 530037249

Muffler Cover

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 530036103

Spark Screen

$

$

Not available

28

Poulan 530049031

Diffuser

$

$

Not available

29

Poulan 530015902

Bolt

$4.99

$

In Stock, Qty 6

0

30

Poulan 530037728

Muffler Body

$

$

Not available

31

Poulan 530047732

Piston Ring

$

$

Not available

32

Poulan 530015697

Piston Pin Retainer

$6.49

$

In Stock, Qty 6

0

33

Poulan 530069717

C'case&Cylinder Assy

$

$

Not available

34

Poulan 530029794

C'shaft & Rod Ass'y.
(Superseded to 503920801)

$

$

Not available

35

Poulan 530032117

Piston Pin Bearing

$

$

Not available

36

Poulan 530069707

Muffler Kit

Note: (Incl. 25,26,28,30)

$

$

Not available

37

Poulan 530019170

C'shaft Seal

$6.49

$

In Stock, Qty 9

0

38

Poulan 530032118

C'shaft Bearing

$

$

Not available

39

Poulan 530019205

Muffler Gasket

$6.49

$

In Stock, only 3 left!

0

40

Poulan 530047801

Muffler Plate
(Superseded to 530056256)

$12.99

$

Usually ships in 3-10 days

0

40

Poulan 530031163

Scrench

Note: Not Shown

$9.99

$

In Stock, Qty 12

0

40

Poulan 530031136

Worm Gear Puller

Note: Not Shown

$

$

Not available

40

Poulan 530031112

Clutch Ass'y. Tool

Note: Not Shown

$20.99

$

In Stock, only 1 left!

0

40

Poulan 530047941

Kickback Warning

Note: Not Shown

$

$

Not available

40

Poulan 530047839

Decal-Warning

Note: Not Shown

$

$

Not available
