PP 3000 B - Poulan Blower, Type 1 (2009-02) Product Complete Type 1 Parts Diagram

Blower, Type 1

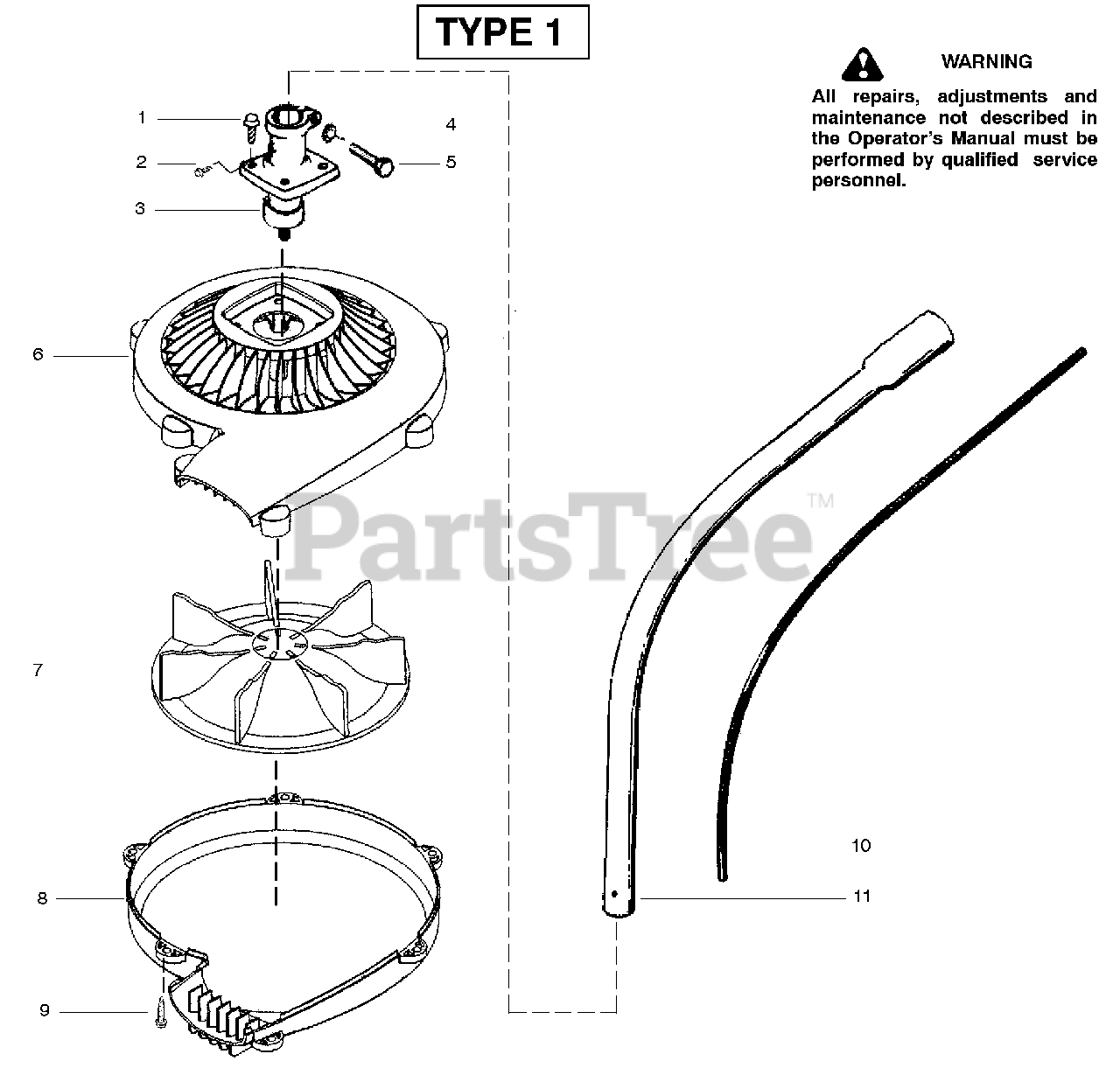

Product Complete Type 1 Parts Diagram

  • Title

1

Electrolux/AYP 530016360

Screw (brg hsg/blwr)

$2.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530015518

Screw-Shaft Alignment

$2.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 530094581

Assy-Bearing Hsg.

Note: (incl. # 2,4,5)

$

$

Not available

4

Electrolux/AYP 530092227

Washer-Lock (star)

$1.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 534828400

Bolt

$2.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 530095891

Blower-Scroll (upper)

$8.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530055123

Impeller

$6.91

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 530095892

Blower-Scroll (lower)

$17.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 530016273

Screw

$4.99

$

In Stock, Qty 8

0

10

Electrolux/AYP 530095884

Flexshaft-Split Boom

$3.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530095990

Assy-Lower Driveshaft

$14.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 530088053

Manual

Note: Not Shown

$

$

Not available

11

Electrolux/AYP 530095894

Hanger-Attachment

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

11

Electrolux/AYP 530056340

Decal-Impeller Hsg.
(Superseded to 545003363)

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0
