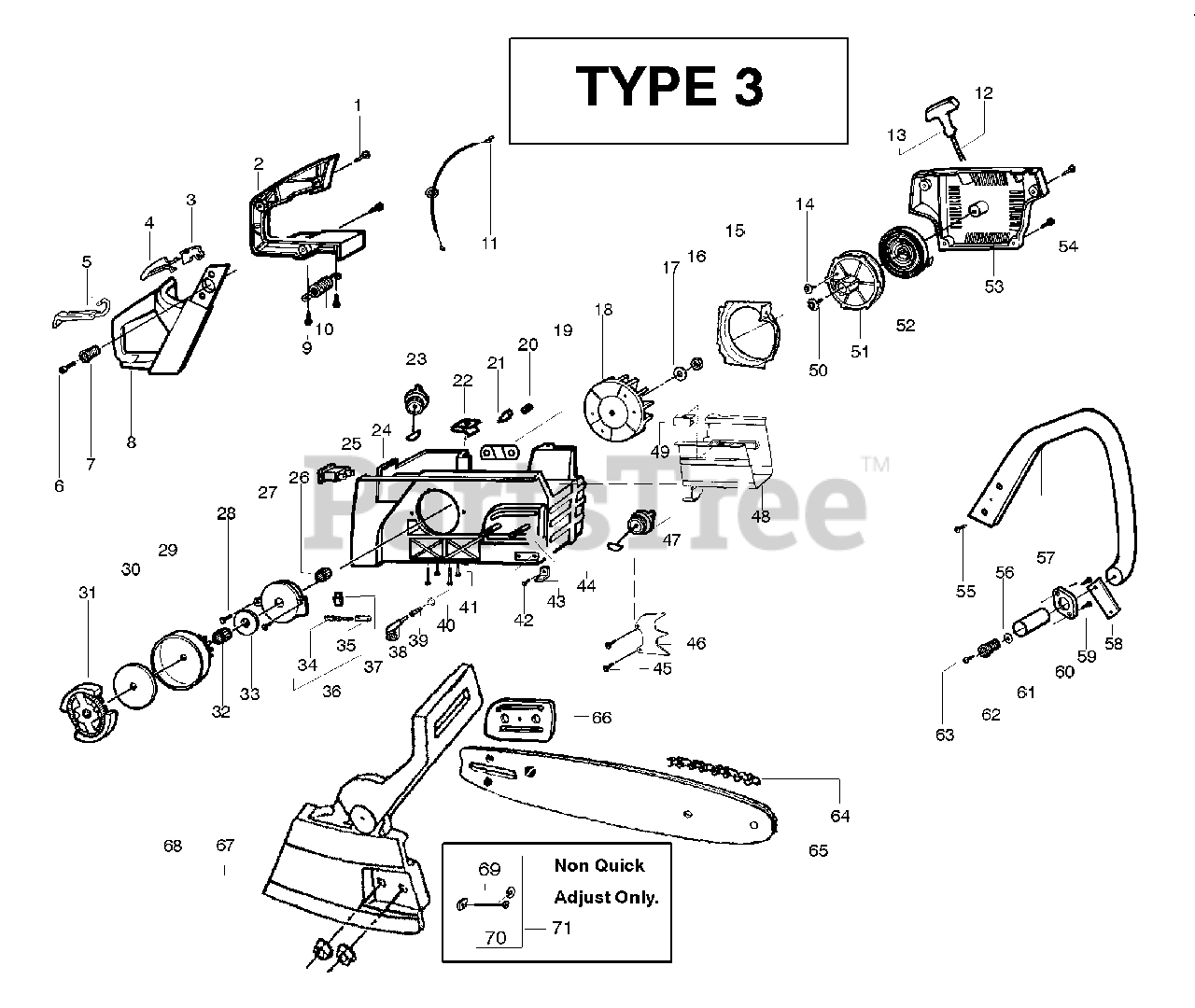

PP 295 - Poulan Pro Chainsaw, Type 3 Handle, Chassis & Bar Assembly Type 3 Parts Diagram

Chainsaw, Type 3

Handle, Chassis & Bar Assembly Type 3 Parts Diagram

  • Title

1

Poulan 530015957

Screw

$4.99

$

In Stock, Qty 6

0

2

Poulan 530036491

Cover-Handle
(Superseded to 530071272)

$

$

Not available

3

Poulan 530036097

Trigger-Throttle

$5.99

$

In Stock, only 3 left!

0

4

Poulan 530036098

Lockout-Throttle

$

$

Not available

5

Poulan 530053443

Lever-Choke

$

$

Not available

6

Poulan 530015937

Screw

$6.49

$

Usually ships in 3-10 days

0

7

Poulan 530038985

Spring-Isolator

$4.99

$

Usually ships in 3-10 days

0

8

Poulan 530036130

Handle-Rear
(Superseded to 530071272)

$

$

Not available

9

Poulan 530015906

Screw

$6.49

$

In Stock, only 2 left!

0

10

Poulan 530038986

Spring-Isolator

$

$

Not available

11

Poulan 530038471

Assy-Throttle Cable

Note: (Incl. Grommet)

$

$

Not available

12

Poulan 530069232

Kit-Rope

$7.49

$

In Stock, Qty 20+

0

13

Poulan 530049797

Handle-Starter
(Superseded to 530056422)

$

$

Not available

14

Poulan 530016080

Screw

$6.49

$

In Stock, only 1 left!

0

15

Poulan 530047667

Plate-Baffle Fan

$3.99

$

In Stock, only 4 left!

0

16

Poulan 530016071

Nut-Flywheel

$

$

Not available

17

Poulan 530015127

Washer-Flywheel

$6.49

$

In Stock, only 2 left!

0

18

Poulan 530039147

Assy-Flywheel
(Superseded to 575635502)

$28.99

$

In Stock, only 4 left!

0

19

Poulan 530036043

Plate-Support

Note: (Bar Stud)

$5.99

$

In Stock, only 3 left!

0

20

Poulan 530029868

Plug-Vent

$6.49

$

In Stock, only 2 left!

0

21

Poulan 530026119

Valve-Check

$5.99

$

In Stock, Qty 8

0

22

Poulan 530015922

Nut-Speed

$6.49

$

In Stock, Qty 5

0

23

Poulan 530010845

Assy-Fuel Cap

$

$

Not available

24

Poulan 530037551

Assy-Chassis

$

$

Not available

25

Poulan 530069572

Kit-Switch

$9.49

$

In Stock, only 3 left!

0

26

Poulan 530029833

Worm-Oil Pump

$8.99

$

In Stock, Qty 12

0

27

Poulan 530029835

Hsg.-Oil Pump
(Superseded to 545036801)

$20.99

$

In Stock, Qty 8

0

28

Poulan 530015896

Screw

$6.49

$

In Stock, Qty 13

0

29

Poulan 530069342

Kit-Clutch Drum

Note: (Incl. #33)

$40.99

$

In Stock, Qty 6

0

30

Poulan 530015611

Washer-Clutch

$6.49

$

In Stock, only 2 left!

0

31

Poulan 530014949

Assy-Clutch

$22.99

$

In Stock, only 1 left!

0

32

Poulan 530032119

Bearing-Clutch

$10.99

$

In Stock, Qty 5

0

33

Poulan 530015907

Washer-Thrust

$

$

Not available

34

Poulan 530029838

Assy-Plunger/Gear
(Superseded to 545036801)

$20.99

$

In Stock, Qty 8

0

35

Poulan 530029834

Barrel-Oil Pump
(Superseded to 545036801)

$20.99

$

In Stock, Qty 8

0

36

Poulan 530014410

Assy-Oil Pump
(Superseded to 545036801)

Note: (Incl. 28, 35, & 36)

$20.99

$

In Stock, Qty 8

0

37

Poulan 530019174

Seal-Oil
(Superseded to 545037101)

$10.99

$

In Stock, Qty 12

0

38

Poulan 530037057

Pickup-Oil
(Superseded to 545047801)

$6.49

$

In Stock, Qty 9

0

39

Poulan 530037821

Filter-Oil
(Superseded to 530056533)

$6.49

$

In Stock, only 2 left!

0

40

Poulan 530030189

Plug-Oil Filter
(Superseded to 530056533)

$6.49

$

In Stock, only 2 left!

0

41

Poulan 530016037

Screw

$

$

Not available

42

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

43

Poulan 530029850

Chain Catcher

$6.49

$

In Stock, only 3 left!

0

44

Poulan 530015877

Bar Bolt

$7.49

$

Usually ships in 3-10 days

0

45

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

46

Poulan 530014381

Kit-Spike Assy

Note: (incl#45)

$9.99

$

In Stock, Qty 9

0

47

Poulan 530010846

Assy-Oil Cap
(Superseded to 530057236)

$

$

Not available

48

Poulan 530055406

Shield-Heat

$4.99

$

Usually ships in 3-10 days

0

49

Poulan 530055322

Clip-"U"

$2.49

$

Usually ships in 3-10 days

0

50

Poulan 530015920

Screw

$6.49

$

In Stock, Qty 7

0

51

Poulan 530069313

Kit-Starter Pulley

$

$

Not available

52

Poulan 530015891

Spring-Recoil
(Superseded to 545008005)

$

$

Not available

53

Poulan 530047743

Housing-Fan

Note: (incl#15)

$

$

Not available

54

Poulan 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

55

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

56

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

57

Poulan 530038327

Handle-Front
(Superseded to 530053955)

$15.99

$

Usually ships in 3-10 days

0

58

Poulan 530036113

Front Strap-AV

$6.49

$

In Stock, only 1 left!

0

59

Poulan 530015775

Screw-Plate

$6.49

$

In Stock, only 2 left!

0

60

Poulan 530036101

Plate-Isolator

$

$

Not available

61

Poulan 530036142

Spring Sleeve-AV

$

$

Not available

62

Poulan 530038985

Spring-Isolator

$4.99

$

Usually ships in 3-10 days

0

63

Poulan 530015984

Screw

$2.49

$

Usually ships in 3-10 days

0

64

Poulan 952051301

Chain" 16"

$

$

Not available

64

Poulan 952051310

Chain" 20"

$

$

Not available

65

Poulan 952044577

Bar 16" Standard

$

$

Not available

65

Poulan 952044815

Bar 20" Quick Adjust

$

$

Not available

65

Poulan 530044868

Bar 20" Pro Lam Quick Adj.

$

$

Not available

66

Poulan 530047855

Bar Plate

$

$

Not available

67

Poulan 530054819

Assy-ChainBrake

Note: (w/Standard Bar)

$

$

Not available

67

Poulan 530054804

Assy-ChainBrake
(Superseded to 530054819)

Note: (w/Quick Adjust Bar)

$

$

Not available

68

Poulan 530015917

Nut-Bar Mounting

$3.99

$

In Stock, Qty 10

0

69

Poulan 530038593

Retainer

$4.99

$

In Stock, Qty 20+

0

70

Poulan 530015826

Pin-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

71

Poulan 530069611

Kit-Bar Adjust

Note: (incl. 69,70)

$9.49

$

In Stock, Qty 13

0
