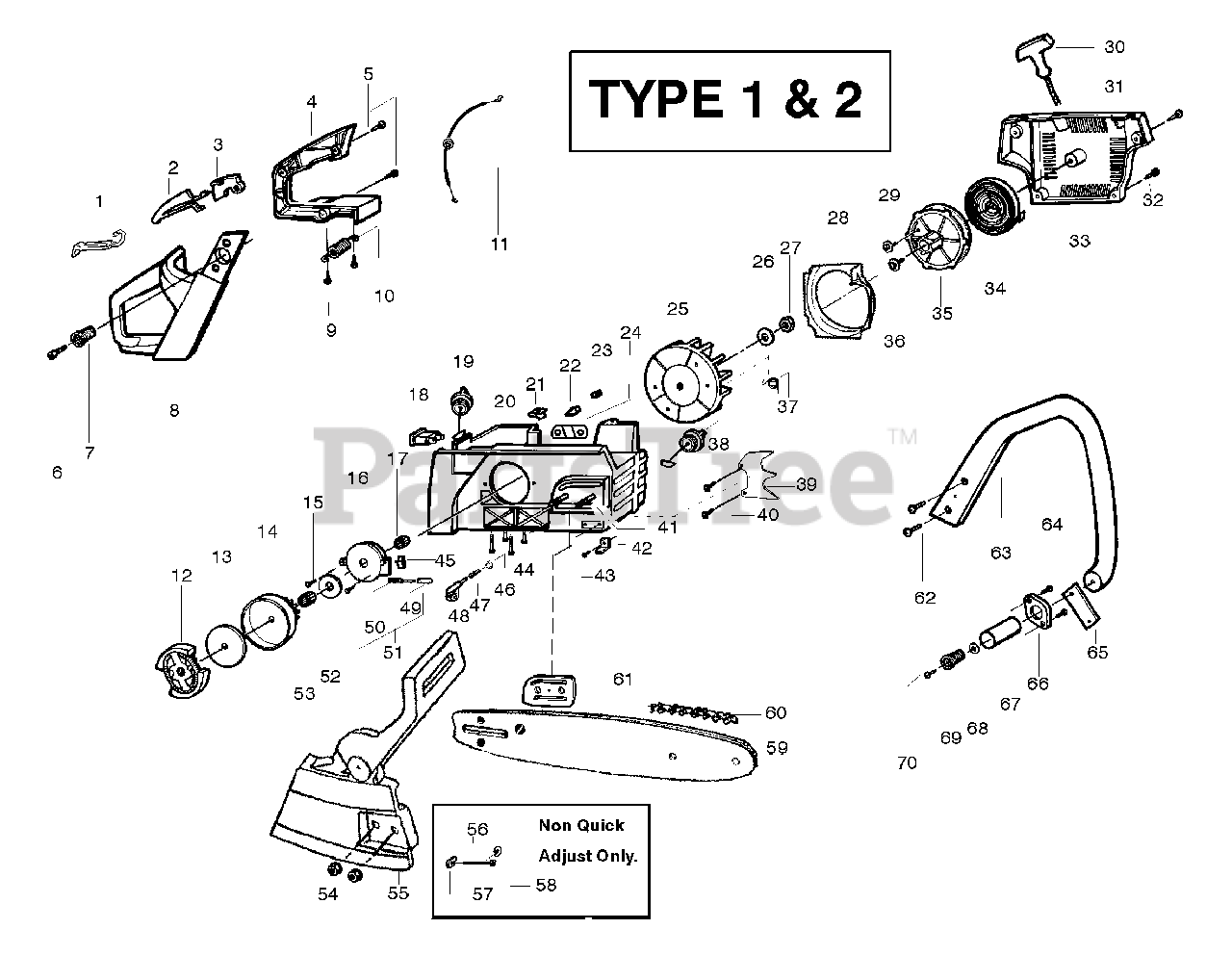

PP 295 - Poulan Pro Chainsaw, Type 2 Handle, Chassis & Bar Assembly Type 1 & 2 Parts Diagram

Chainsaw, Type 2

Handle, Chassis & Bar Assembly Type 1 & 2 Parts Diagram

  • Title

1

Poulan 530053443

Choke Lever

$

$

Not available

2

Poulan 530036098

Throttle Lockout

$

$

Not available

3

Poulan 530036097

Throttle Trigger

$5.99

$

In Stock, only 3 left!

0

4

Poulan 530036491

Handle Cover
(Superseded to 530071272)

$

$

Not available

5

Poulan 530015957

Screw

$4.99

$

In Stock, Qty 6

0

6

Poulan 530015937

Screw

$6.49

$

Usually ships in 3-10 days

0

7

Poulan 530038985

Spring - Isolator

$4.99

$

Usually ships in 3-10 days

0

8

Poulan 530036130

Rear Pro Handle
(Superseded to 530071272)

$

$

Not available

9

Poulan 530015906

Screw

$6.49

$

In Stock, only 2 left!

0

10

Poulan 530038986

Isolator Spring

$

$

Not available

11

Poulan 530038471

Throttle Cable

$

$

Not available

12

Poulan 530014949

Clutch Ass'y.

$22.99

$

In Stock, only 1 left!

0

13

Poulan 530015611

Clutch Washer

$6.49

$

In Stock, Qty 11

0

14

Poulan 530069342

Kit - Clutch Drum & Bearing

Note: (incl. 53)

$40.99

$

In Stock, Qty 7

0

15

Poulan 530015896

Screw

$6.49

$

In Stock, Qty 13

0

16

Poulan 530029835

Oil Pump Hsg.
(Superseded to 545036801)

$20.99

$

In Stock, Qty 9

0

17

Poulan 530029833

Oil Pump Worm

$8.99

$

In Stock, Qty 12

0

18

Poulan 530069572

Switch Kit

$9.49

$

In Stock, only 3 left!

0

19

Poulan 530010845

Fuel Cap Ass'y.

$

$

Not available

20

Poulan 530037551

Chassis Ass'y.

$

$

Not available

21

Poulan 530015922

Speed Nut

$6.49

$

In Stock, Qty 5

0

22

Poulan 530026119

Check Valve

$5.99

$

In Stock, Qty 10

0

23

Poulan 530029868

Vent Plug

$6.49

$

In Stock, only 4 left!

0

24

Poulan 530036043

Bar Stud Plate

$5.99

$

In Stock, only 3 left!

0

25

Poulan 530039147

Flywheel Ass'y.
(Superseded to 575635502)

$28.99

$

In Stock, only 1 left!

0

26

Poulan 530015127

Washer

$6.49

$

Usually ships in 3-10 days

0

27

Poulan 530016071

Nut

$

$

Not available

28

Poulan 530047667

Baffle Plate

$3.99

$

In Stock, only 4 left!

0

29

Poulan 530016080

Screw

$6.49

$

In Stock, only 2 left!

0

30

Poulan 530049797

Starter Handle
(Superseded to 530056422)

$

$

Not available

31

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

32

Poulan 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

33

Poulan 530047743

Fan Hsg. Ass'y. Kit

Note: (Incl. 28)

$

$

Not available

34

Poulan 530015891

Recoil Spring
(Superseded to 545008005)

$

$

Not available

35

Poulan 530069313

Kit - Starter Pulley

$

$

Not available

36

Poulan 530015920

Screw

$6.49

$

In Stock, Qty 7

0

37

Poulan 530023817

Spring - Starter Dog

$6.49

$

In Stock, Qty 5

0

38

Poulan 530010846

Oil Cap Ass'y.
(Superseded to 530057236)

$

$

Not available

39

Poulan 530014381

Assy. - Spike

Note: (incl.8)

$9.99

$

In Stock, Qty 11

0

40

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, only 4 left!

0

41

Poulan 530015877

Bar Bolt

$7.49

$

Usually ships in 3-10 days

0

42

Poulan 530029850

Chain Catcher

$6.49

$

In Stock, only 4 left!

0

43

Poulan 530015906

Screw

$6.49

$

In Stock, only 2 left!

0

44

Poulan 530016037

Screw

$

$

Not available

45

Poulan 530019174

Oil Seal
(Superseded to 545037101)

$10.99

$

In Stock, Qty 12

0

46

Poulan 530030189

Plug-Oiler Filter
(Superseded to 530056533)

$6.49

$

In Stock, only 2 left!

0

47

Poulan 530037821

Oil Filter
(Superseded to 530056533)

$6.49

$

In Stock, only 2 left!

0

48

Poulan 530037057

Oil Pick-up
(Superseded to 545047801)

$6.49

$

In Stock, Qty 9

0

49

Poulan 530029834

Oil Pump Barrel
(Superseded to 545036801)

$20.99

$

In Stock, Qty 9

0

50

Poulan 530029838

Plunger & Gear Ass'y.
(Superseded to 545036801)

$20.99

$

In Stock, Qty 9

0

51

Poulan 530014410

Oil Pump Ass'y.
(Superseded to 545036801)

Note: (Incl. 16, 49, &50)

$20.99

$

In Stock, Qty 9

0

52

Poulan 530015907

Thrust Washer

$

$

Not available

53

Poulan 530032119

Clutch Bearing

$10.99

$

In Stock, Qty 6

0

54

Poulan 530015917

Bar Mounting Nut

$3.99

$

In Stock, Qty 16

0

55

Poulan 530054804

Assy-Chainbrake
(Superseded to 530054819)

$

$

Not available

56

Poulan 530038593

Retainer-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

57

Poulan 530015826

Bar Adjusting Pin

$4.99

$

In Stock, Qty 20+

0

58

Poulan 530069611

Kit - Bar Adjust

Note: (incl.56,57)

$9.49

$

In Stock, Qty 13

0

59

Poulan 952044577

Bar 16"Standard

Note: (Refer to Service Referce)

$

$

Not available

59

Poulan 952044375

Bar 18"Standard

$

$

Not available

59

Poulan 952044377

Bar 20"Standard

$

$

Not available

59

Poulan 952044815

Bar 20"Quick Adjust

$

$

Not available

60

Poulan 952051301

Chain 16"(66/.325-.050")

Note: (Refer to Service Referce)

$

$

Not available

60

Poulan 952051313

Chain 18"(72/.325-.050")

$23.99

$

Usually ships in 3-10 days

0

60

Poulan 952051310

Chain 20"(78/.325-050")

$

$

Not available

61

Poulan 530047855

Bar Plate

$

$

Not available

62

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 17

0

63

Poulan 530038327

Handle
(Superseded to 530053955)

$15.99

$

Usually ships in 3-10 days

0

64

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

65

Poulan 530036113

Front Strap

$6.49

$

In Stock, only 1 left!

0

66

Poulan 530036101

Isolator Plate

$

$

Not available

67

Poulan 530036142

Spring Sleeve

$

$

Not available

68

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

69

Poulan 530038985

Isolator spring

$4.99

$

Usually ships in 3-10 days

0

70

Poulan 530015984

Screw

$2.49

$

Usually ships in 3-10 days

0
