PP 291EPS27 (961980029-01) - Poulan Pro Snow Thrower (2010-04) Drive Parts Diagram

Snow Thrower

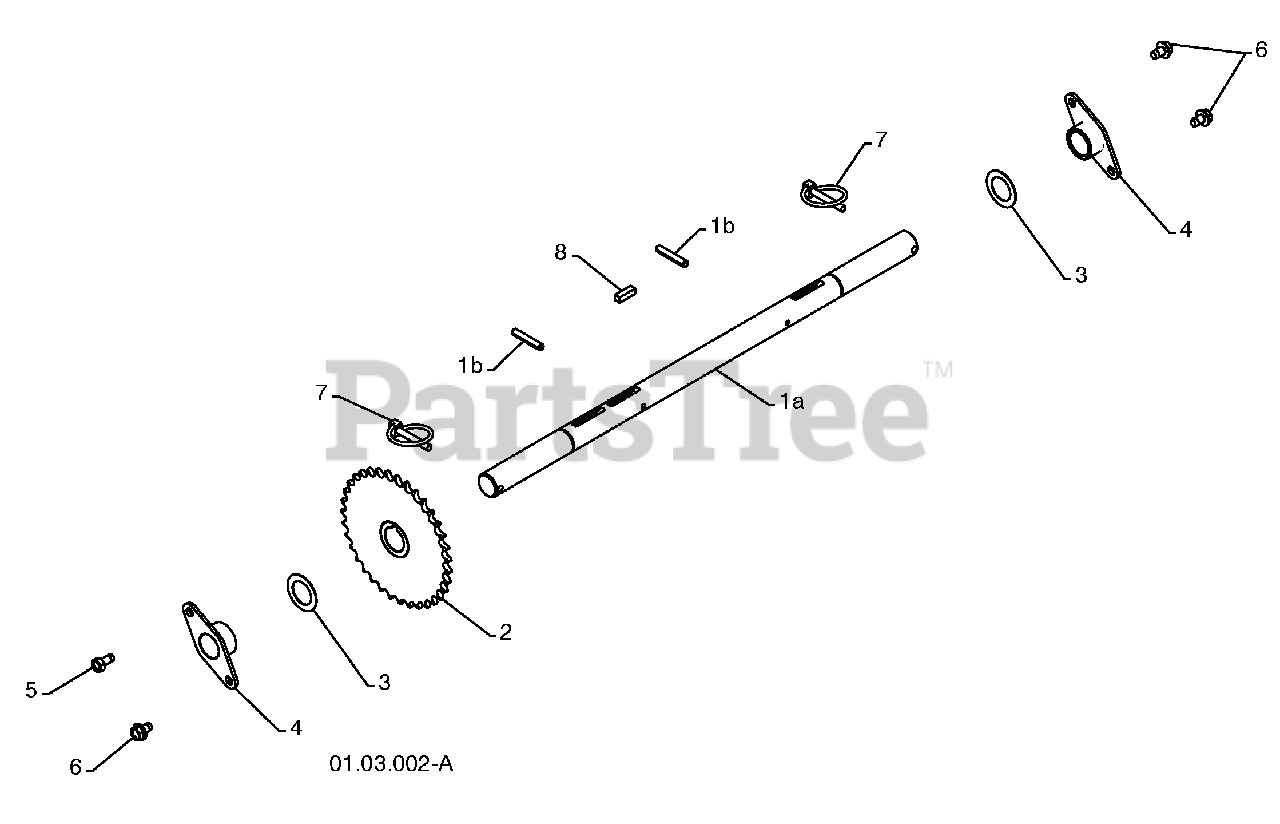

Drive Parts Diagram

  • Title

1

Electrolux/AYP 404923

AXLE ASSEMBLY (assy of 1a,1b)
(Superseded to 532404923)

$66.99

$

Usually ships in 3-10 days

0

1a

Electrolux/AYP 404307

AXLE SHAFT
(Superseded to 532404307)

$72.99

$

Usually ships in 3-10 days

0

1b

Electrolux/AYP 9465M1

ROLL PIN 3/16 X 1.50
(Superseded to 532184206)

$4.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 402691

SPROCKET
(Superseded to 532402691)

$60.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 174697

THRUST WASHER

$2.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 179830

BEARING
(Superseded to 532179830)

$24.99

$

In Stock, only 2 left!

0

5

Electrolux/AYP 146315

SCREW 5/16-18 X .625
(Superseded to 532146315)

$10.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 17490508

SCREW 5/16-18 X .500
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 155443

KLIK PIN 1/4 X 1.50
(Superseded to 532155443)

$8.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 189282

SQUARE KEY
(Superseded to 532189282)

$7.49

$

In Stock, only 1 left!

0
