PP 291E30 (961980030-01) - Poulan Pro Snow Thrower (2010-03) Chassis / Engine / Pulleys Parts Diagram

Snow Thrower

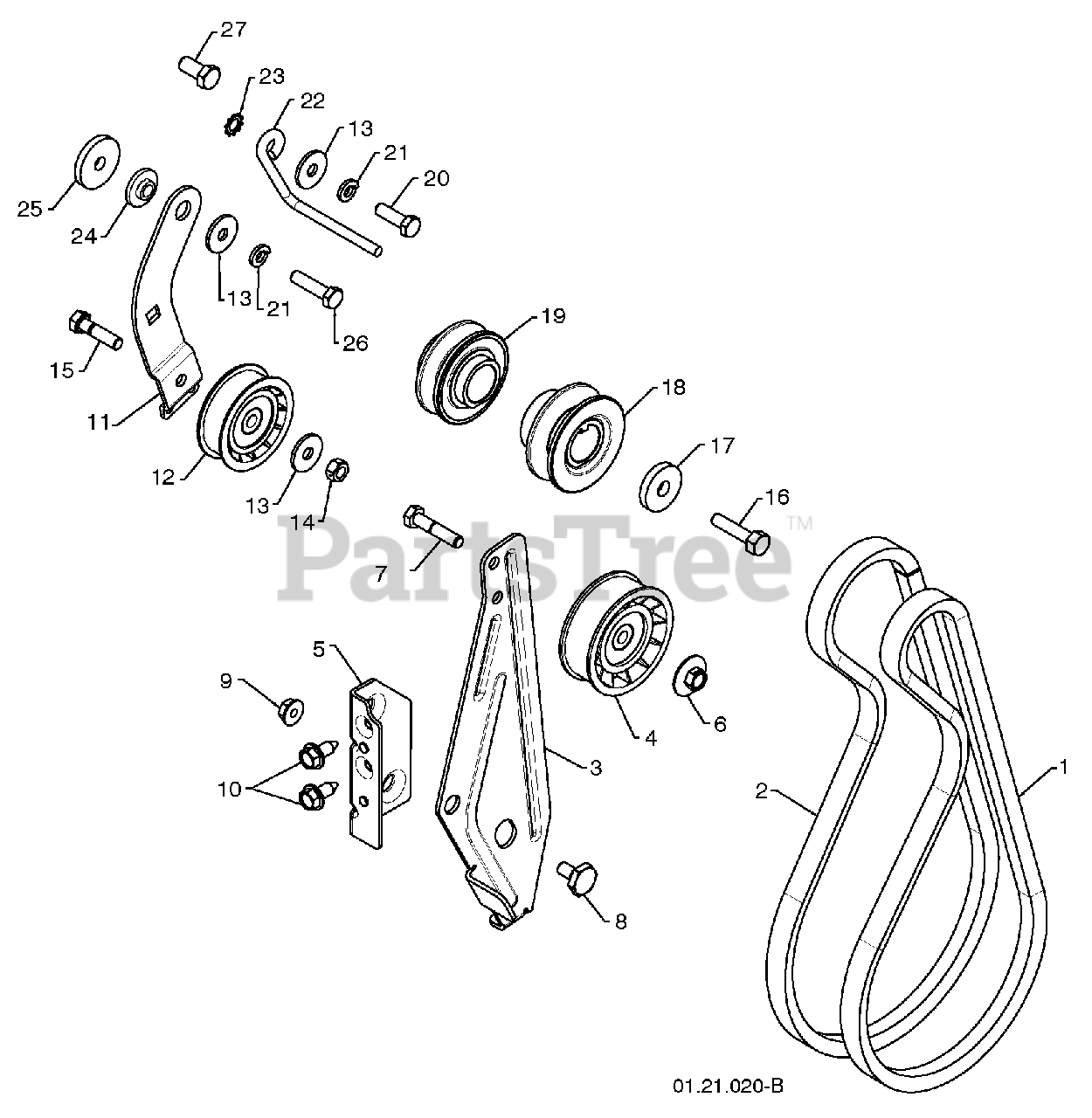

Chassis / Engine / Pulleys Parts Diagram

  • Title

1

Electrolux/AYP 419888

IMPELLER BELT
(Superseded to 532419888)

$60.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 427304

TRACTION BELT
(Superseded to 532427304)

$34.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 423723X431

IDLER ARM BRACKET
(Superseded to 532423723)

$

$

Not available

4

Electrolux/AYP 180523

IDLER PULLEY
(Superseded to 532180523)

$24.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 423990X431

IDLER BRACKET

$2.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 426589

NUT 5/16-18
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

7

Electrolux/AYP 74780524

SCREW 5/16-18 X 1.50
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

8

Electrolux/AYP 424297

SHOULDER BOLT 5/16-18 X .50

$

$

Not available

9

Electrolux/AYP 751153

NUT 5/16-18 LOCK
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

10

Electrolux/AYP 428867

SCREW 5/16-18 X .625
(Superseded to 532428867)

$6.49

$

In Stock, only 2 left!

0

11

Electrolux/AYP 427576

TRACTION IDLER BRACKET

$

$

Not available

12

Electrolux/AYP 180522

TRACTION PULLEY
(Superseded to 532180522)

$31.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 59289

WASHER
(Superseded to 532059289)

$4.99

$

In Stock, only 2 left!

0

14

Electrolux/AYP 73800500

NUT 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 74780520

SCREW 5/16-18 X 1.25
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 851084

SCREW 3/8-24 X 1 .375
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 19132005

WASHER

$

$

Not available

18

Electrolux/AYP 425934

PULLEY ENG IMPELLER

$

$

Not available

19

Electrolux/AYP 425933

PULLEY ENG TRACTION

$

$

Not available

20

Electrolux/AYP 74610516

SCREW 5/16-24 X 1.00
(Superseded to 874610516)

$4.99

$

In Stock, only 3 left!

0

21

Electrolux/AYP 10040500

LOCKWASHER 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 155452

BELT GUIDE
(Superseded to 532155452)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 11050500

LOCKWASHER 5/16
(Superseded to 811050500)

$

$

Not available

24

Electrolux/AYP 175331

IDLER BUSHING
(Superseded to 532175331)

$4.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19112206

WASHER
(Superseded to 819112206)

$5.99

$

In Stock, Qty 5

0

26

Electrolux/AYP 74610520

SCREW 5/16-24 X 1.25
(Superseded to 874610520)

$9.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 74760608

SCREW 3/8-16 X .750
(Superseded to 874760608)

$4.99

$

In Stock, only 1 left!

0
