PP 291E27 (961980036-00) - Poulan Pro Snow Thrower (2010-05) Bag of Parts Parts Diagram

Snow Thrower

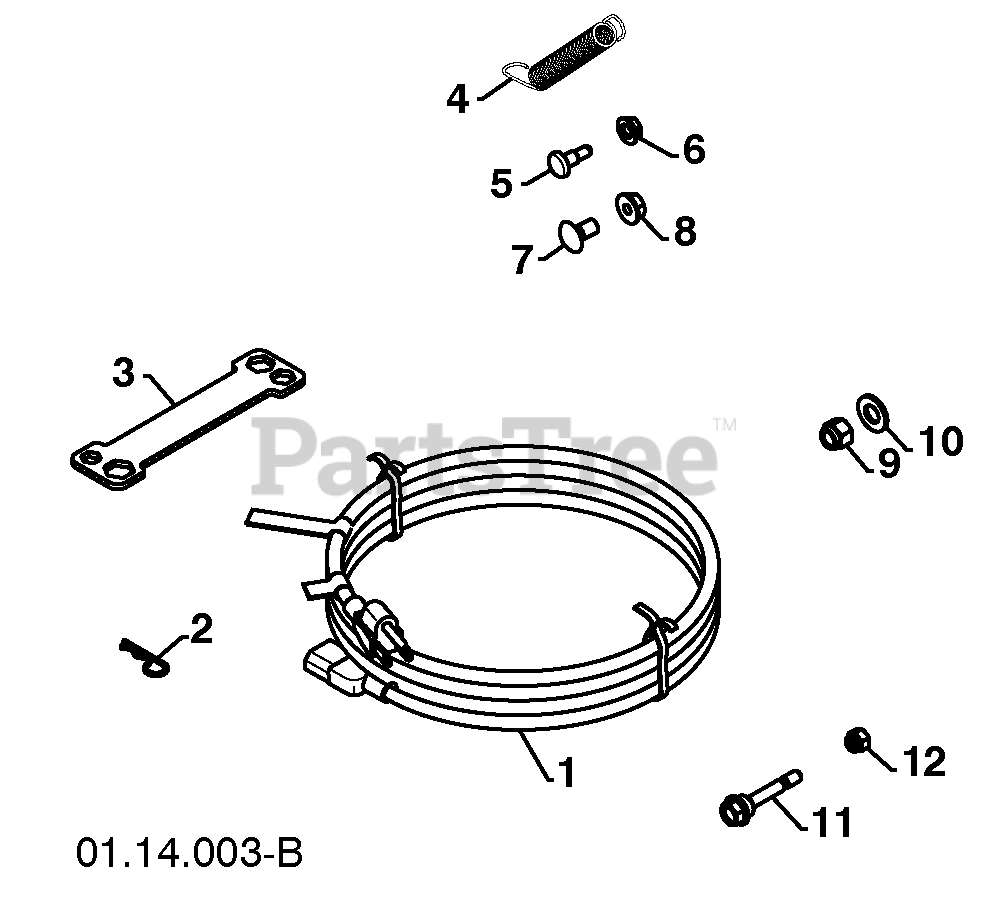

Bag of Parts Parts Diagram

  • Title
1

Electrolux/AYP 198563

POWER CORD
(Superseded to 532198563)

$24.99

$

In Stock, only 3 left!

0

2

Electrolux/AYP 169675

RETAINER PIN
(Superseded to 532169675)

$7.49

$

In Stock, only 2 left!

0

3

Electrolux/AYP 180684X008

WRENCH
(Superseded to 532429112)

$4.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 184505

REMOTE SPRING
(Superseded to 532184505)

$7.99

$

In Stock, Qty 11

0

5

Electrolux/AYP 179829

SHOULDER BOLT 1/4-20
(Superseded to 532179829)

$6.49

$

In Stock, Qty 11

0

6

Electrolux/AYP 191730

LOCKNUT 1/4-20
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

7

Electrolux/AYP 72250505

CARRIAGE BOLT 5/16-18 X 5/8
(Superseded to 872250505)

$8.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 751153

LOCKNUT 5/16-18
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

9

Electrolux/AYP 73800600

LOCKNUT 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 19131316

WASHER 3/8
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 192090

SHEAR BOLT 1/4-20 X 1-13/16
(Superseded to 588077502)

$5.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 73800400

LOCKNUT 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0
