PP 28 RJ (967228601) - Poulan Pro String Trimmer (2014-09) SHAFT HANDLE Parts Diagram

String Trimmer

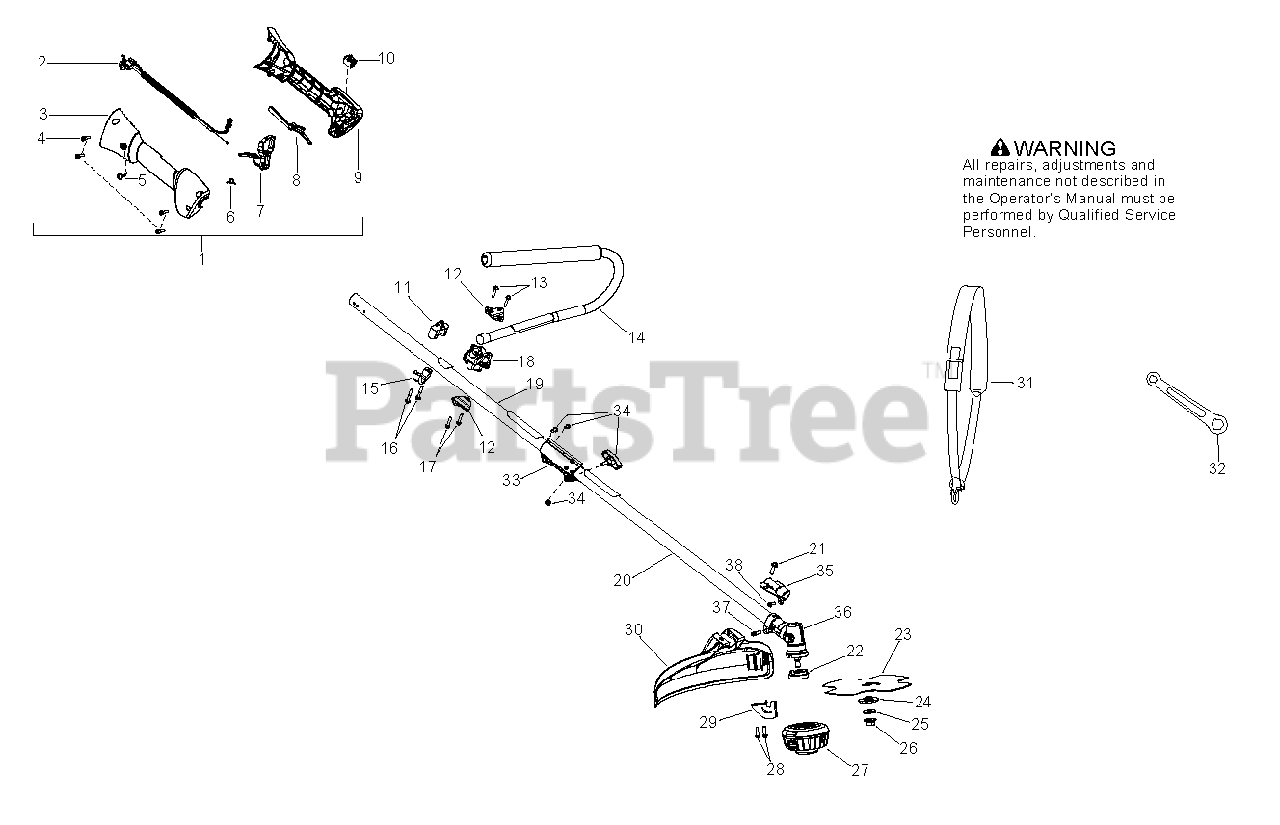

SHAFT HANDLE Parts Diagram

  • Title

1

Poulan 584440304

(Superseded to 584440305)

$40.99

$

In Stock, only 1 left!

0

2

Poulan 585205602

ASSY CABLE/WIRE HARNESS
(Superseded to 592921201)

$18.99

$

Usually ships in 3-10 days

0

3

Poulan 545187601

HANDLE HALF RIGHT

$

$

Not available

4

Poulan 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, only 2 left!

0

5

Poulan 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, only 2 left!

0

6

Poulan 545190001

SPRING

$3.49

$

In Stock, Qty 5

0

7

Poulan 585217001

Trigger

$4.99

$

In Stock, only 1 left!

0

8

Poulan 545187801

LOCKOUT TRIGGER

$3.99

$

In Stock, only 1 left!

0

9

Poulan 545187501

HANDLE HALF LEFT

$13.99

$

Usually ships in 3-10 days

0

10

Poulan 575315801

STOP SWITCH

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 545113301

Upper Harness Clamp

$6.49

$

Usually ships in 3-10 days

0

12

Poulan 530058563

CLAMP BRACKET

$4.99

$

In Stock, only 1 left!

0

13

Poulan 530015886

SCREW-10-14 X 13/16 (PL

$6.49

$

In Stock, only 3 left!

0

14

Poulan 530071974

KIT

$27.99

$

Usually ships in 3-10 days

0

15

Poulan 545056601

Lower Harness Clamp

$4.99

$

In Stock, only 3 left!

0

16

Poulan 530015940

SCREW

$6.49

$

In Stock, Qty 8

0

17

Poulan 530015886

SCREW-10-14 X 13/16 (PL

$6.49

$

In Stock, only 3 left!

0

18

Poulan 545024501

CLAMP 1" HANDLEBAR

$6.99

$

In Stock, only 4 left!

0

19

Poulan 585345905

Drive Shaft Kit, Upper

$40.99

$

Usually ships in 3-10 days

0

20

Poulan 585345925

$

$

Currently unavailable

21

Poulan 530015771

SCREW 1/4-20 X 7/8 (TAP

$6.49

$

In Stock, Qty 6

0

22

Poulan 530095815

DUST CUP , BLADE

$11.99

$

In Stock, Qty 6

0

23

Poulan 530055892

ASSY BLADE
(Superseded to 577614209)

$34.99

$

In Stock, only 1 left!

0

24

Poulan 530095816

WASHER,BLADE RETAINING

$10.99

$

In Stock, Qty 5

0

25

Poulan 530016240

WASHER BELLVILLE

$6.49

$

In Stock, only 1 left!

0

26

Poulan 530015793

NUT-FLANGE (LH)

$6.49

$

In Stock, Qty 6

0

27

Poulan 537419222

Trimmer Head Assembly, Tng P25 Pp28 Counterclock
(Superseded to 596585805)

$31.99

$

In Stock, only 1 left!

0

28

Poulan 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

29

Poulan 530052286

LINE CUTTER

$

$

Not available

30

Poulan 585345924

KIT COMBO SHIELD

$15.99

$

Usually ships in 3-10 days

0

31

Poulan 530094408

ASSY,SHOULDER STRAP
(Superseded to 530094417)

$

$

Not available

32

Poulan 530056401

WRENCH

$13.99

$

Usually ships in 3-10 days

0

33

Poulan 545213801

ASSY COUPLER BLACK
(Superseded to 587119302)

$8.99

$

In Stock, only 1 left!

0

34

Poulan 575291801

ASSY COUPLER BLACK
(Superseded to 587119302)

$8.99

$

In Stock, only 1 left!

0

35

Poulan 575963401

BRACKET

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 574809701

GEARBOX

$

$

Not available

37

Poulan 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

38

Poulan 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0
