PP 28 PDT (967288702) - Poulan Pro Pole Saw (2014-09) ENGINE Parts Diagram

Pole Saw

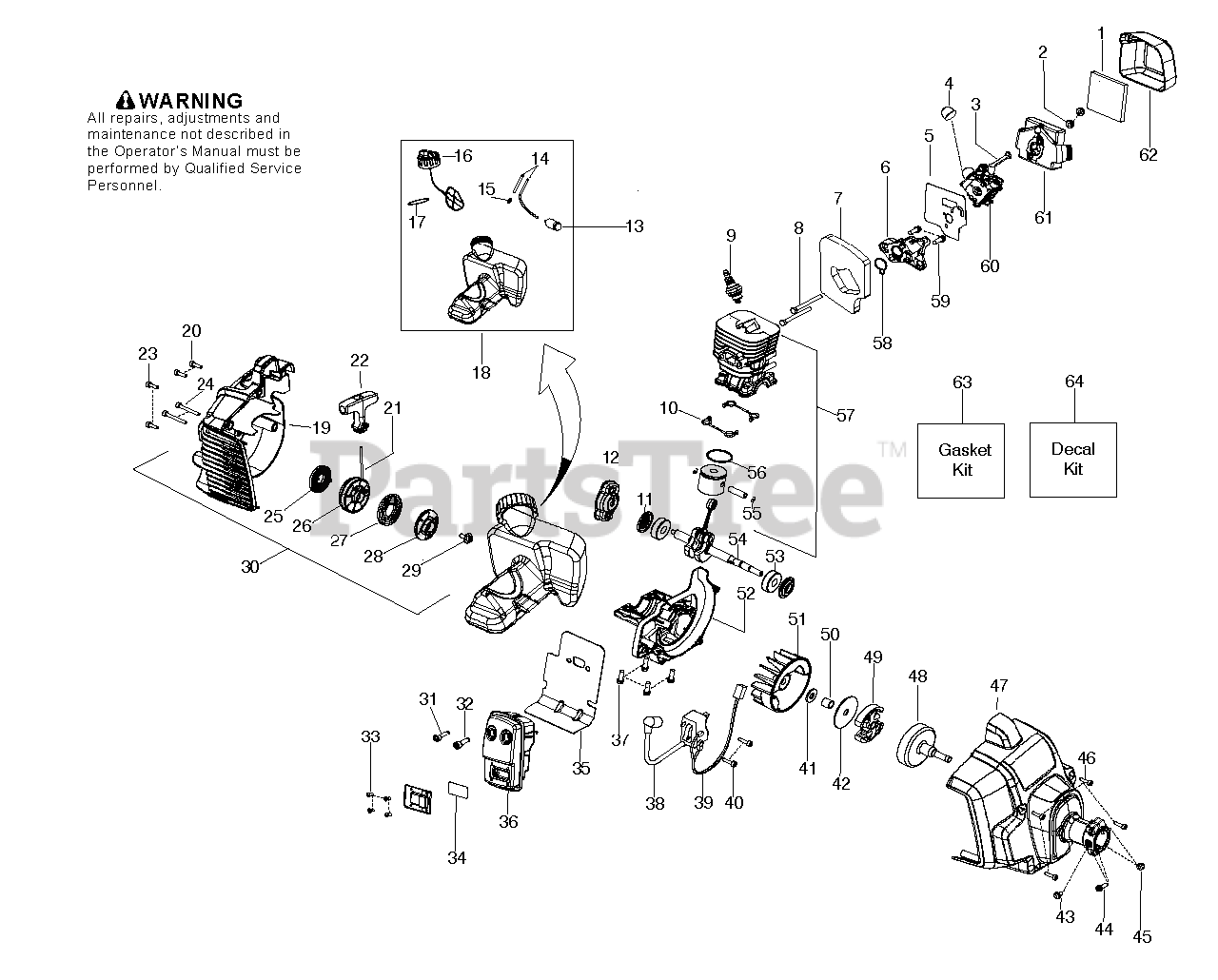

ENGINE Parts Diagram

  • Title

1

Poulan 581976201

Air Filter, Foam

$5.99

$

In Stock, only 4 left!

0

2

Poulan 530016101

NUT

$6.49

$

In Stock, only 2 left!

0

3

Poulan 585165801

Choke Lever

$6.49

$

In Stock, only 3 left!

0

4

Poulan 530058709

PURGE BULB ZAMA

$7.99

$

In Stock, Qty 10

0

5

Poulan 585345906

Carburetor Gasket Kit, 28cc

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 530035596

CARB ADAPTOR

$12.99

$

In Stock, only 1 left!

0

7

Poulan 585345911

Gasket Kit, 28cc

$

$

Not available

8

Poulan 530016400

BOLT CARB ADAPTOR

$6.49

$

In Stock, only 1 left!

0

9

Poulan 952030201

PLUG-SPARK (RCJ-8Y)
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

10

Poulan 545083301

SEAL CYLINDER

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 585345911

Gasket Kit, 28cc

$

$

Not available

12

Poulan 525845601

Starter Pawl Bridge
(Superseded to 503873305)

$26.99

$

Usually ships in 3-10 days

0

13

Poulan 530095646

FUEL PICK-UP ASSY

$6.99

$

In Stock, Qty 20+

0

14

Poulan 530069599

KIT-LINE(FUEL)

$7.49

$

In Stock, Qty 8

0

15

Poulan 581411001

Fuel Line Fitting, Double Barb

$

$

Not available

16

Poulan 578931002

Fuel Cap Assembly

$8.99

$

Usually ships in 3-10 days

0

17

Poulan 585345911

Gasket Kit, 28cc

$

$

Not available

18

Poulan 585345901

KIT FUEL TANK PP 28CC

$

$

Not available

19

Poulan 585867401

Starter Housing

$20.99

$

In Stock, only 1 left!

0

20

Poulan 545003511

SCREW

$4.99

$

In Stock, only 1 left!

0

21

Poulan 545008079

KIT ROPE

$10.99

$

Usually ships in 3-10 days

0

22

Poulan 545208401

STARTER HANDLE

$7.99

$

Usually ships in 3-10 days

0

23

Poulan 545003511

SCREW

$4.99

$

In Stock, only 1 left!

0

24

Poulan 530016426

SCREW M5-0.8X30MM

$6.49

$

In Stock, only 2 left!

0

25

Poulan 545008087

KIT STARTER SPRING

$9.49

$

In Stock, only 1 left!

0

26

Poulan 579066801

(Superseded to 585530301)

$11.99

$

Usually ships in 3-10 days

0

27

Poulan 578465101

DRIVER SPRING

$5.99

$

In Stock, only 2 left!

0

28

Poulan 579366201

PULLEY STARTER DRIVE

$6.99

$

In Stock, only 2 left!

0

29

Poulan 530016468

SCREW

$6.49

$

In Stock, Qty 7

0

30

Poulan 585345909

Starter Housing Kit

$53.99

$

In Stock, only 1 left!

0

31

Poulan 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 8

0

32

Poulan 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 8

0

33

Poulan 530015241

SCREW-6-19X5/16PLAST PA

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 545030501

Spark Arrestor Screen Kit

$8.99

$

In Stock, only 1 left!

0

35

Poulan 585345911

Gasket Kit, 28cc

$

$

Not available

36

Poulan 585345903

KIT MUFFLER W/CATALYST

$

$

Not available

37

Poulan 530015897

SCREW-M5-0.8 X 25MM(TAP)

$6.49

$

In Stock, Qty 19

0

38

Poulan 545046701

IGNITION MODULE MBU-7

$56.99

$

Usually ships in 3-10 days

0

39

Poulan 585696001

ASSY MOD LEADWIRE

$

$

Not available

40

Poulan 530016456

SCREW M4 X .70 TT 16MM

$6.49

$

In Stock, only 2 left!

0

41

Poulan 530016463

WASHER CLUTCH

$6.99

$

In Stock, only 3 left!

0

42

Poulan 530094189

WASHER-CLUTCH

$6.99

$

In Stock, only 1 left!

0

43

Poulan 530015805

SCREW-10-14 X 1/2 PLASTITE
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

44

Poulan 530015774

SCREW-10-24 X 1" (UNC)

$6.49

$

Usually ships in 3-10 days

0

45

Poulan 530015768

LOCKNUT-HEX 10-24

$6.49

$

In Stock, only 1 left!

0

46

Poulan 530016456

SCREW M4 X .70 TT 16MM

$6.49

$

In Stock, only 2 left!

0

47

Poulan 583974801

Fan Housing Assembly

$24.99

$

Usually ships in 3-10 days

0

48

Poulan 578426601

Clutch Drum Assembly

$14.99

$

Usually ships in 3-10 days

0

49

Poulan 585578701

Clutch Assembly

$6.49

$

In Stock, only 1 left!

0

50

Poulan 530057852

SPACER FLYWHEEL

$10.99

$

In Stock, only 2 left!

0

51

Poulan 530039242

FLYWHEEL

$44.99

$

In Stock, only 1 left!

0

52

Poulan 545195602

(Superseded to 577929502)

$39.99

$

Usually ships in 3-10 days

0

53

Poulan 545013401

Radial Ball Bearing, 6201

$10.99

$

Usually ships in 3-10 days

0

54

Poulan 545195202

ASSY CRANKSHAFT
(Superseded to 585415401)

$51.99

$

Usually ships in 3-10 days

0

55

Poulan 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 2 left!

0

56

Poulan 575227401

RING PISTON 28CC AIP

$

$

Not available

57

Poulan 585345910

Piston and Cylinder Kit
(Superseded to 545008082)

$45.99

$

In Stock, only 1 left!

0

58

Poulan 585345911

Gasket Kit, 28cc

$

$

Not available

59

Poulan 530015897

SCREW-M5-0.8 X 25MM(TAP)

$6.49

$

In Stock, Qty 19

0

60

Poulan 585345913

Carburetor Assembly

$53.99

$

In Stock, only 1 left!

0

61

Poulan 581866401

Air Filter Housing, Black

$3.99

$

In Stock, only 1 left!

0

62

Poulan 585165701

Filter Housing Cover

$4.99

$

In Stock, only 2 left!

0

63

Poulan 585345911

Gasket Kit, 28cc

$

$

Not available

64

Poulan 585345932

$

$

Currently unavailable
