PP 28 CD (967228301) - Poulan Pro String Trimmer (2014-09) SHAFT HANDLE Parts Diagram

String Trimmer

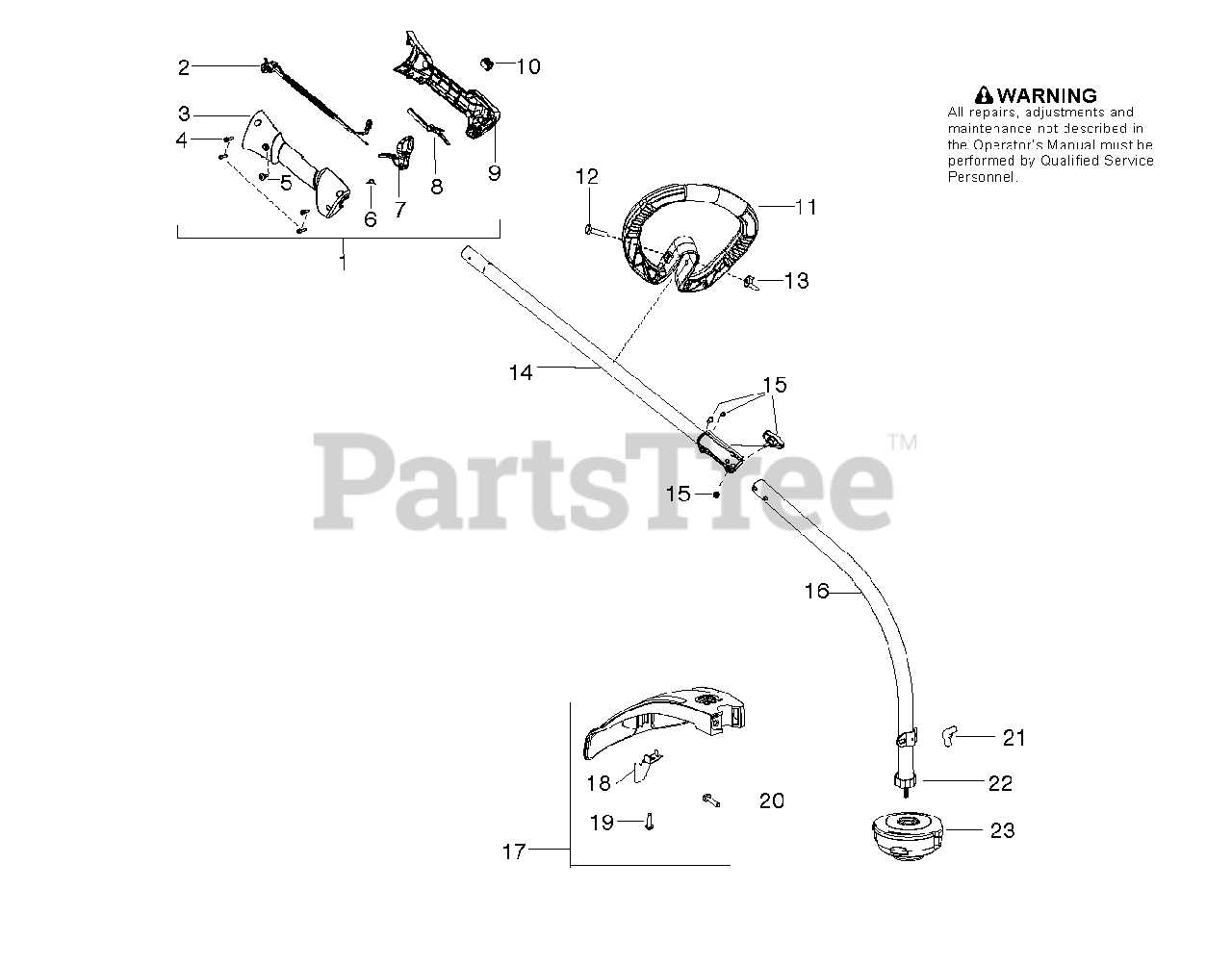

SHAFT HANDLE Parts Diagram

  • Title

1

Poulan 584440304

(Superseded to 584440305)

$40.99

$

In Stock, only 1 left!

0

2

Poulan 585205602

ASSY CABLE/WIRE HARNESS
(Superseded to 592921201)

$18.99

$

Usually ships in 3-10 days

0

3

Poulan 545187601

HANDLE HALF RIGHT

$

$

Not available

4

Poulan 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, only 2 left!

0

5

Poulan 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, only 2 left!

0

6

Poulan 545190001

SPRING

$3.49

$

In Stock, only 4 left!

0

7

Poulan 585217001

Trigger

$4.99

$

In Stock, only 1 left!

0

8

Poulan 545187801

LOCKOUT TRIGGER

$3.99

$

In Stock, only 1 left!

0

9

Poulan 545187501

HANDLE HALF LEFT

$13.99

$

Usually ships in 3-10 days

0

10

Poulan 575315801

STOP SWITCH

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 530058583

HANDLE ASSIST 1"

$6.99

$

Usually ships in 3-10 days

0

12

Poulan 530015820

BOLT, TYPE 2

$4.99

$

In Stock, only 1 left!

0

13

Poulan 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

14

Poulan 585345905

Drive Shaft Kit, Upper

$40.99

$

Usually ships in 3-10 days

0

15

Poulan 575291801

ASSY COUPLER BLACK
(Superseded to 587119302)

$8.99

$

In Stock, only 1 left!

0

16

Poulan 585345907

KIT DRIVE SHAFT LOWER CD

$66.99

$

Usually ships in 3-10 days

0

17

Poulan 585345904

Shield Kit

$12.99

$

In Stock, only 1 left!

0

18

Poulan 581554001

LINE LIMITER

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

20

Poulan 530015820

BOLT, TYPE 2

$4.99

$

In Stock, only 1 left!

0

21

Poulan 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

22

Poulan 545017404

DUST CUP
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

23

Poulan 537419221

Trimmer Head Assembly, Tng P25 Pp28 Clockwise
(Superseded to 596585804)

$26.99

$

In Stock, only 2 left!

0
