PP 260 - Poulan Pro Chainsaw, Type 6 Engine Type 6 Parts Diagram

Chainsaw, Type 6

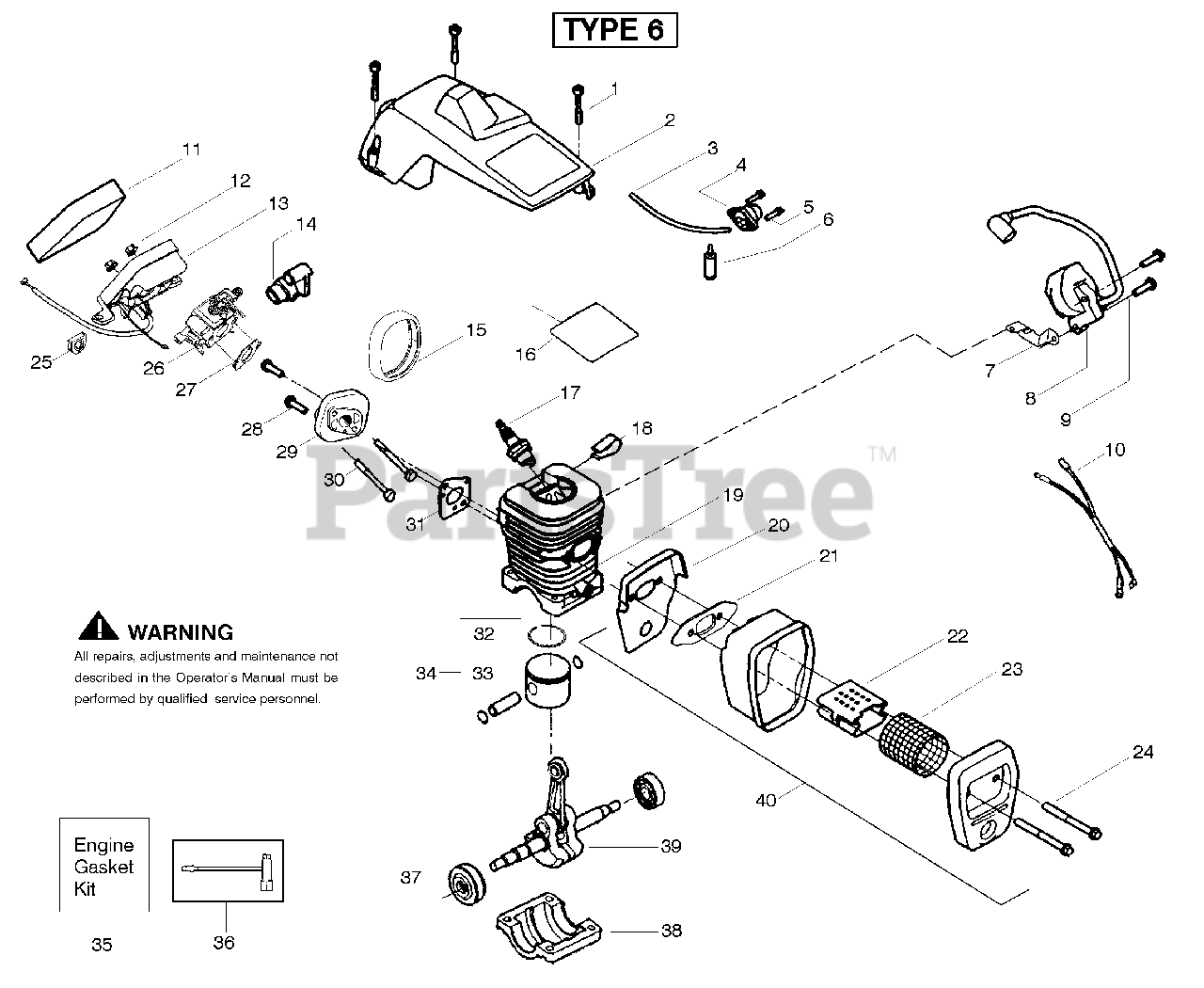

Engine Type 6 Parts Diagram

  • Title

1

Poulan 530016153

Screw

$6.49

$

In Stock, only 2 left!

0

2

Poulan 530055638

Assy-Cylinder Shield

Note: (Includes # 16)

$

$

Not available

3

Poulan 530069247

Kit-Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

4

Poulan 530071835

Kit-Purge Bulb

Note: (Incl. 5)

$11.99

$

In Stock, Qty 9

0

5

Poulan 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

6

Poulan 530095646

Assy-Fuel Pick-up

$6.99

$

In Stock, Qty 20+

0

7

Poulan 530047442

Strap-Ground

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530039198

Ignition Module

$56.99

$

In Stock, only 1 left!

0

9

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

10

Poulan 530057475

Assy-Wire Harness

$8.49

$

Usually ships in 3-10 days

0

11

Poulan 530037793

Foam- Air Filter

$4.99

$

In Stock, Qty 19

0

12

Poulan 530016101

Nut

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 530057702

Assy- Air Box

$7.99

$

In Stock, only 1 left!

0

14

Poulan 530035526

Grommet-Carb Adjust

$

$

Not available

15

Poulan 530054144

Seal-Carb Adapter

$

$

Not available

16

Poulan 530055698

Reflector-Heat

$3.99

$

In Stock, only 1 left!

0

17

Poulan 952030150

Spark Plug (RCJ-7Y)

$3.99

$

In Stock, Qty 20+

0

18

Poulan 530016136

Clip-High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530012552

Cylinder

$43.99

$

Usually ships in 3-10 days

0

20

Poulan 530049870

Backplate-Muffler

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 530069608

Gasket-Muffler(kit)

$8.99

$

In Stock, Qty 10

0

22

Poulan 530037813

Diffuser-Muffler

$4.99

$

In Stock, only 1 left!

0

23

Poulan 530036103

Screen-Spark

$

$

Not available

24

Poulan 530016132

Bolt-Muffler

$6.49

$

In Stock, Qty 10

0

25

Poulan 530047631

Grommet-Throttle Cable

$2.49

$

In Stock, only 2 left!

0

26

Poulan 545081885

Kit-Carburetor Walbro (WT-89)

Note: (Incl. Grommet)

$34.99

$

Usually ships in 3-10 days

0

27

Poulan 530069608

Gasket-Carb. (kit)

$8.99

$

In Stock, Qty 10

0

28

Poulan 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

29

Poulan 530049700

Carb. Adapter

$10.99

$

In Stock, only 1 left!

0

30

Poulan 530016187

Screw

$6.49

$

In Stock, only 2 left!

0

31

Poulan 530069608

Gasket- Adaptor(kit)

$8.99

$

In Stock, Qty 10

0

32

Poulan 530038729

Ring-Piston
(Superseded to 545160401)

$6.49

$

In Stock, only 2 left!

0

33

Poulan 530015697

Retainer-Piston Pin

$6.49

$

In Stock, Qty 6

0

34

Poulan 530069719

Kit-Piston

Note: (Incl. 32 & 33)

$

$

Not available

35

Poulan 530069608

Kit-Engine Gasket

Note: (Incl. 21, 27 & 31)

$8.99

$

In Stock, Qty 10

0

36

Poulan 530031135

Scrench
(Superseded to 530031163)

$9.99

$

In Stock, Qty 12

0

37

Poulan 530056363

Assy-Seal & Bearing

$18.99

$

In Stock, only 2 left!

0

38

Poulan 530037935

Cap-Crankcase

$10.99

$

Usually ships in 3-10 days

0

39

Poulan 530047062

Assy-Crankshaft
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

40

Poulan 530047207

Assy-Muffler
(Superseded to 530071904)

Note: (Incl . 20-24)

$20.99

$

Usually ships in 3-10 days

0

40

Poulan 545123583

Manuals, US

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

40

Poulan 545123702

Manuals, Russia

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

40

Poulan 545123747

Manuals, Non-CE 1

Note: Not Shown

$

$

Not available

40

Poulan 545123748

Manuals, Non-CE (Russia)

Note: Not Shown

$

$

Not available

40

Poulan 545003001

Decal-Warning (Russia)

Note: Not Shown

$

$

Not available

40

Poulan 530057757

Decal-Warning

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 530059229

Decal-Start- Inst.

Note: Not Shown

$

$

Not available

40

Poulan 530031163

Wrench-Bar (Russia unit only)

Note: Not Shown

$9.99

$

In Stock, Qty 12

0
