PP 258 TP - Poulan Pole Saw, Type 2 (2008-12) Cutting Equipment - Type 1-2 Parts Diagram

Pole Saw, Type 2

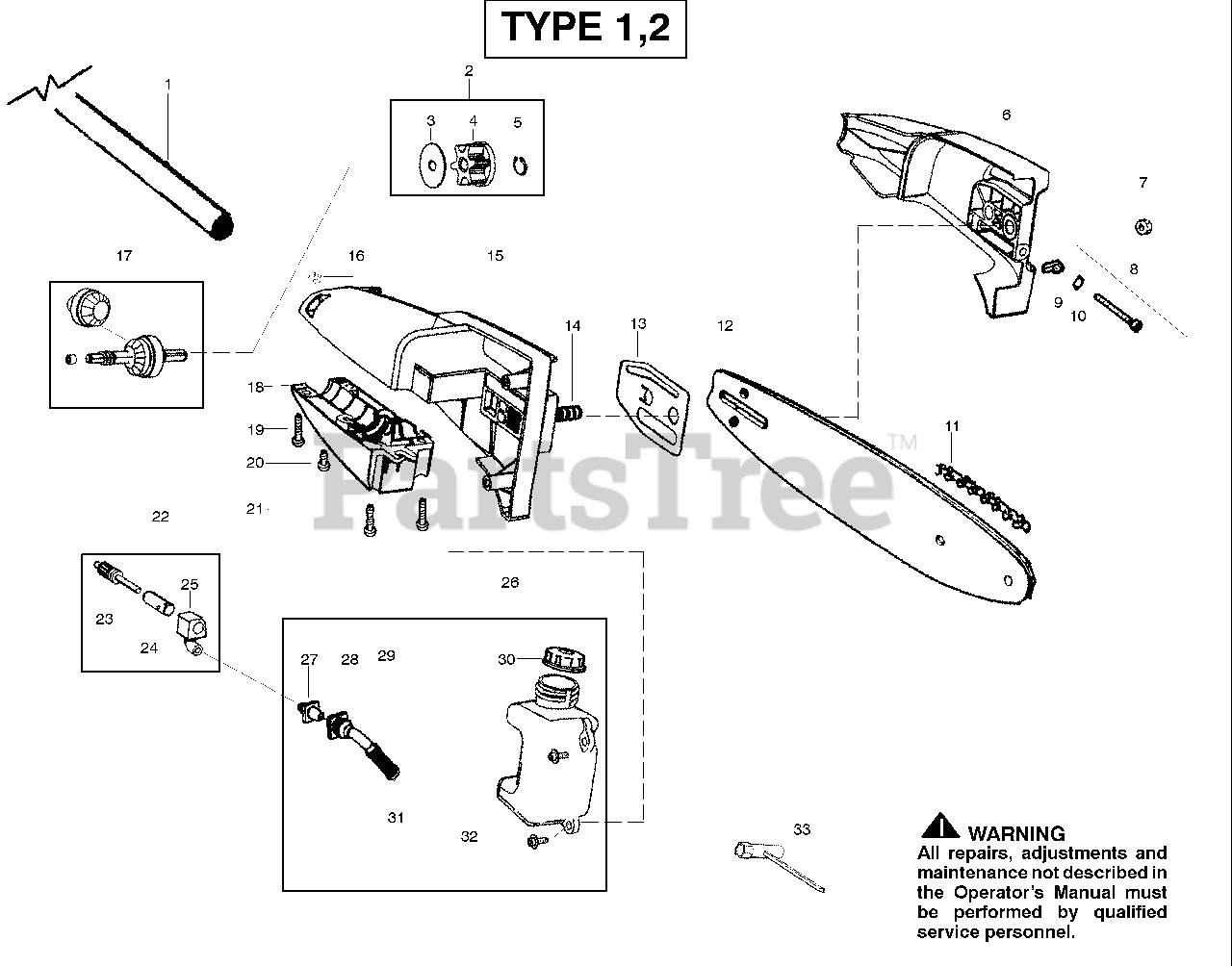

Cutting Equipment - Type 1-2 Parts Diagram

  • Title
1

Electrolux/AYP 545008090

Assy-Driveshaft

$48.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530071647

Kit-Sprocket Assy.

Note: (incl. 3,4,5)

$17.99

$

Usually ships in 3-10 days

0

$5.99

$

In Stock, only 2 left!

0

$9.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 530056563

Retainer-Sprocket

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 530057100

Assy-Bar Clamp

Note: (incl. #8)

$

$

Not available

7

Electrolux/AYP 530015917

Nut-Bar Mounting

$3.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 530069611

Kit-Bar Adjust

Note: (incl. 9,10)

$9.49

$

In Stock, Qty 9

0

9

Electrolux/AYP 530015826

Pin-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 530038593

Retainer-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 952051549

Accy.-Chain-8"
(Superseded to 581562501)

$18.99

$

In Stock, only 2 left!

0

$

$

Not available

13

Electrolux/AYP 530056523

Plate-Bar pad

$4.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 2 left!

0

15

Electrolux/AYP 530056513

Hsg.-Upper

Note: (incl. #14)

$

$

Not available

$4.99

$

In Stock, only 4 left!

0

17

Electrolux/AYP 530071646

Kit-Gear Assy

$37.99

$

Usually ships in 3-10 days

0

18

$

$

Not available

$6.49

$

In Stock, only 3 left!

0

20

Electrolux/AYP 530015805

Screw-Align
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

$6.49

$

In Stock, only 3 left!

0

22

Electrolux/AYP 530071645

Kit-Oil Assy

Note: (incl. 23,24,25)

$26.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 530053764

Assy-Gear Plunger

$9.99

$

Usually ships in 3-10 days

0

$

$

Not available

$10.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 530056528

Assy-Oil Tank
(Superseded to 530150266)

Note: (incl. 27,28,29,30,31)

$26.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 530056524

Fitting-Oil Line

$4.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 530021160

Intake-Oil Line

$7.49

$

In Stock, only 1 left!

0

29

Electrolux/AYP 530037821

Filter-Oil
(Superseded to 530056533)

$6.49

$

In Stock, only 2 left!

0

30

Electrolux/AYP 530053072

Cap-Oil
(Superseded to 530150552)

$6.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530030189

Plug-Oil Filter
(Superseded to 530056533)

$6.49

$

In Stock, only 2 left!

0

$6.49

$

Usually ships in 3-10 days

0

33

$9.99

$

In Stock, Qty 12

0
